SOLD INDIVIDUALLY
GIVE YOUR ROOM THE SOUND IT DESERVES, WITH THE STUDIO RANGES BIGGEST IN-WALL SPEAKER
Just add music. Or movies, for that matter. Whatever youre listening to, the S4-W80 in-wall speaker from Dynaudios Custom Architectural Studio range delivers all the accuracy and refinement of the smaller S4-W65, and turns it up a notch.
Offering a bolder, even more authoritative sound, the S4-W80 makes easy work of bigger rooms. Thats thanks to its larger 20cm mid/bass driver, which like the rest of the Custom Studio range is matched with Dynaudios iconic 28mm soft-dome tweeter for a treble that sings.
Getting custom audio into your home shouldnt be hard, and Dynaudios specially designed easy-mount frames can be installed quickly and simply during any building or renovation process.
Not planning on tearing down your walls any time soon? The frames can also be retrofitted into the majority of existing wall cavities for fuss-free installation.
A HIGH-FIDELITY SPEAKER WITH ZERO FOOTPRINT

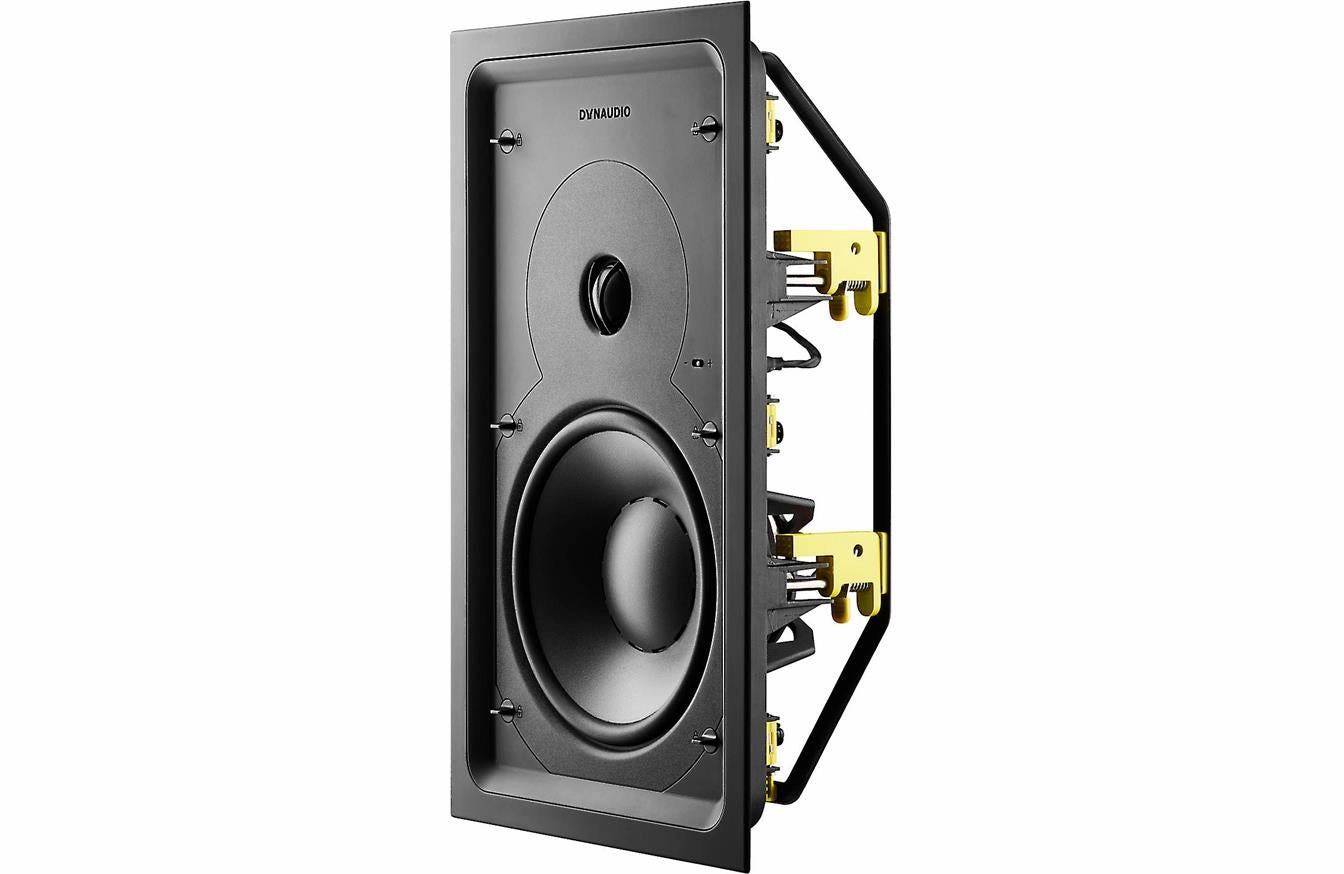

Dynaudio creates a suite of superb speakers for homes, cars, and recording studios. They alsoapplytheir design expertise to in-wallspeakers as well, like theS4-W80. This high-fidelity speaker delivers full-bodied, natural sound without taking up anyfloor space in your room.
TRIED AND TRUE DRIVER TECHNOLOGY

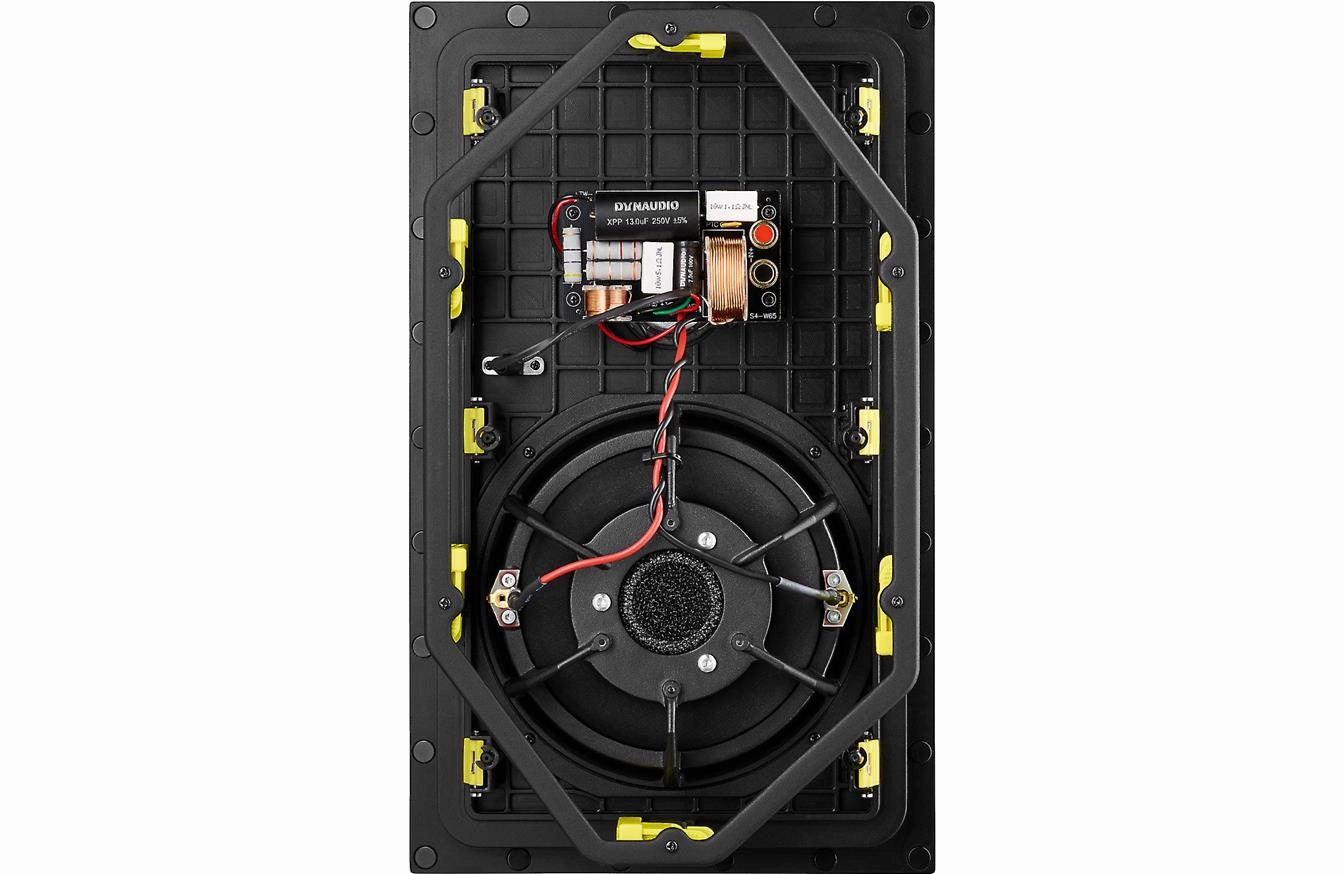

TheS4-W80's 8"wooferuses Dynaudio'sMagnesium Silicate Polymer (MSP) cone material, which combines low mass andhigh rigidity.This design allows the woofers to respond quickly and accurately to the dynamic peaks in the music.
TheMSP cone is molded in one geometrically perfect piece, which helps to optimize sound dispersion. It also eliminates the need for a separate dust cap, further enhancing the cone's structural integrity.
TheS4-W80 uses a 1-1/8" soft-dome tweeter for smooth, natural highs.
IDEAL FOR MUSIC AND MOVIES

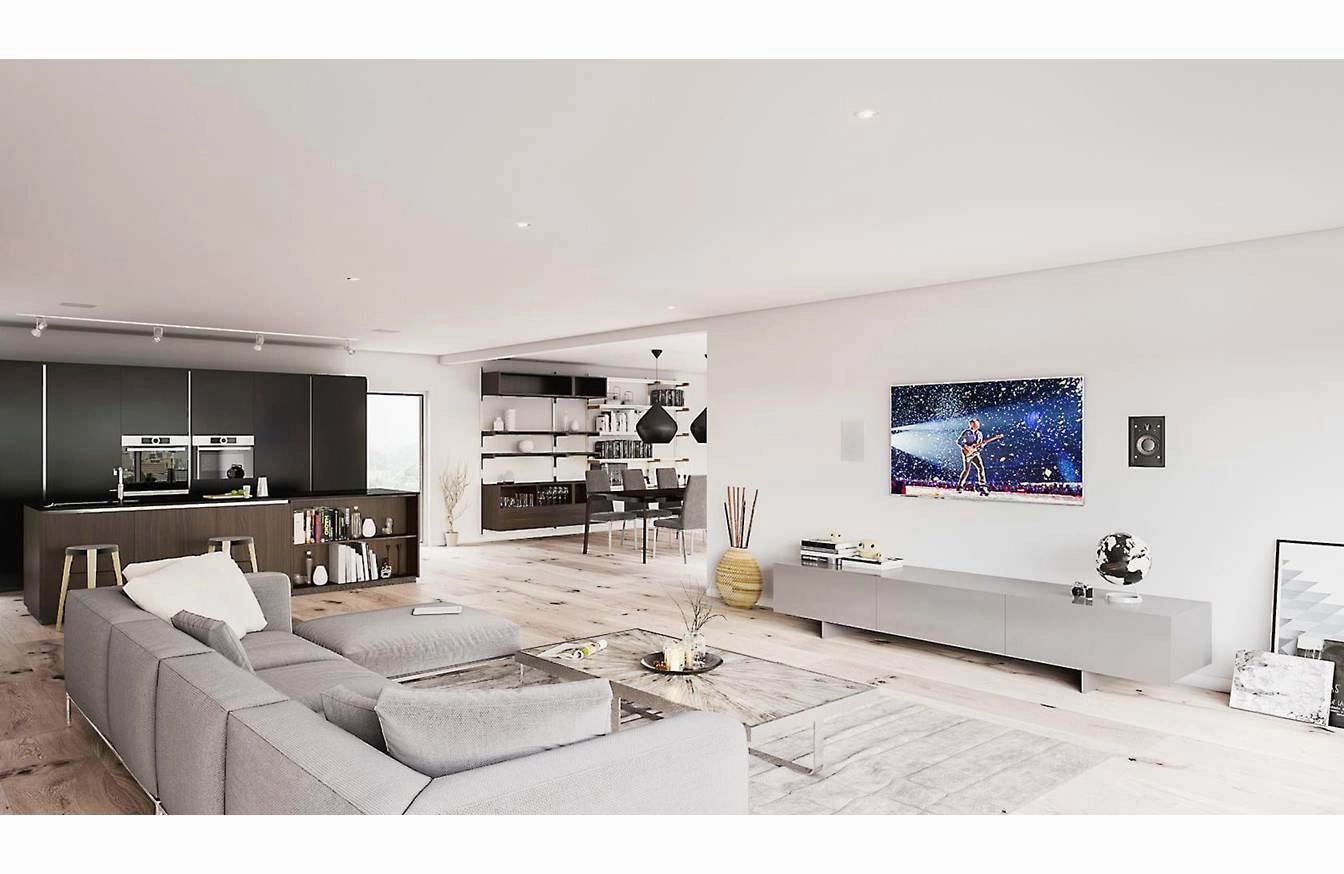

The S4-W80isa great choice for a high-endin-wall stereo system. Or you can use three of these speakers across the front channels of yourhome theater system, since they can be installed horizontally or vertically. You'll enjoy rich, full-bodied sound with all of your favorite entertainment.
FEATURES:
- ideal for a high-end in-wall music or home theater system
- 1-1/8" soft dome tweeter
- three-position tweeter level control cuts or boosts high-frequency output to suit your room's acoustics
- 8" MSP (Magnesium Silicate Polymer) cone woofer
- frequency response: 45-20,000 Hz (3dB)
- sensitivity: 89 dB
- impedance: 8 ohms
- recommended amplifier power: 100 watts
- unobtrusive frame and low-profile grille for discreet installation

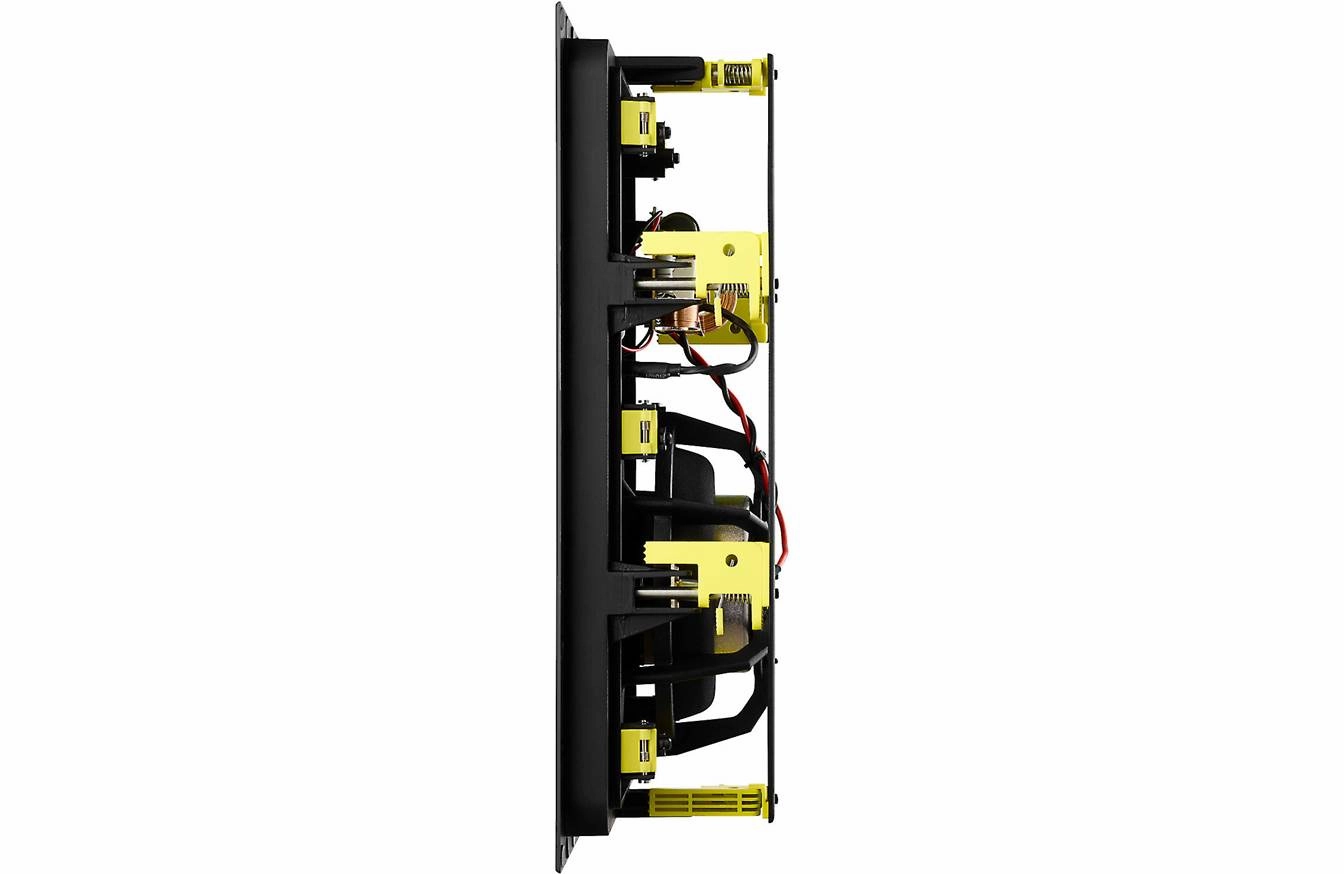

- uniquely designed baffle latches offer quick and simple tool-free mounting

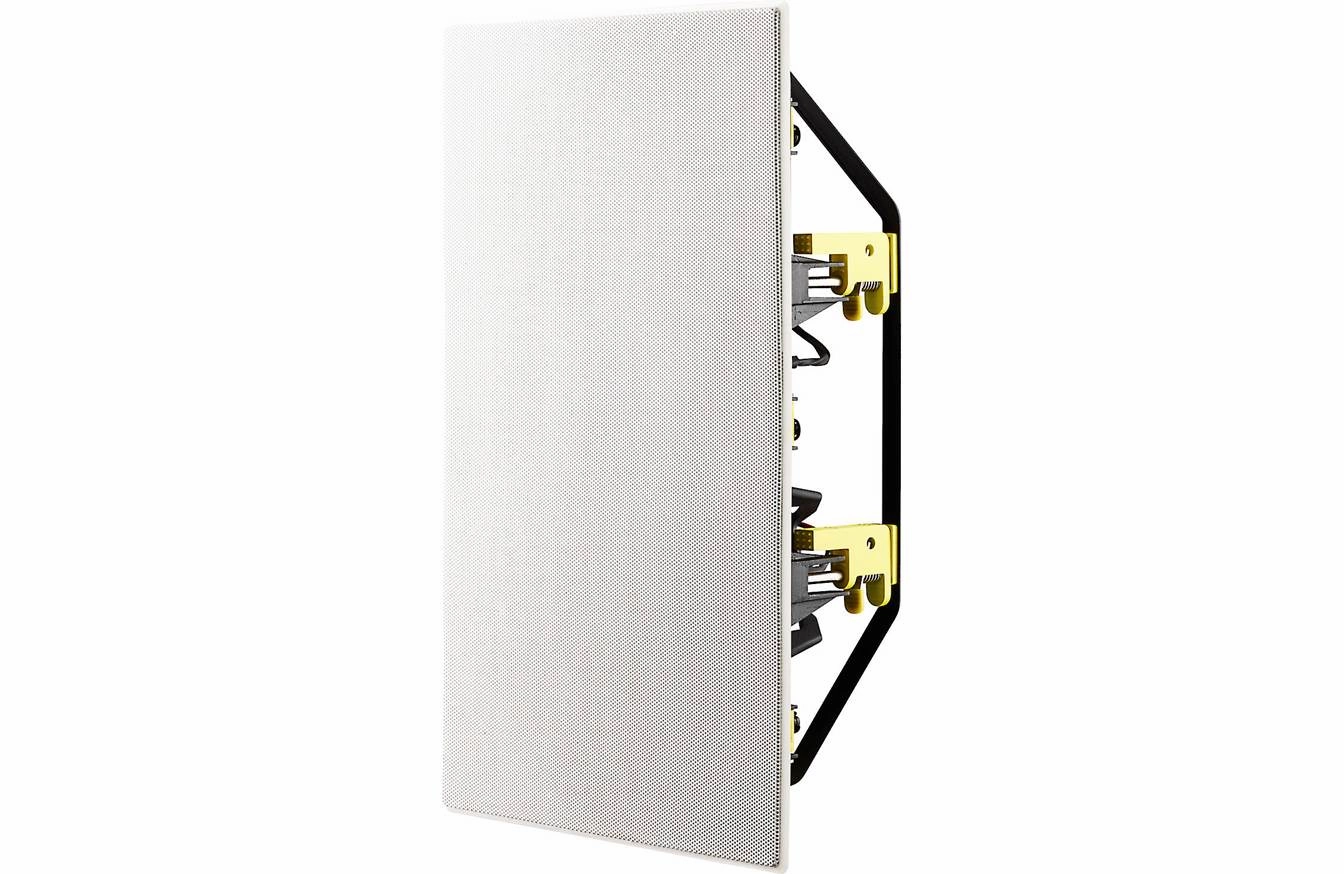

- paintable magnetic steel grille
- cutout dimensions: 8-1/4"W x 14-3/8"H
- overall dimensions: 9-3/8"W x 15-7/16"H x 3-15/16"D
- designed, engineered, and assembled in Denmark
SPECIFICATIONS:
Type: 2-way in-wall Tweeter: 28mm (1in) Mid/bass: 200mm (8in) Frequency response (3dB): 45Hz20kHz Impedance (nominal/minimum): 8 / 5 Sensitivity: 89.0dB Rated power: 100W Long term power: 140W Tweeter level options: -3dB, 0dB 3dB Dimensions/Depth: 236.5 x 391.5mm / 99mm 9 5/16x 15 3/8in / 3 15/16in Cut-out dimensions: 215x 370mm 8 1/4 x 14 9/16in Grille material: Painted steel Grille options: Rectangular Grille attachment: Magnetic Grille finish: White (paintable) Certifications: CE Environmental: RoHS
