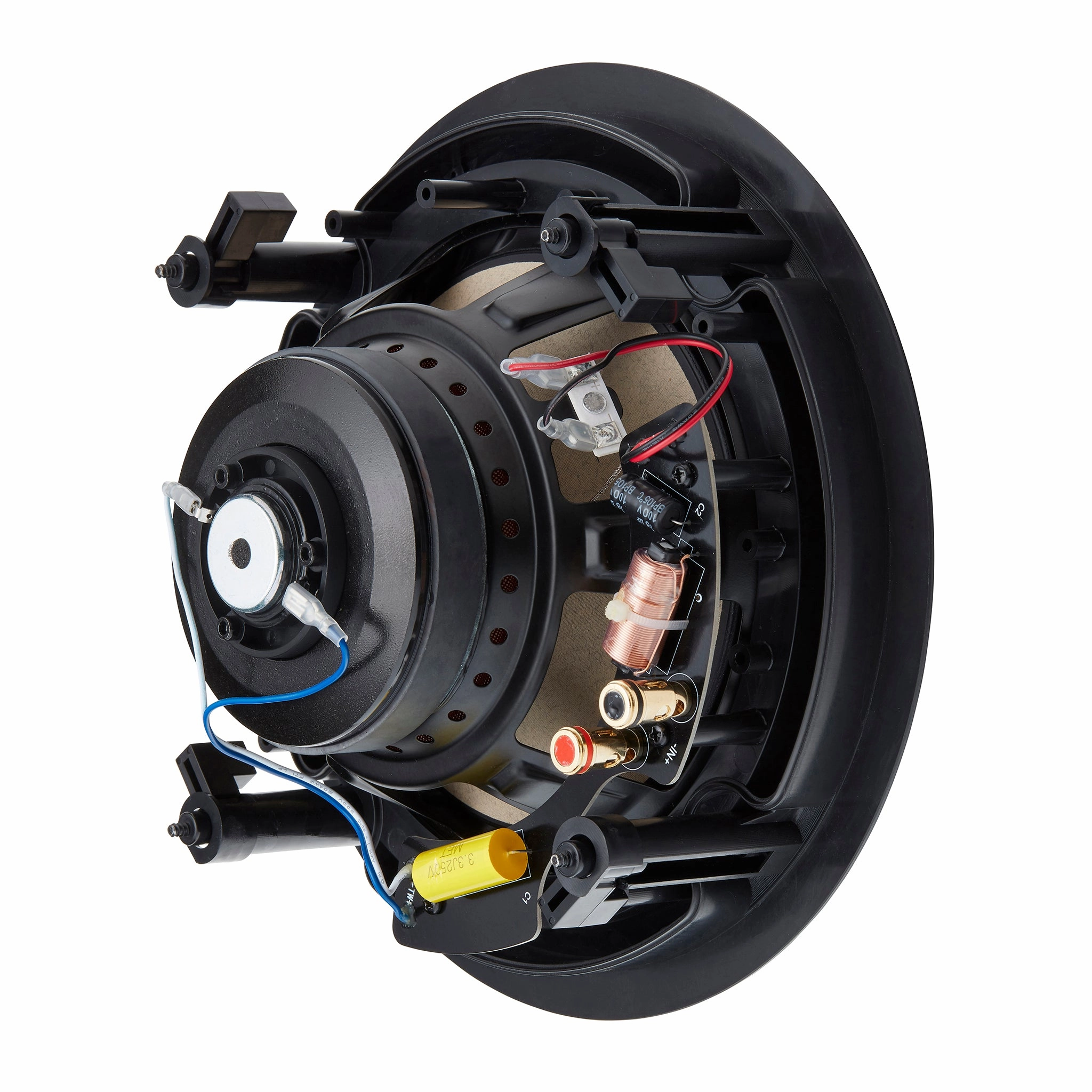

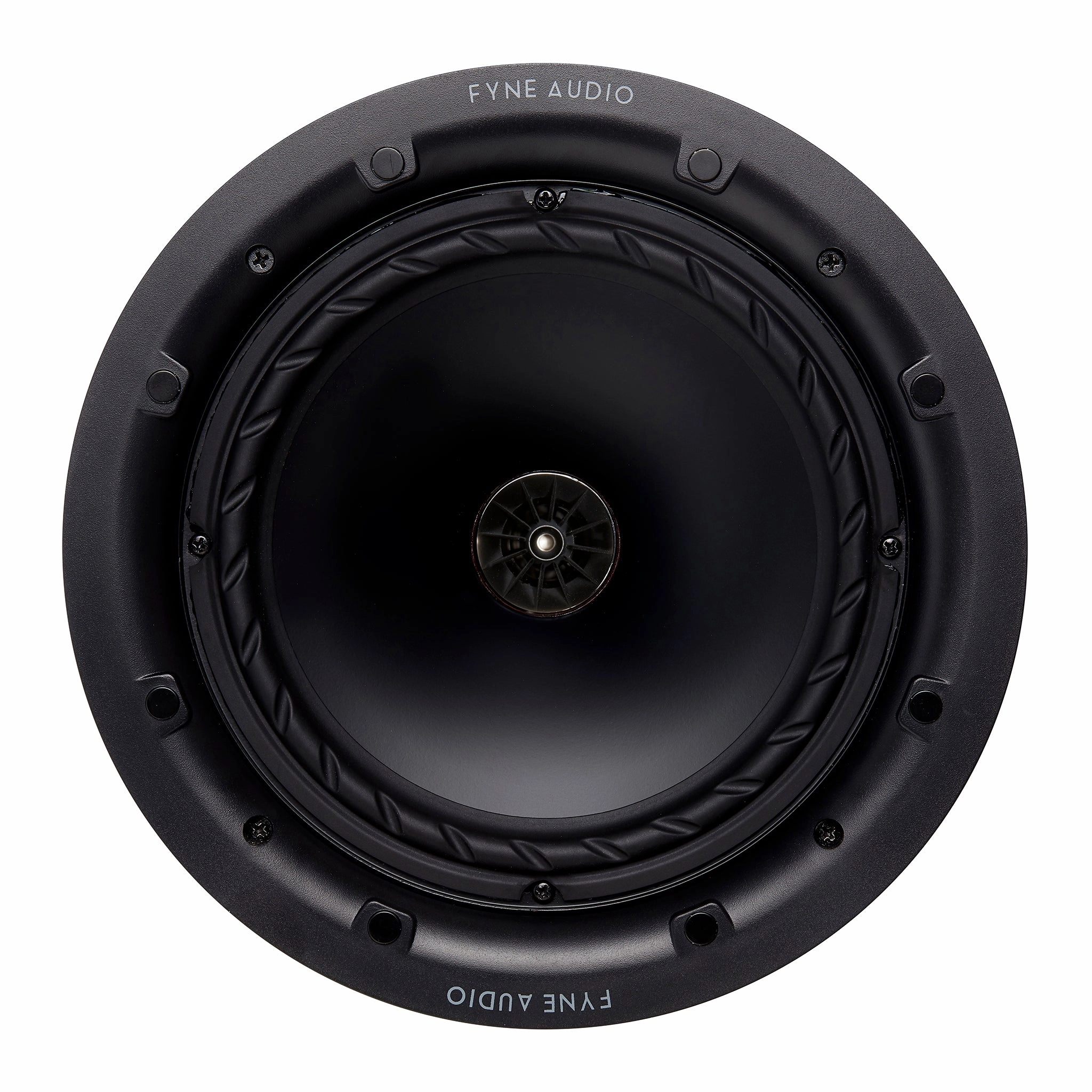

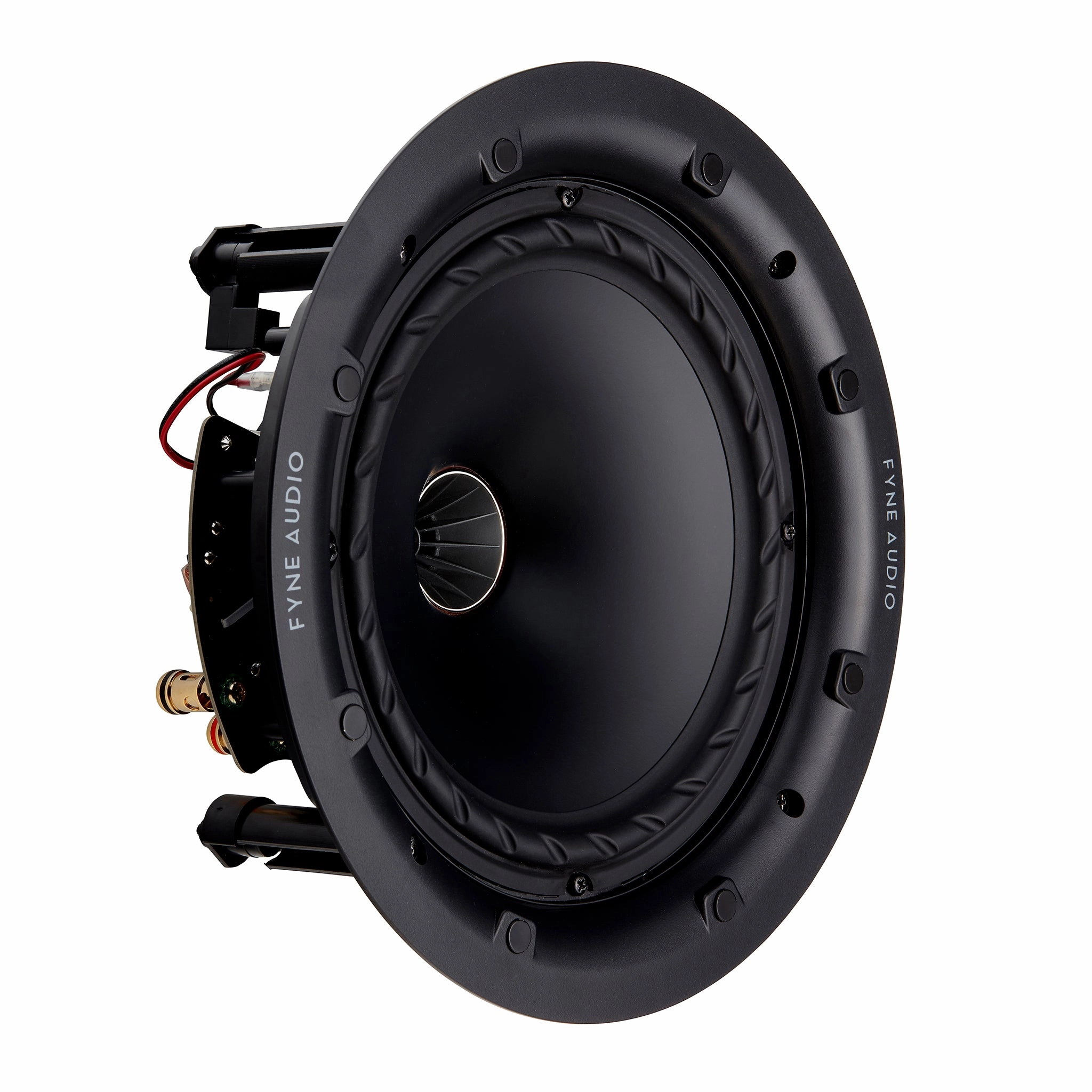

Fyne Audio FA502iC 8" IsoFlare In-Ceiling Loudspeaker (each)

With an 8" IsoFlare driver and 25 mm titanium dome compression tweeter

Delivering all the detail, impact, and class-leading imaging of Fynes F500 series loudspeakers, the FA502iC brings true audiophile performance to home install loudspeaker design. Built around the F500 series' prestigious 8 IsoFlare point source driver with infinite baffle-tuned crossover, the design offers high efficiency, high power handling, and a 360-degree isotropic dispersion pattern. The result is a rich, detailed sound with a wide soundstage and perfect time alignment across the frequency spectrum.

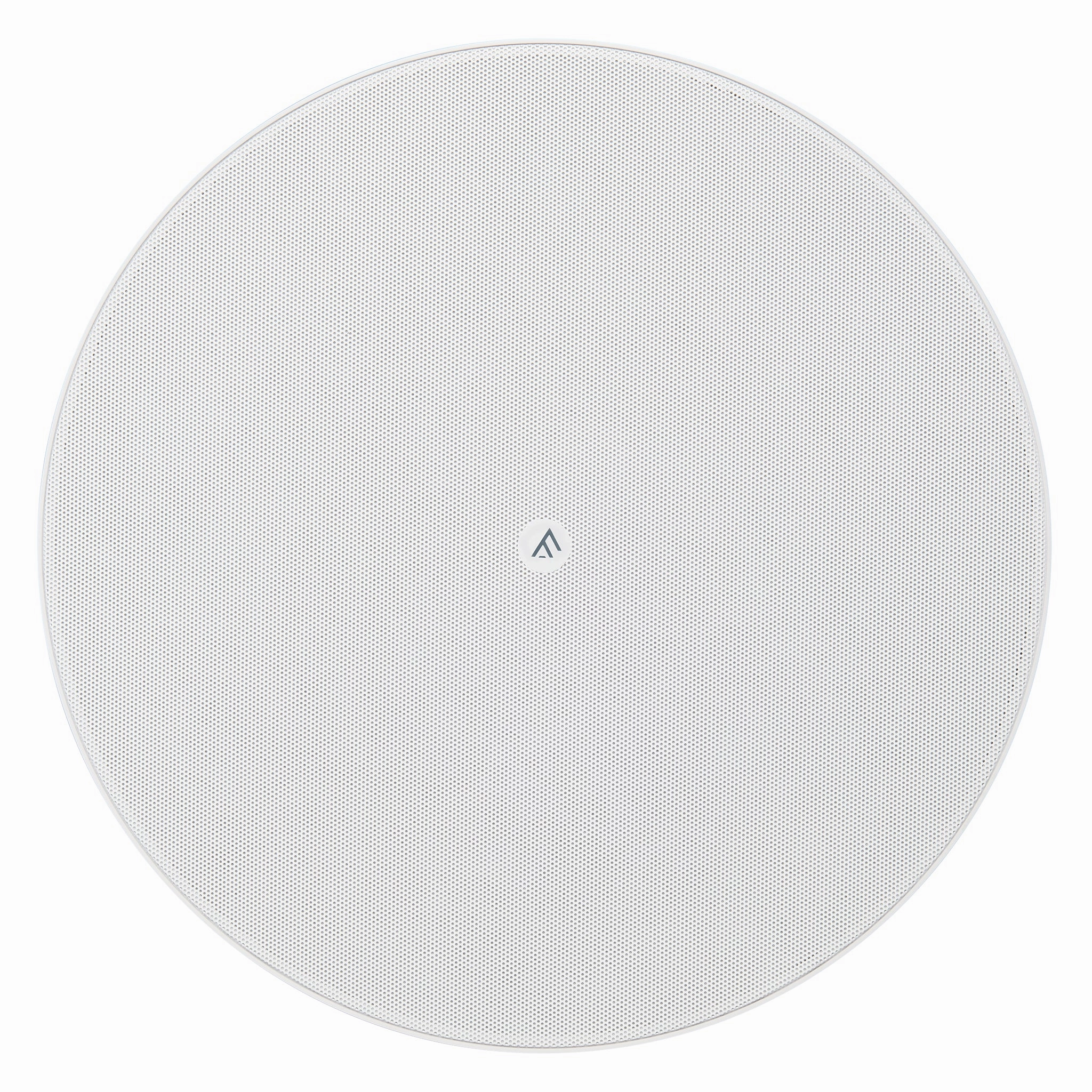

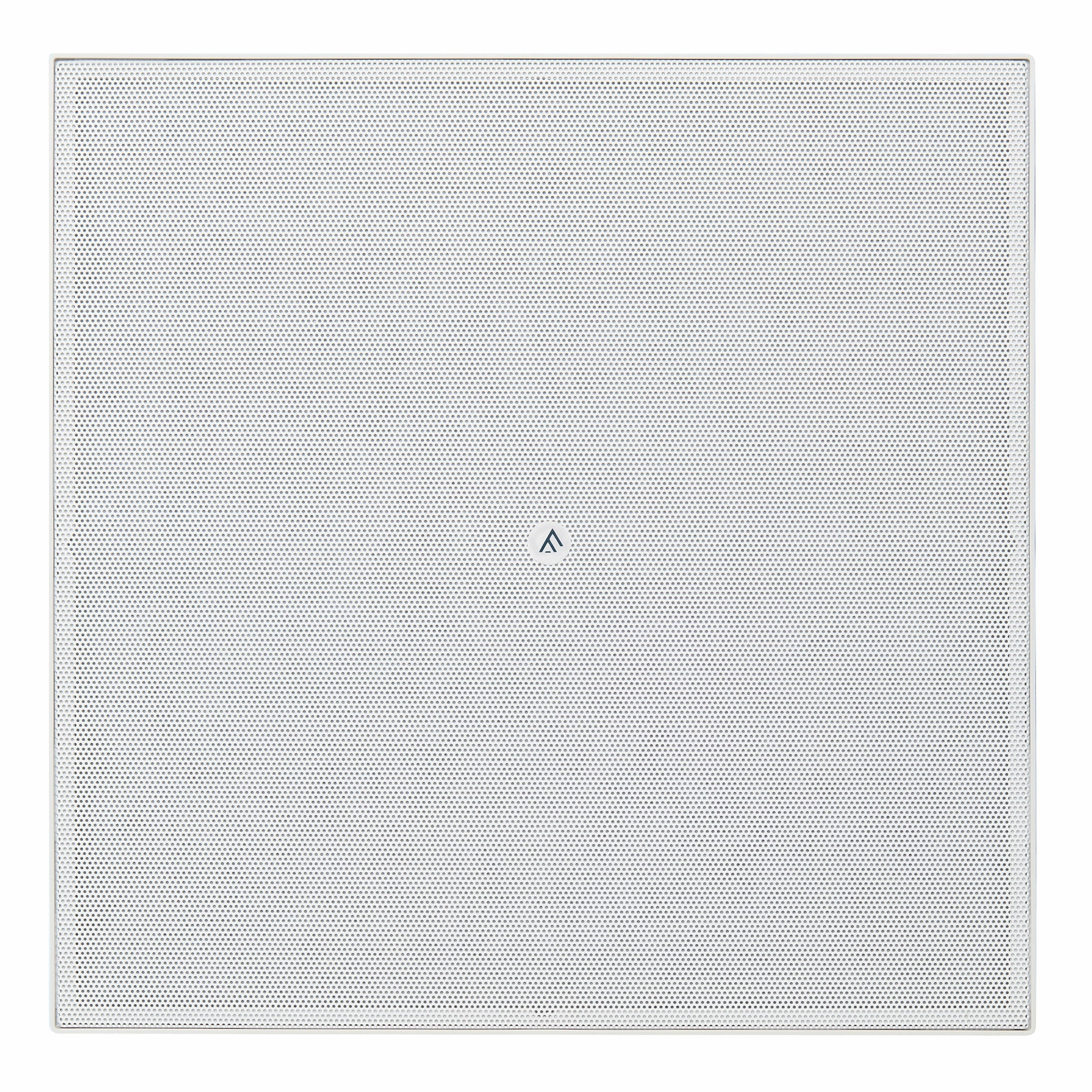

Ideal for in-ceiling or in-wall custom applications in the home, the chassis offers simple self-aligning clamps, spring clamp cable terminals and comes supplied with both round and square, fully paintable low-profile magnetic grilles. The grilles are further enhanced with an acoustic scrim cloth to ensure the FA502iC blends seamlessly into the home.

Specifications

Type: 2-way IsoFlare loudspeaker for in-ceiling or in-wall application

Sensitivity: 91 dB

Nominal Impedance: 8 Ohm

Frequency Response (-6 dB): 35 Hz-34 kHz

Drivers
Mid/Bass: 1 x 8" (200 mm) IsoFlare point source driver, multi-fiber
High: FyneFlute surround with 25 mm titanium dome compression

Crossover Frequency: 1.7 kHz

Crossover Type: Passive 2nd order low pass, 1st order high pass

Dimensions
Dia. x Depth: 10.6" x 4.8 (273 x 123 mm)
Grille (Round, Square): 11.1" (281 mm), 11.1" x 11.1 (281 x 281 mm)
Cut-Out Diameter: 9.8" (248 mm)
Depth behind Mounting Surface: 4.7 (120.5 mm)
Clamp Travel: 0.2" - 2 (5 - 50 mm)
Suggested Min. Vol.: 18 L

Weight: 5.5 lb.
