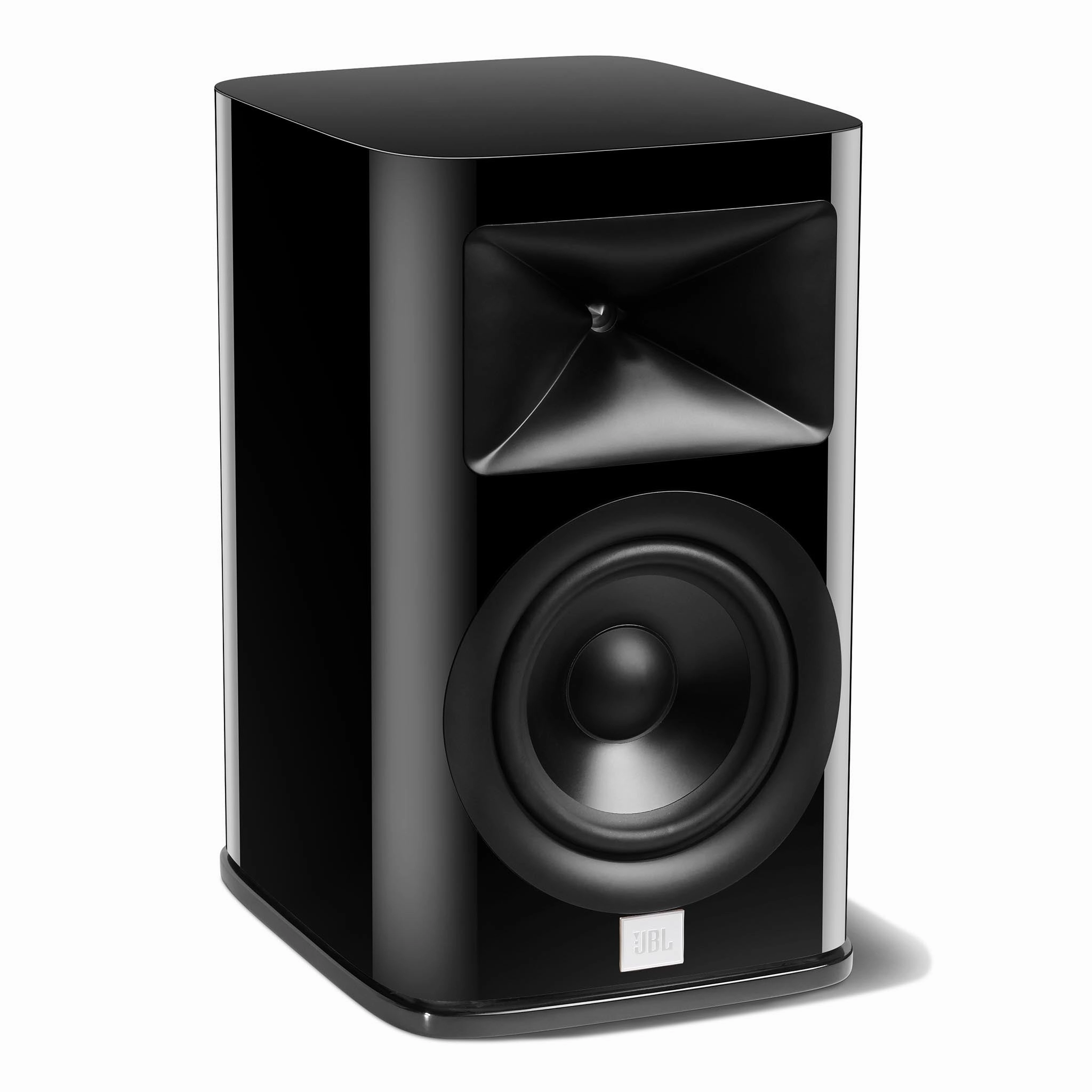

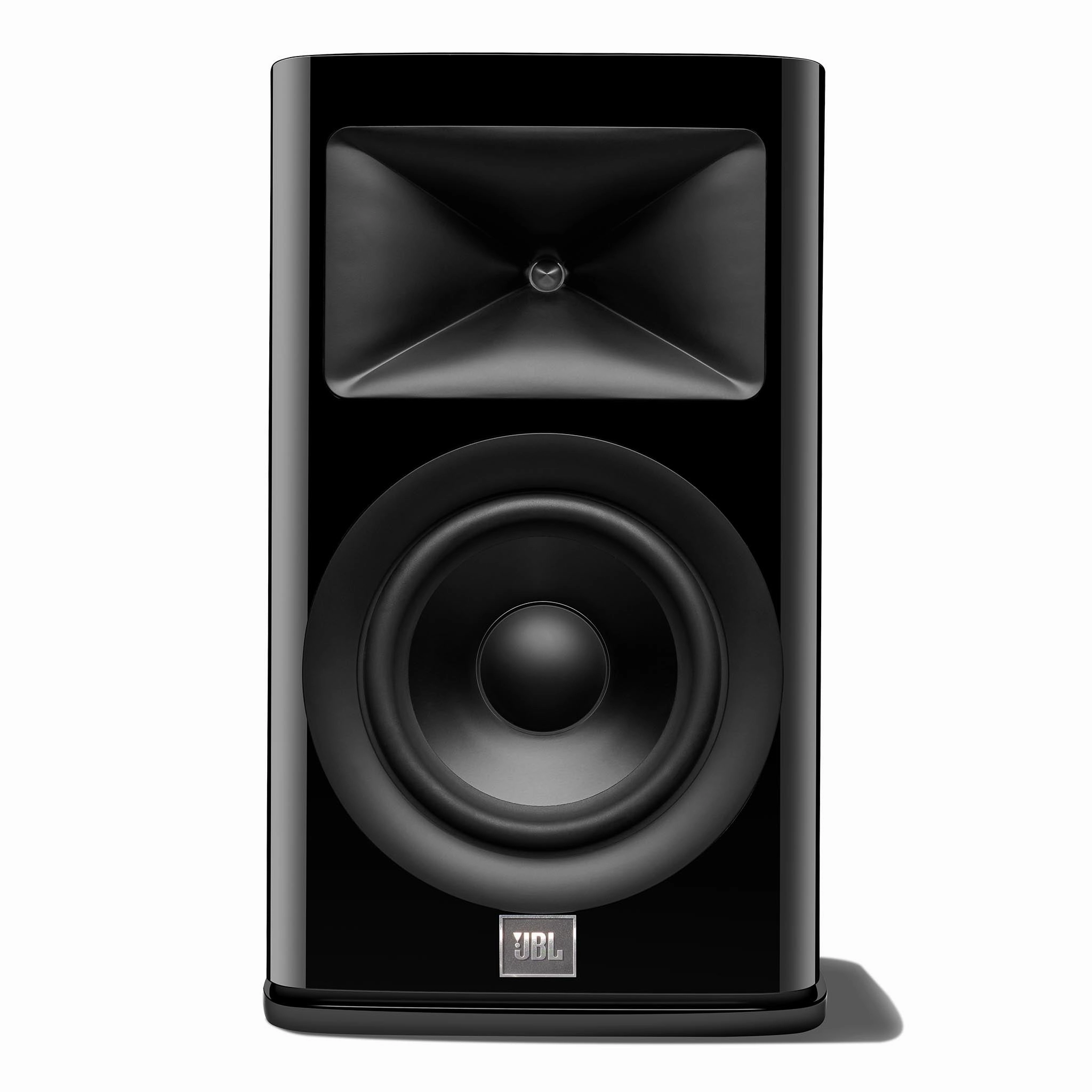

JBL HDI-1600 Bookshelf Loudspeaker
A two-way with rear-firing port, 6.5" woofer and 1" horn-loaded tweeter
Designed and engineered in JBLs world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI) waveguide technology, the patented 2410H-2 1-inch compression driver, and a 6.5-inch Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction.

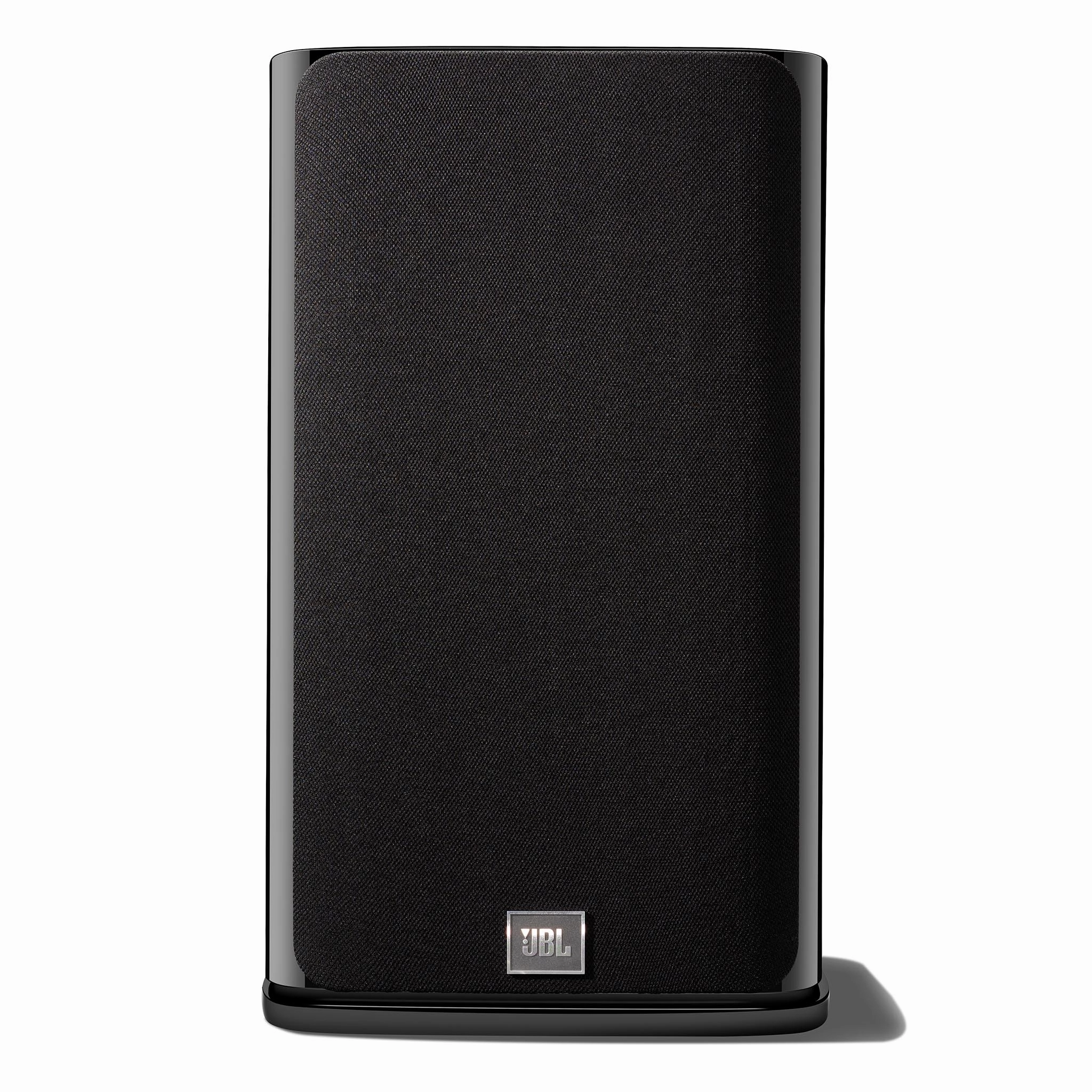

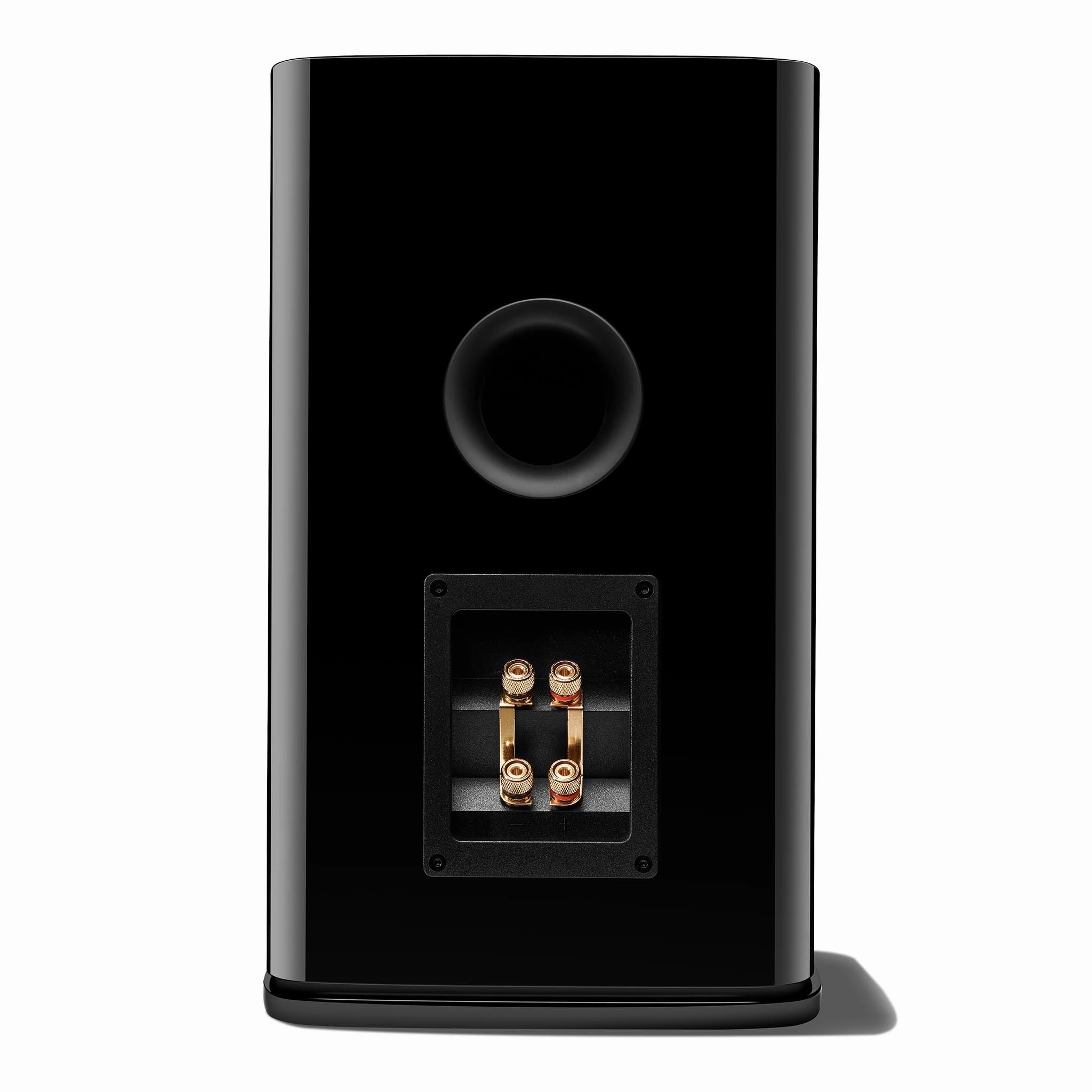

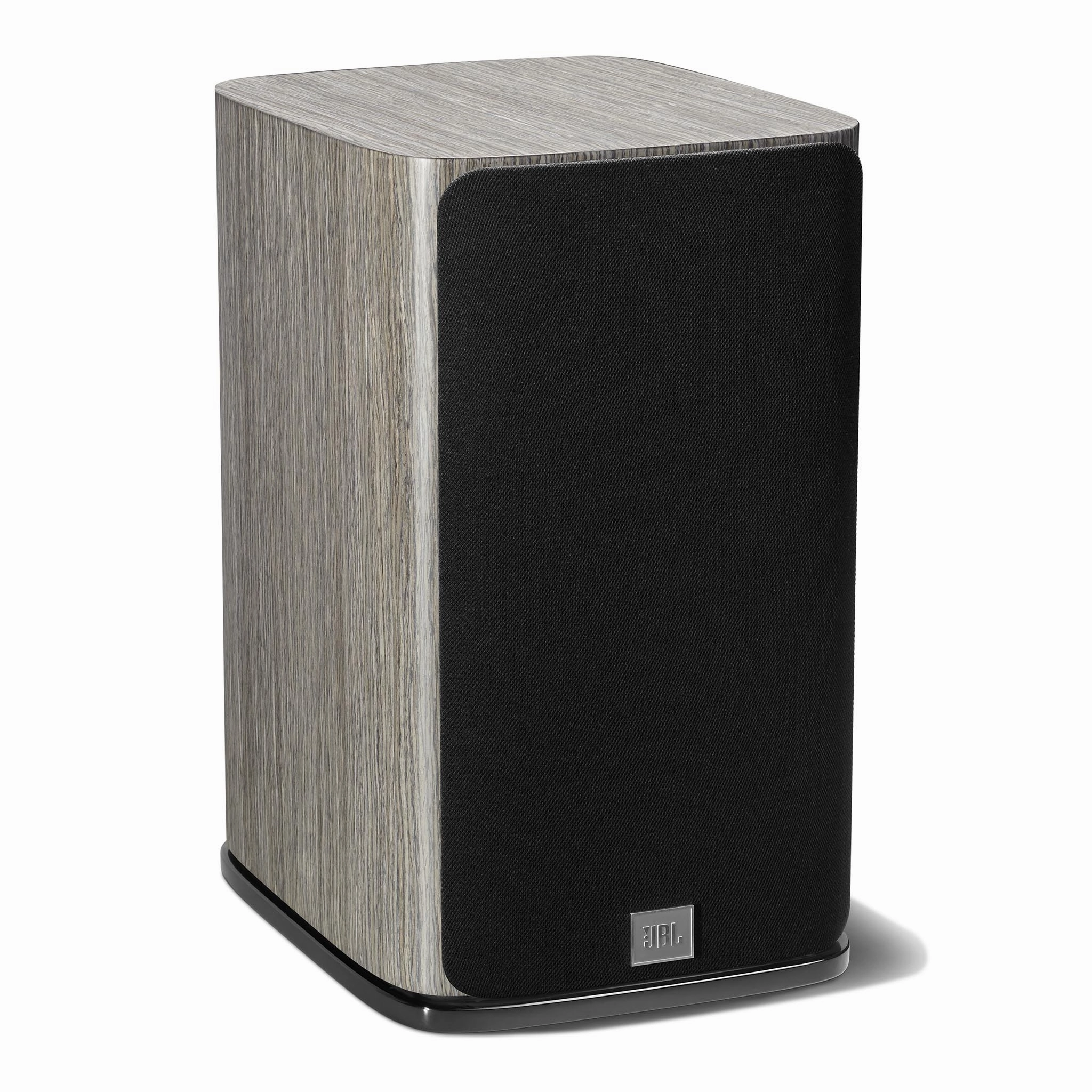

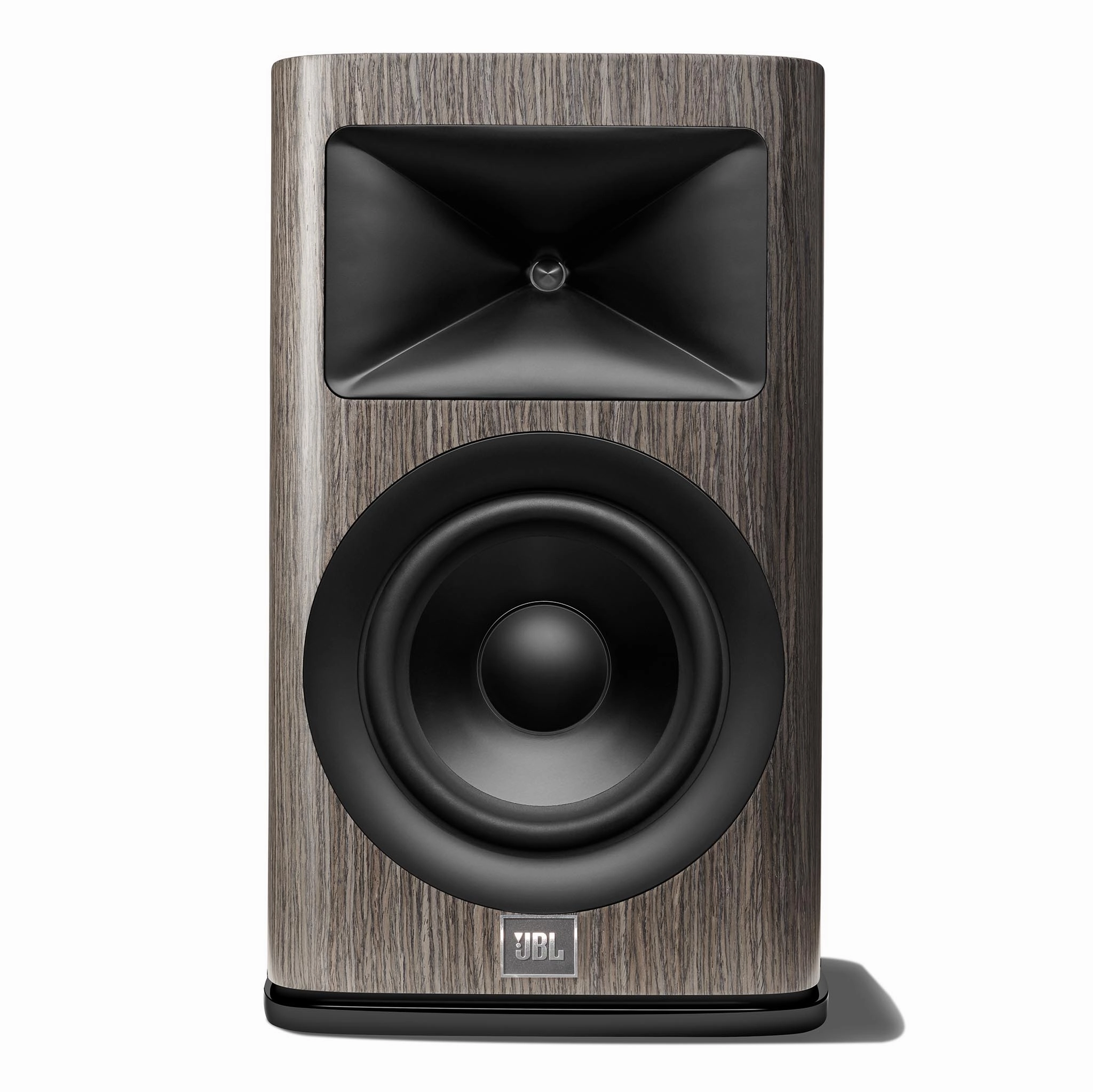

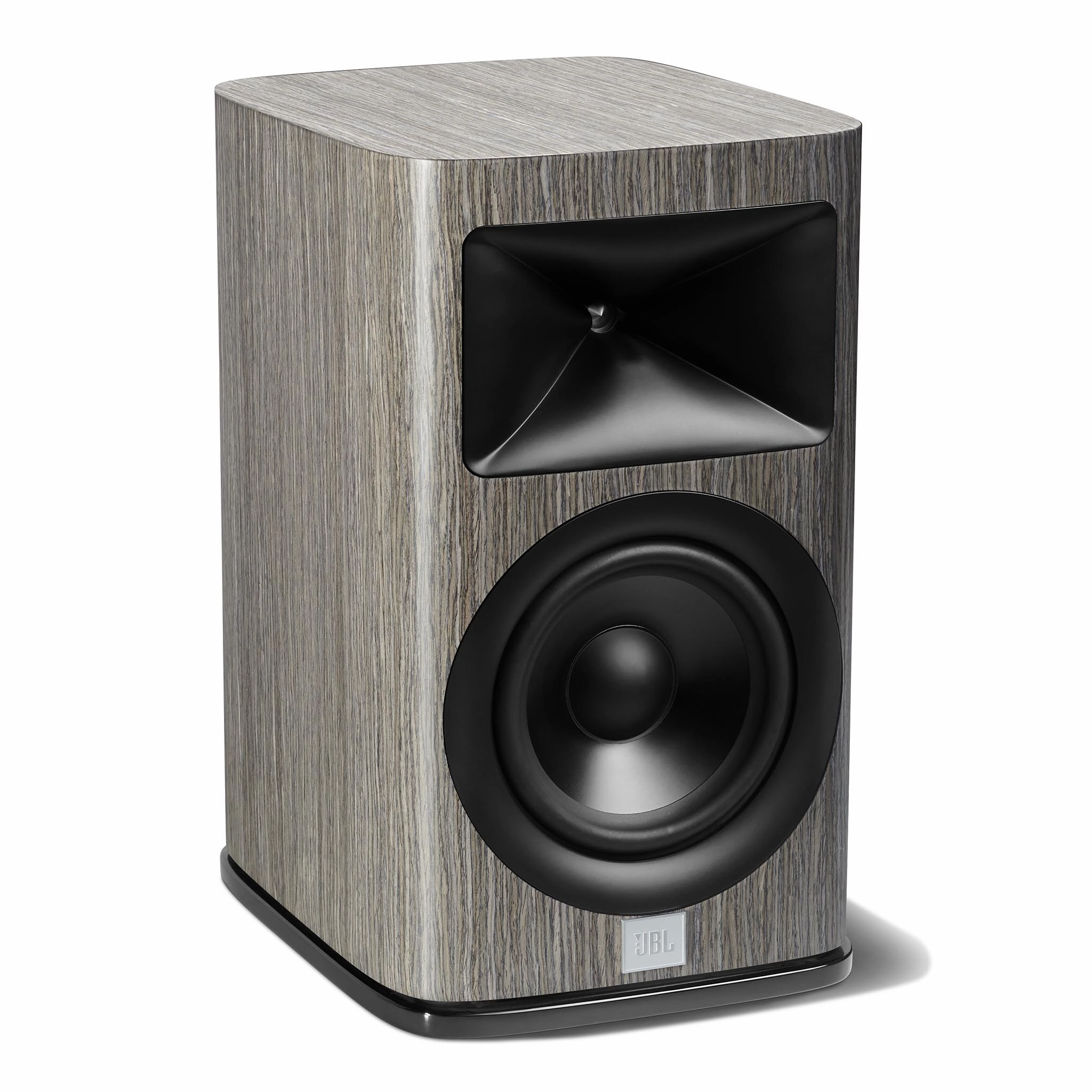

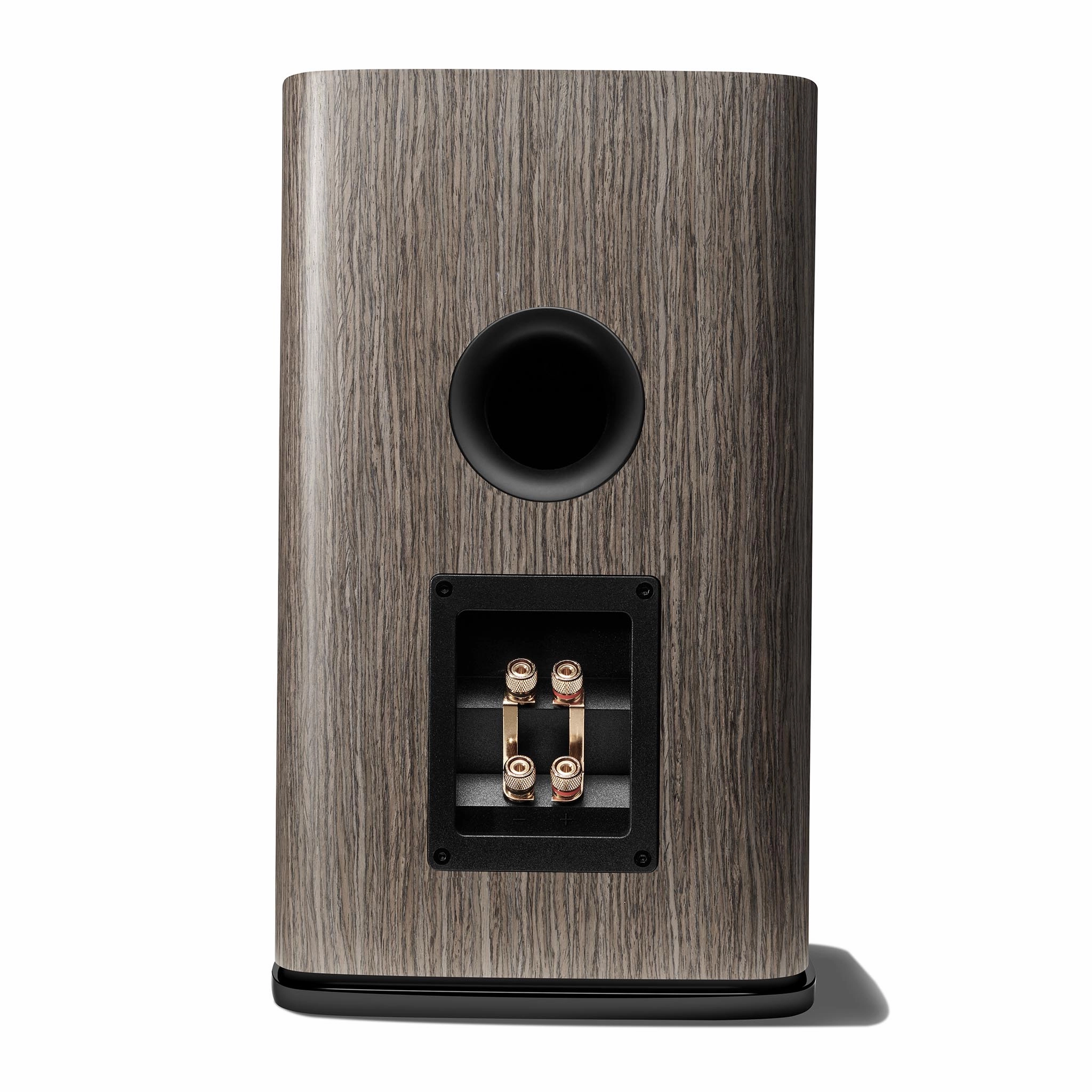

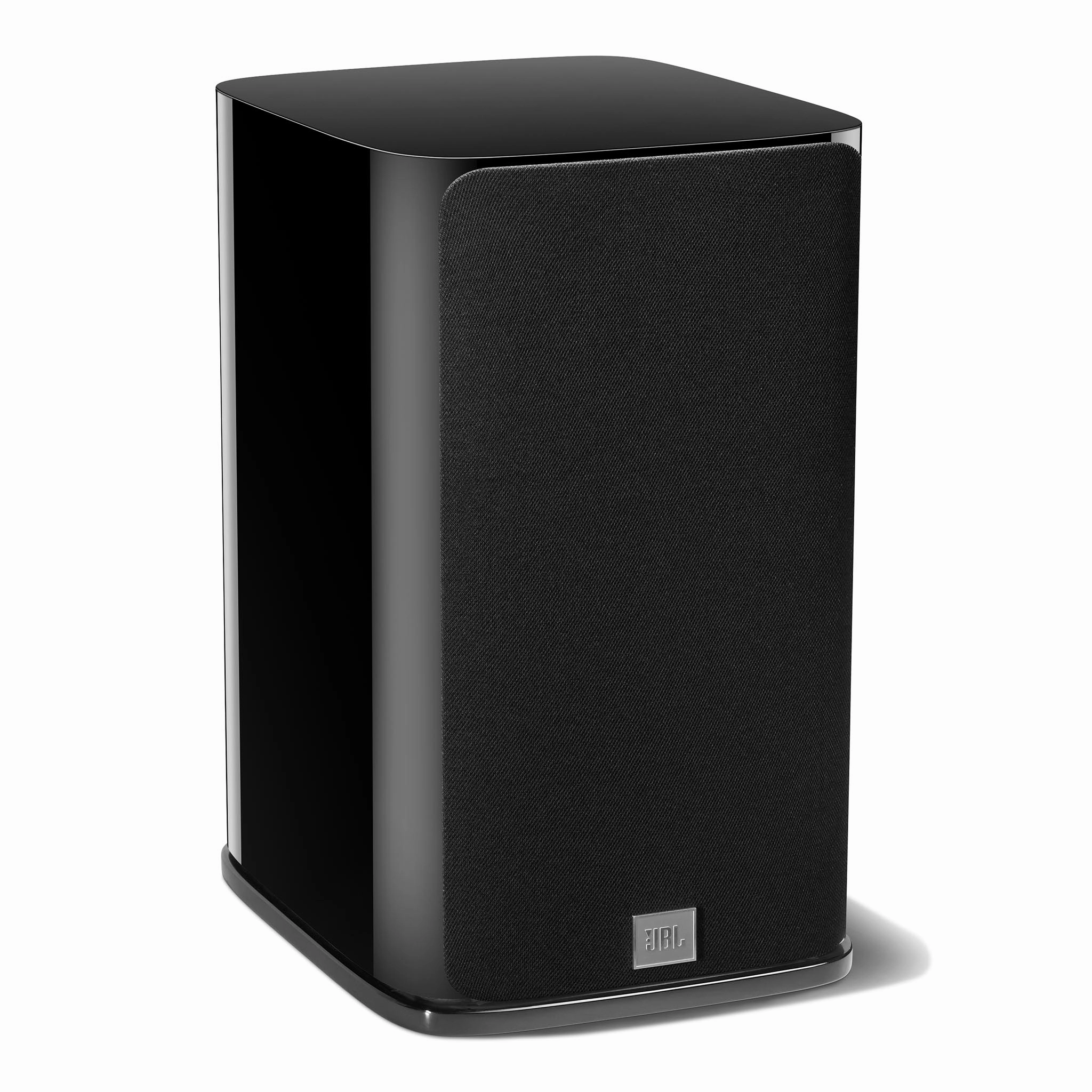

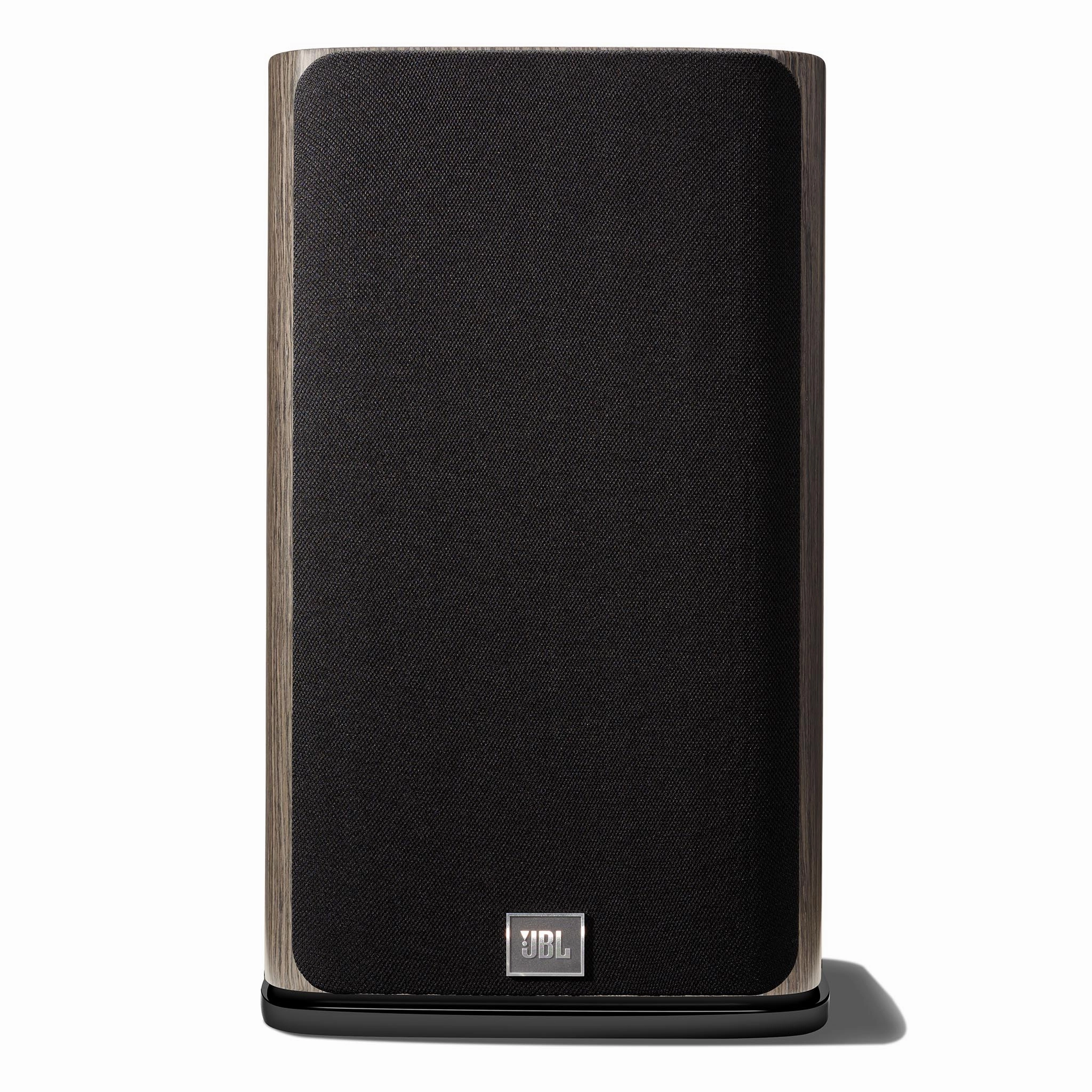

The HDI-1600 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the luxurious appearance.
Features
- Patented HDI (High-Definition Imaging) waveguide technology
- Patented 2410H-2 high-frequency compression driver
- 6.5-inch (165 mm) cast frame, Advanced Aluminum Matrix cone woofer with 1.5-inch voice coil
- Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer
Specifications
Enclosure: Bass-reflex design with rear-firing port
Drivers
HF: 1" (25 mm) Teonex compression driver
LF: 6.5" (165 mm) black Advanced Aluminum Matrix cone, cast frame woofer
Crossover Frequency: 1,900 Hz
Sensitivity: 85 dB
Nominal Impedance: 4 Ohm
Frequency Response (-6 dB): 40 Hz 30 kHz
Dimensions (HWD): 14.57 x 9.06 x 11.375 (370.0 x 230 x 288.9 mm)
Weight: 21.96 lb. (9.96 kg)
