JBL HDI-4500 Center Channel Loudspeaker

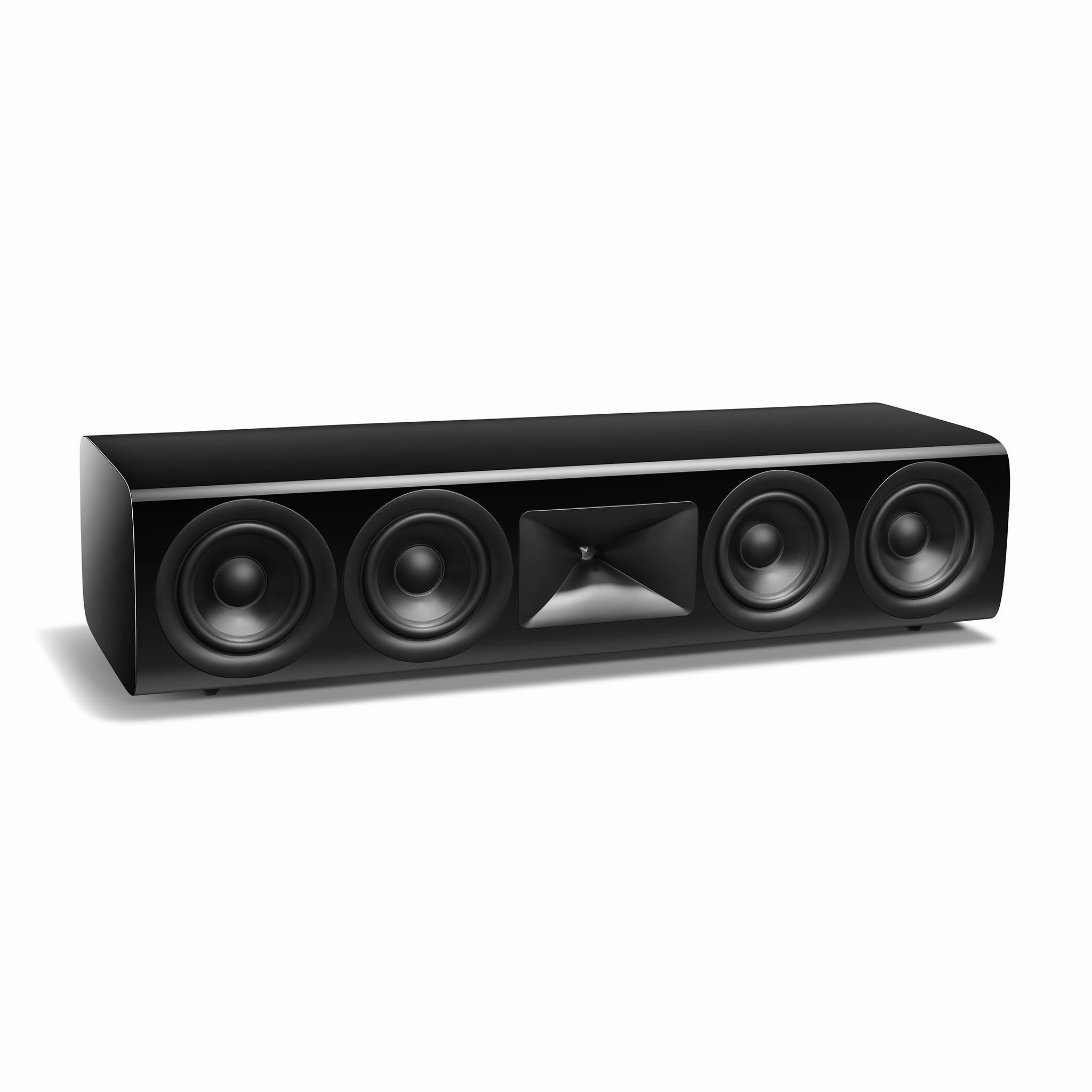

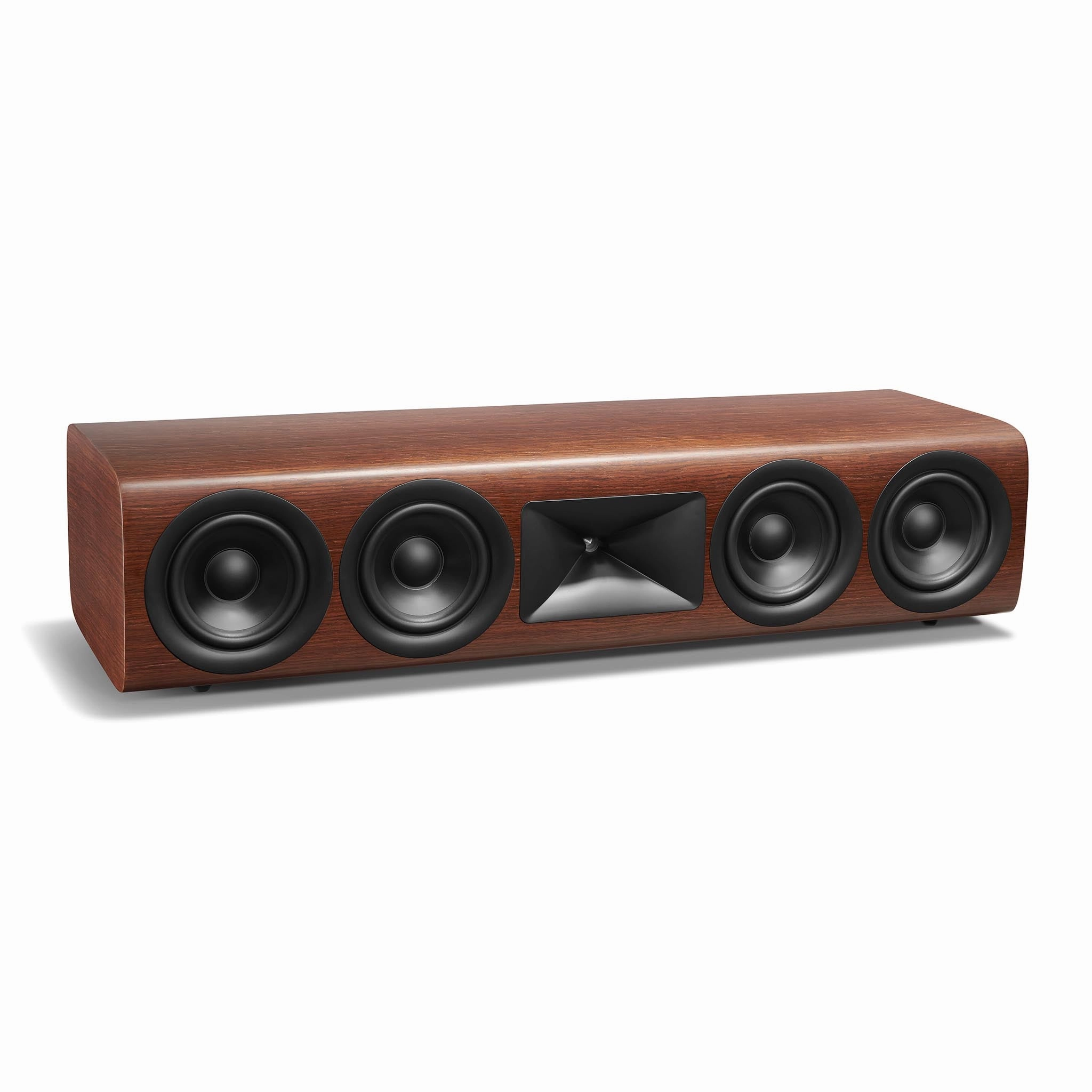

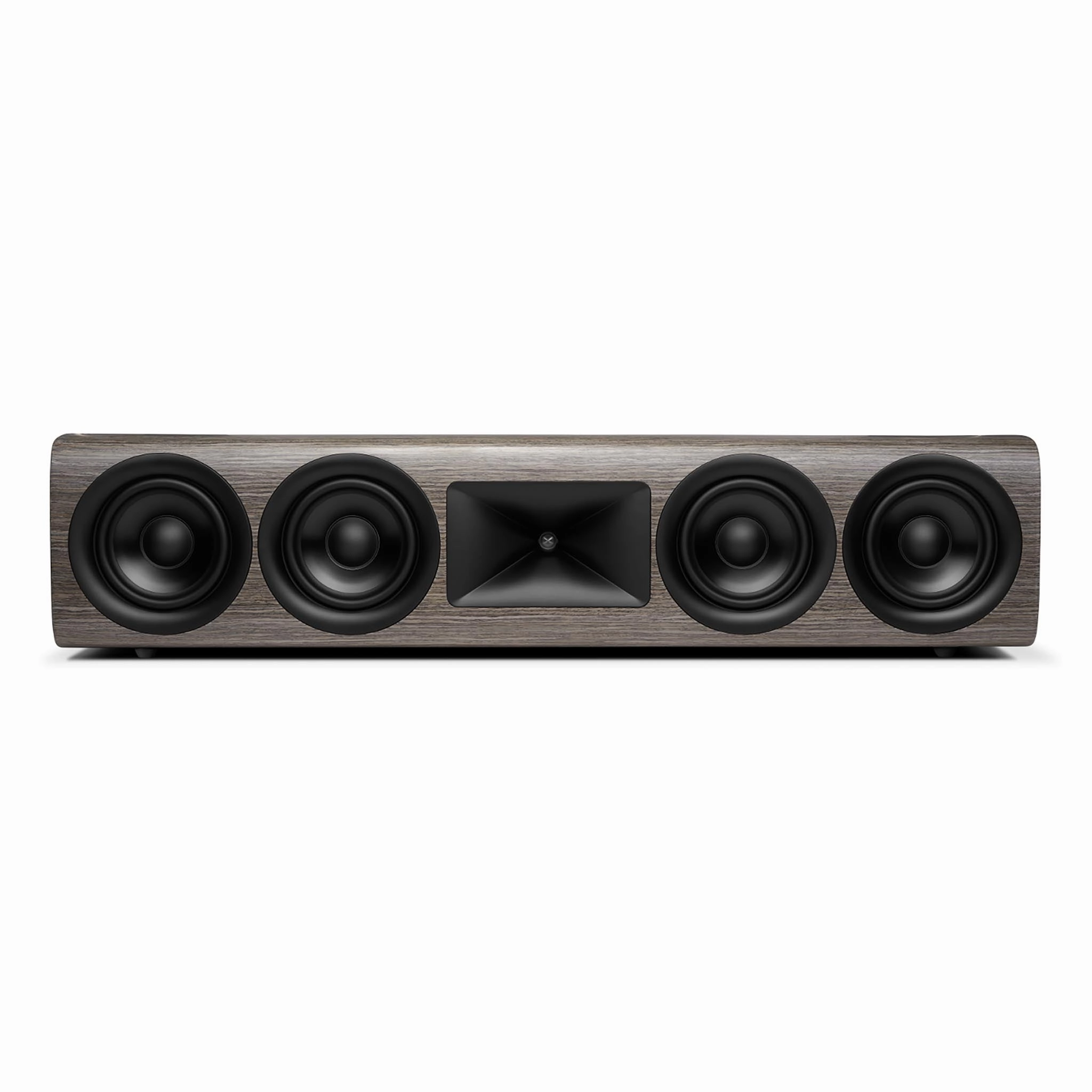

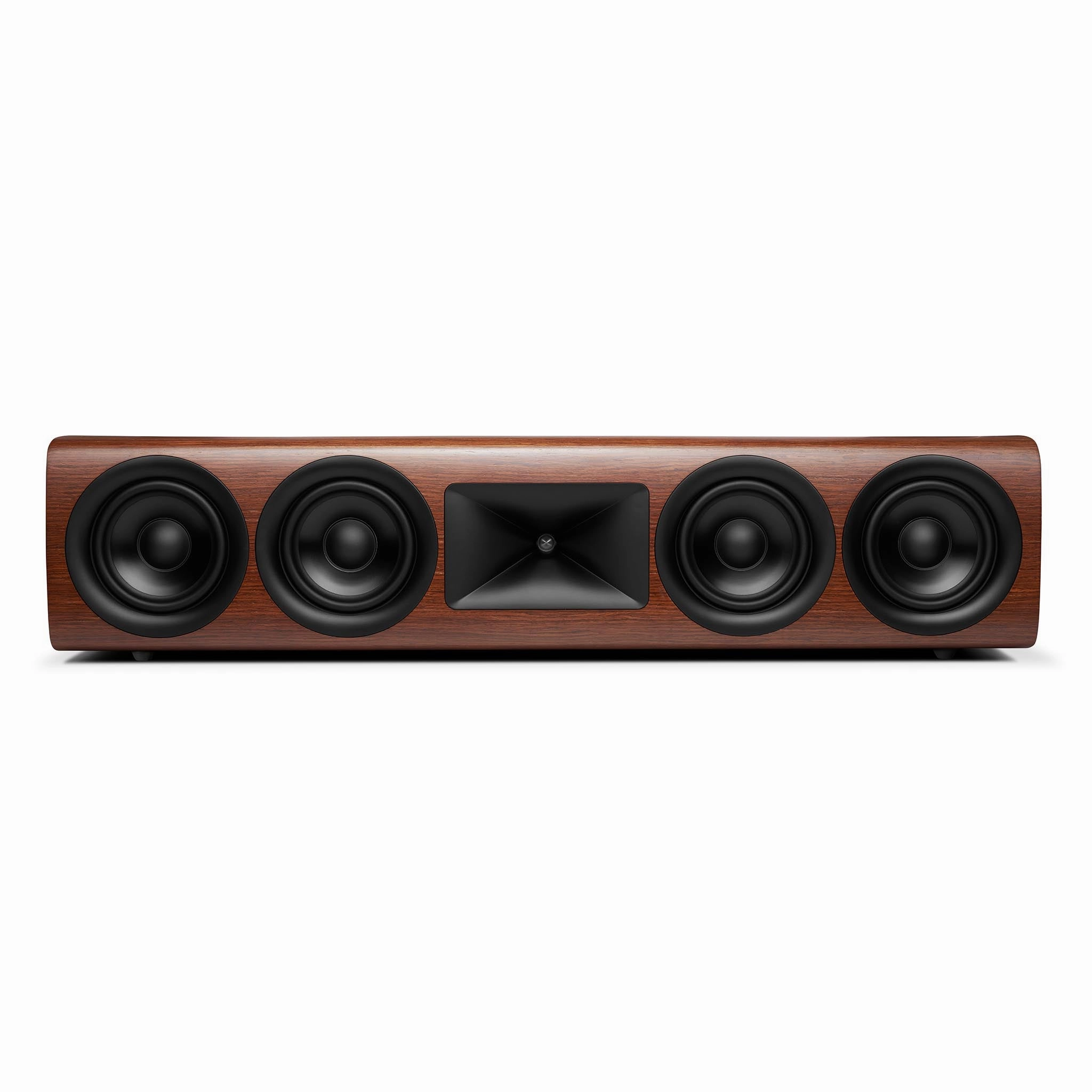

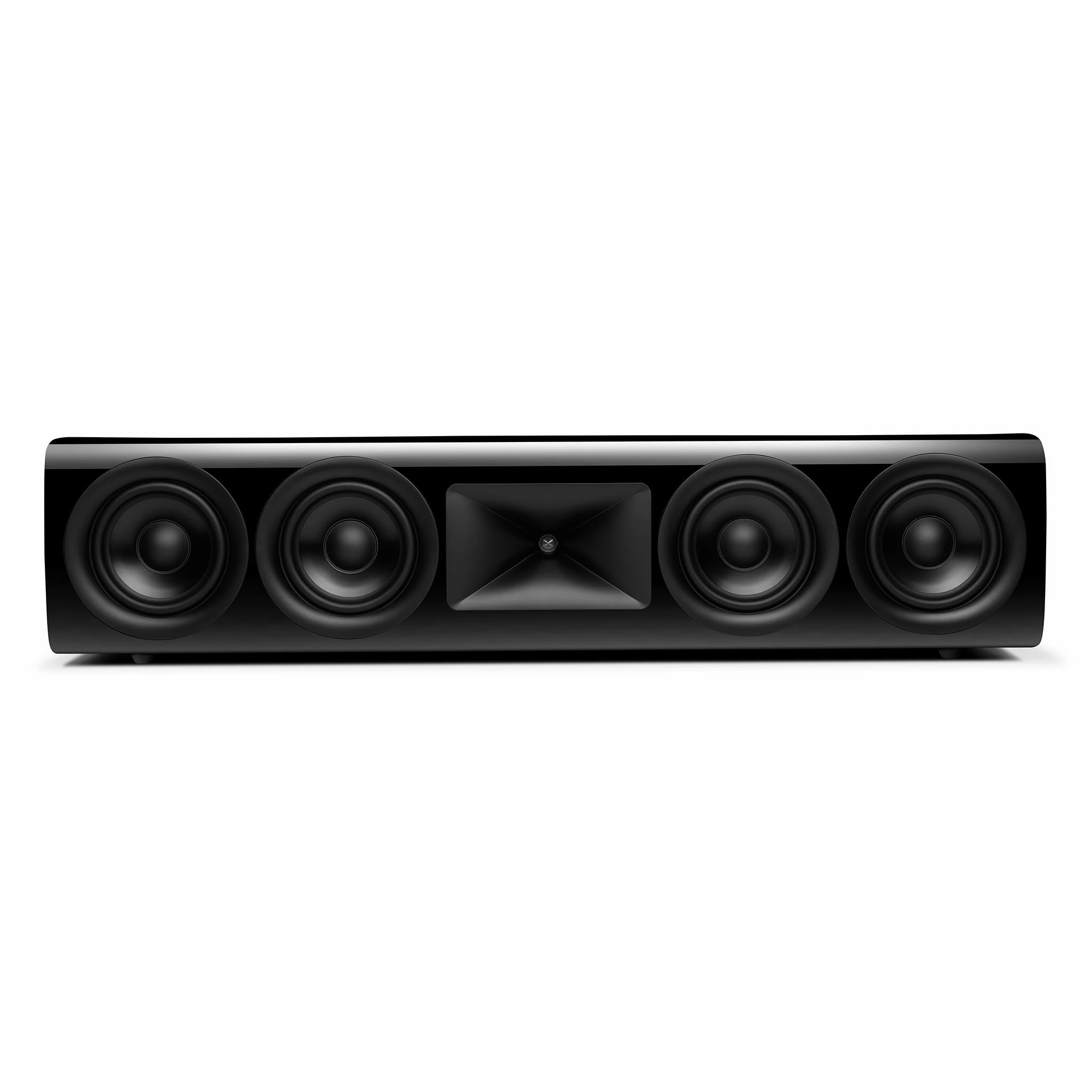

Designed and engineered in JBLs world-famous acoustic engineering facility in Northridge, California, the HDI-4500 is the anchor of a complete HDI Series surround system. This center channel loudspeaker features a 2 -way design with patented High-Definition Imaging (HDI) waveguide technology, the patented 2410H-2 1-inch compression driver, and quadruple 5.25-inch Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

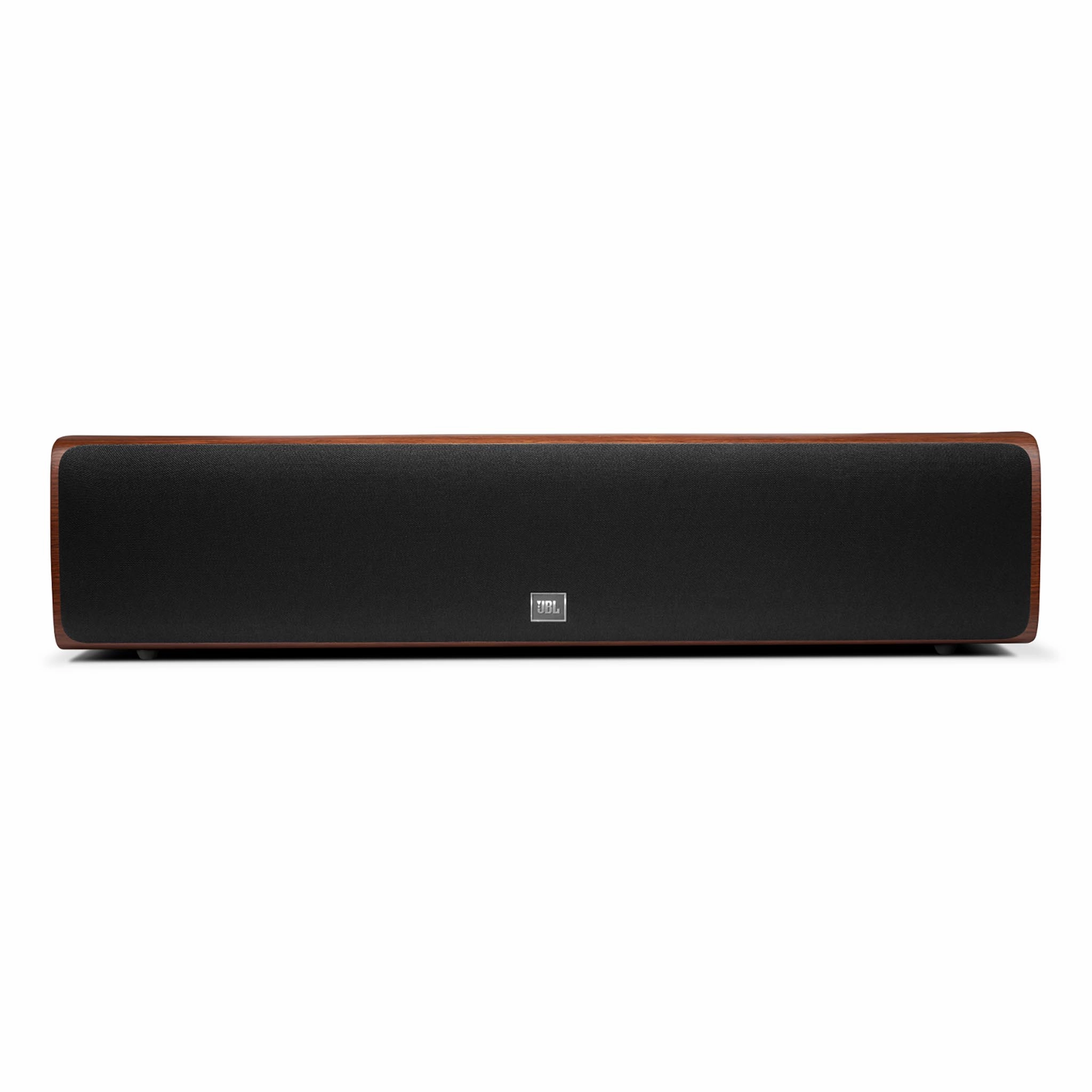

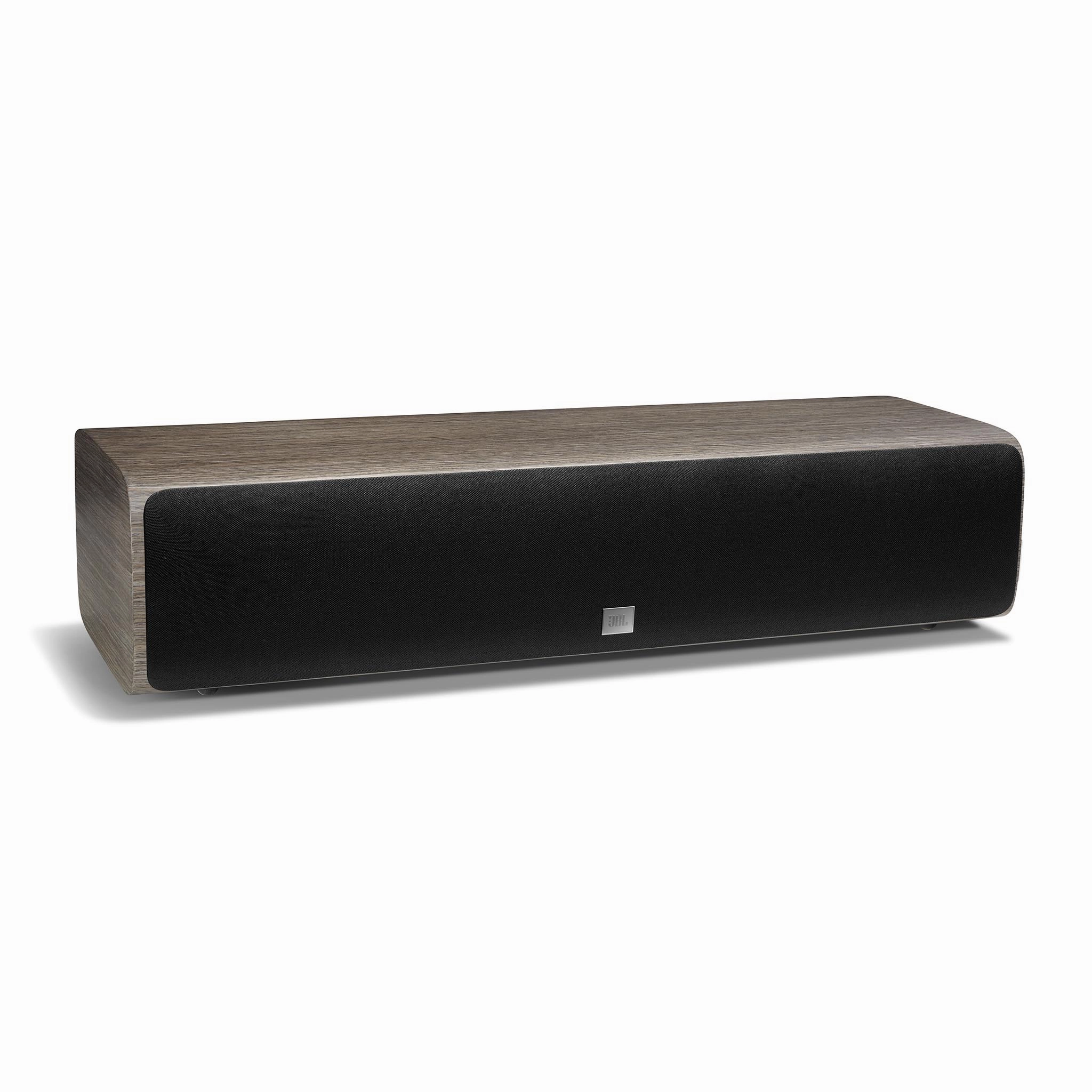

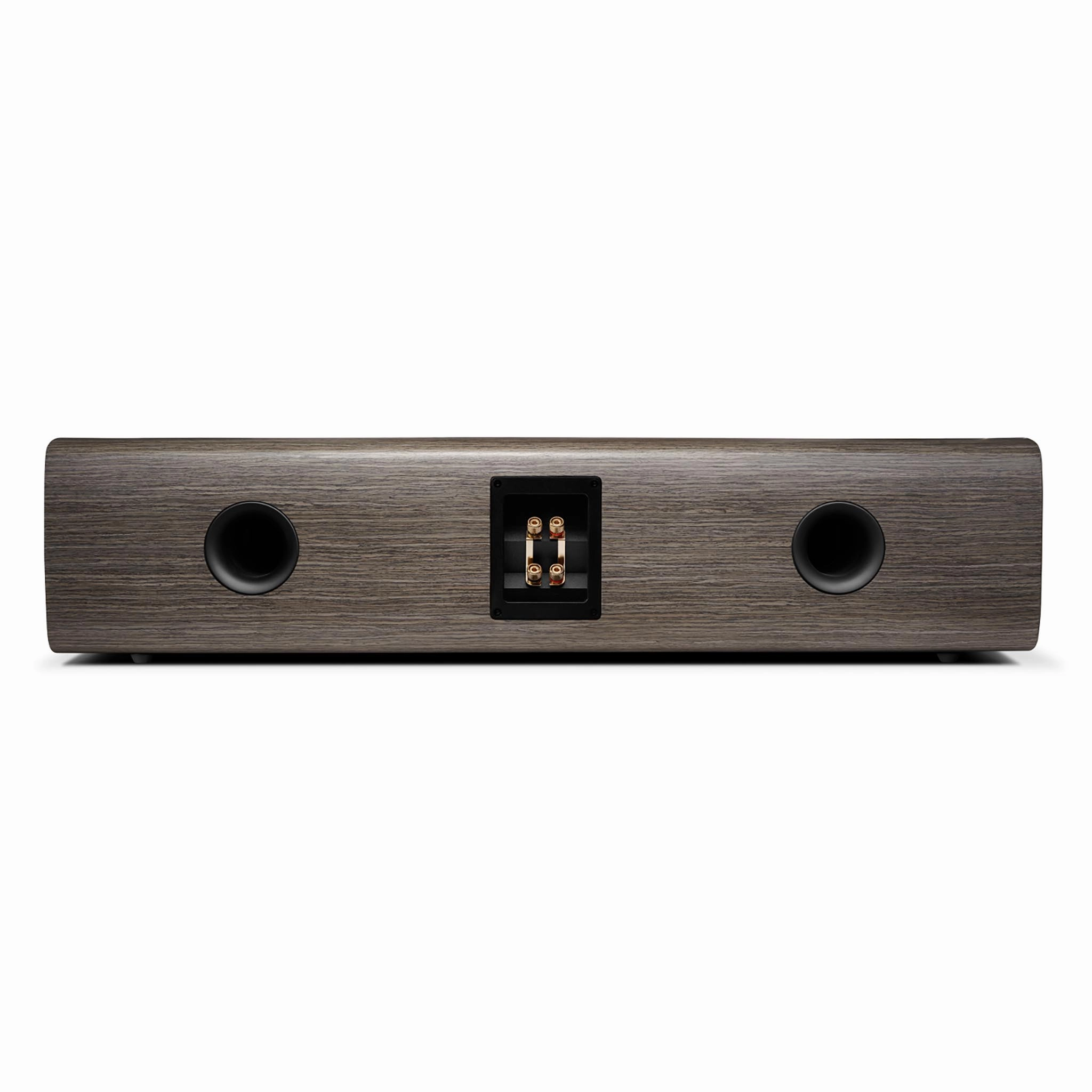

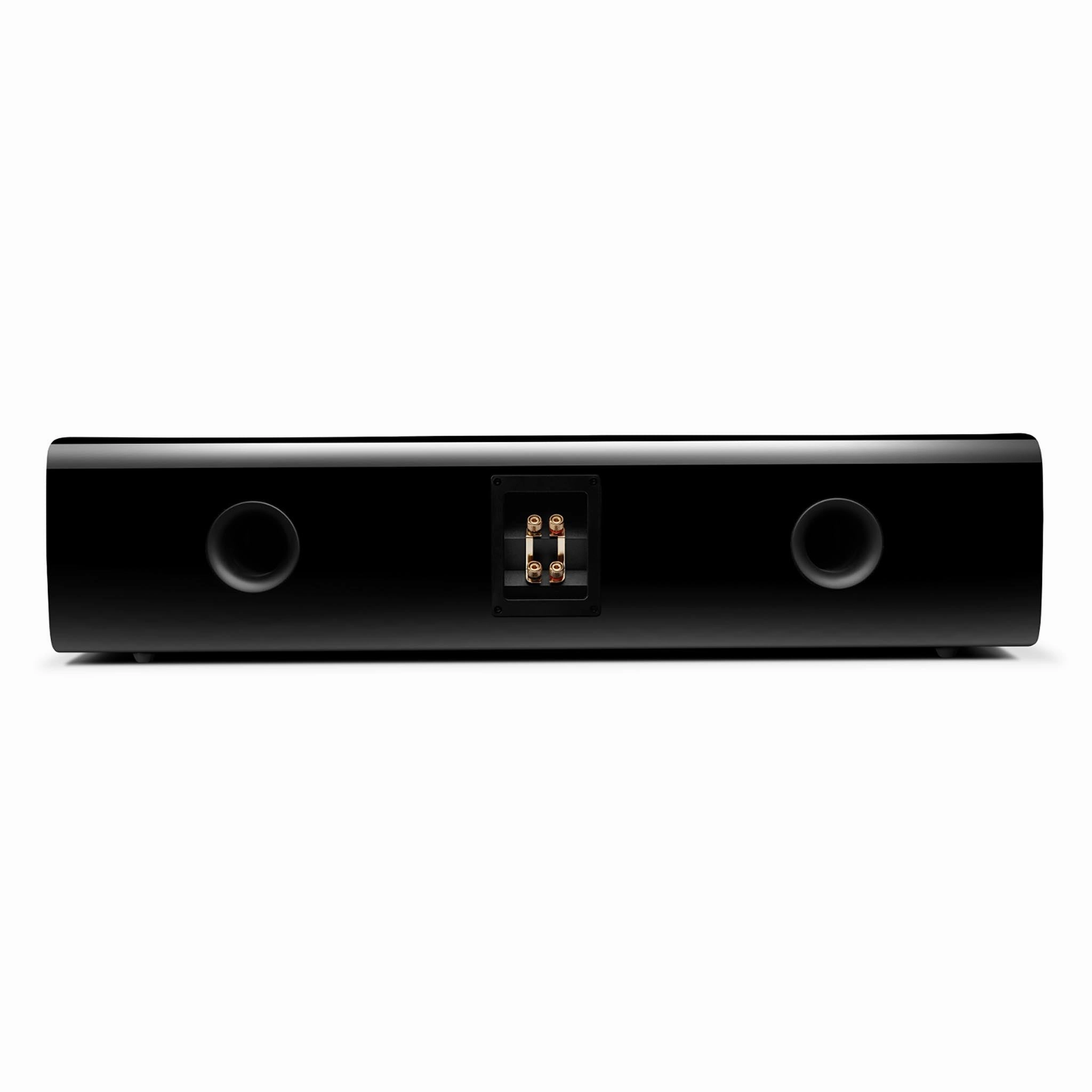

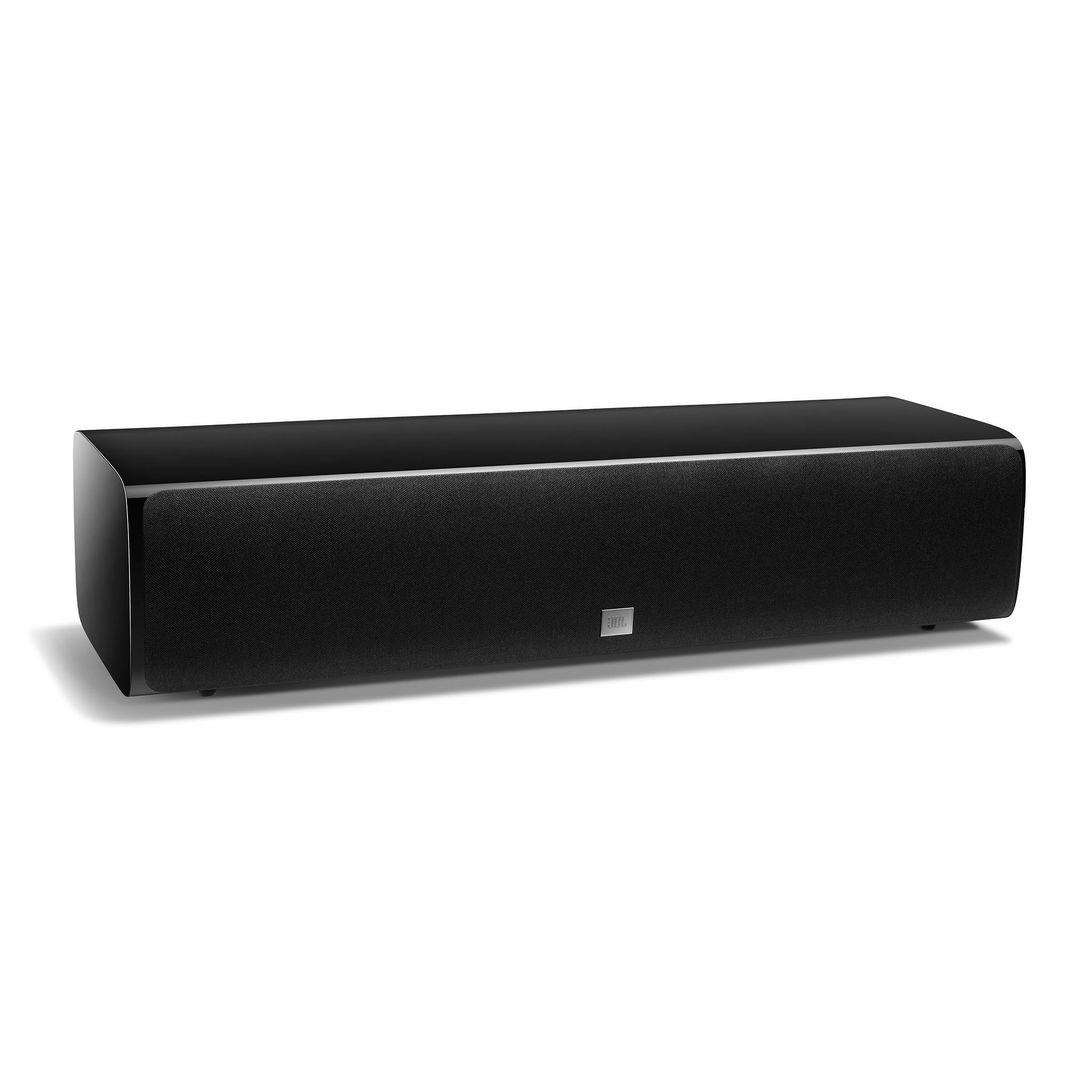

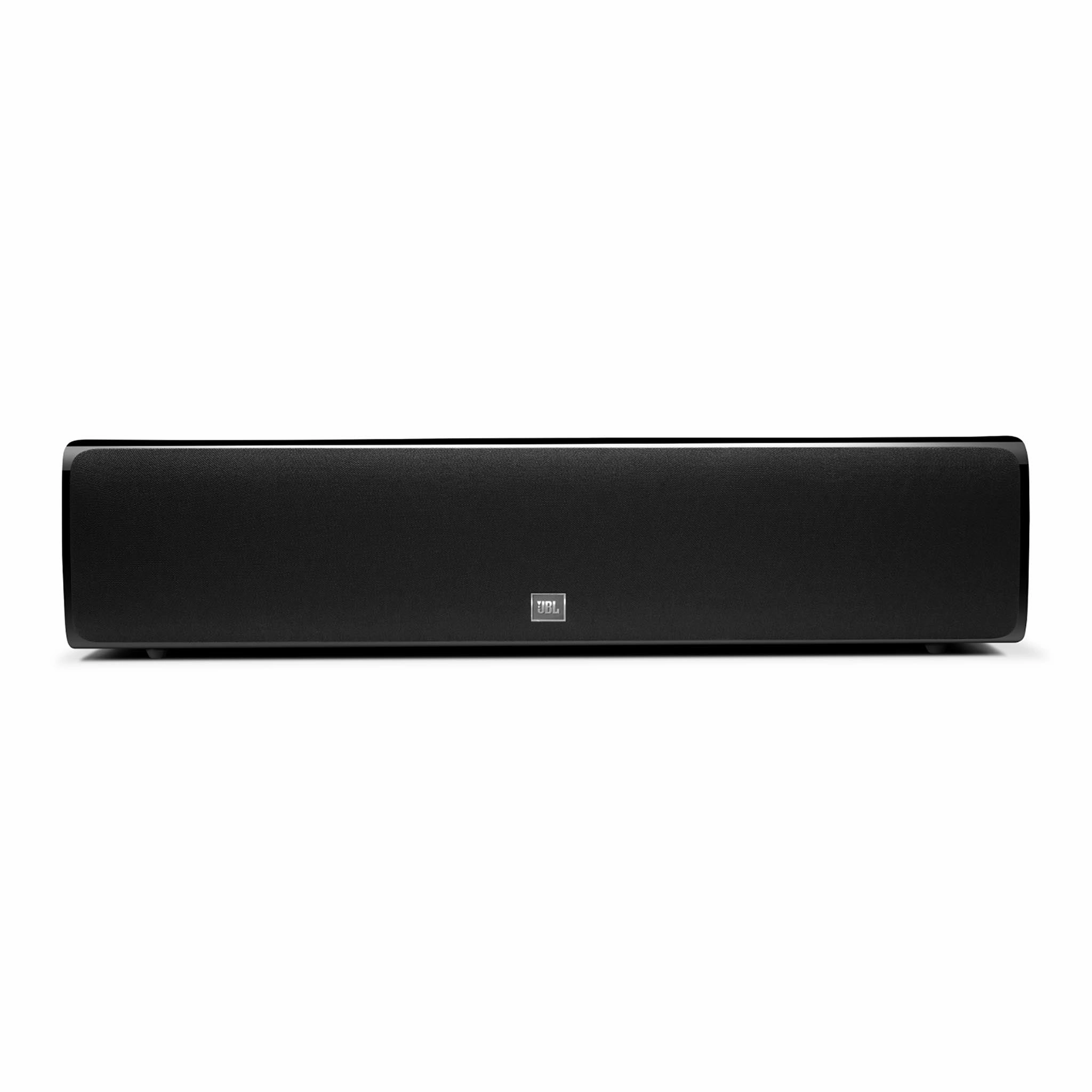

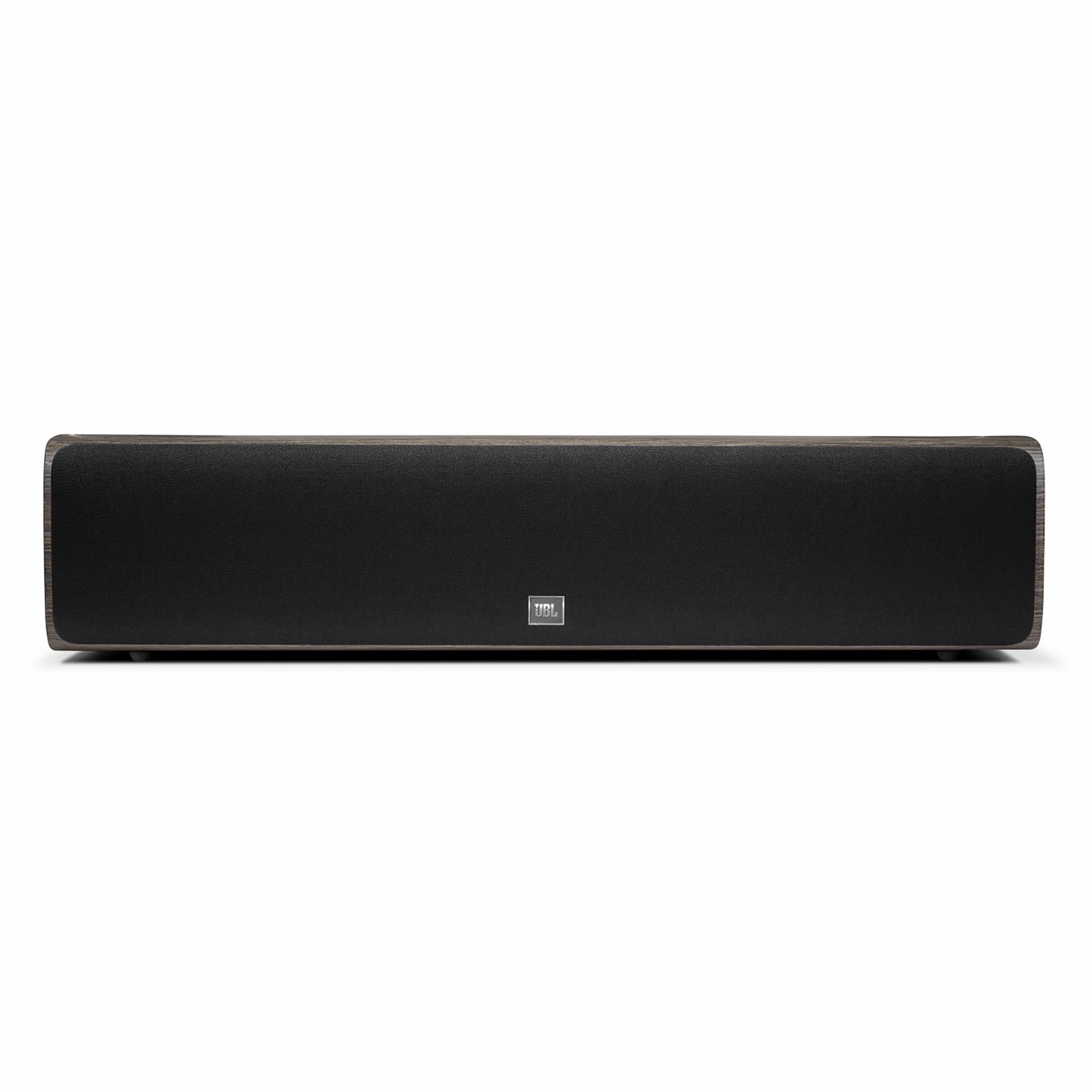

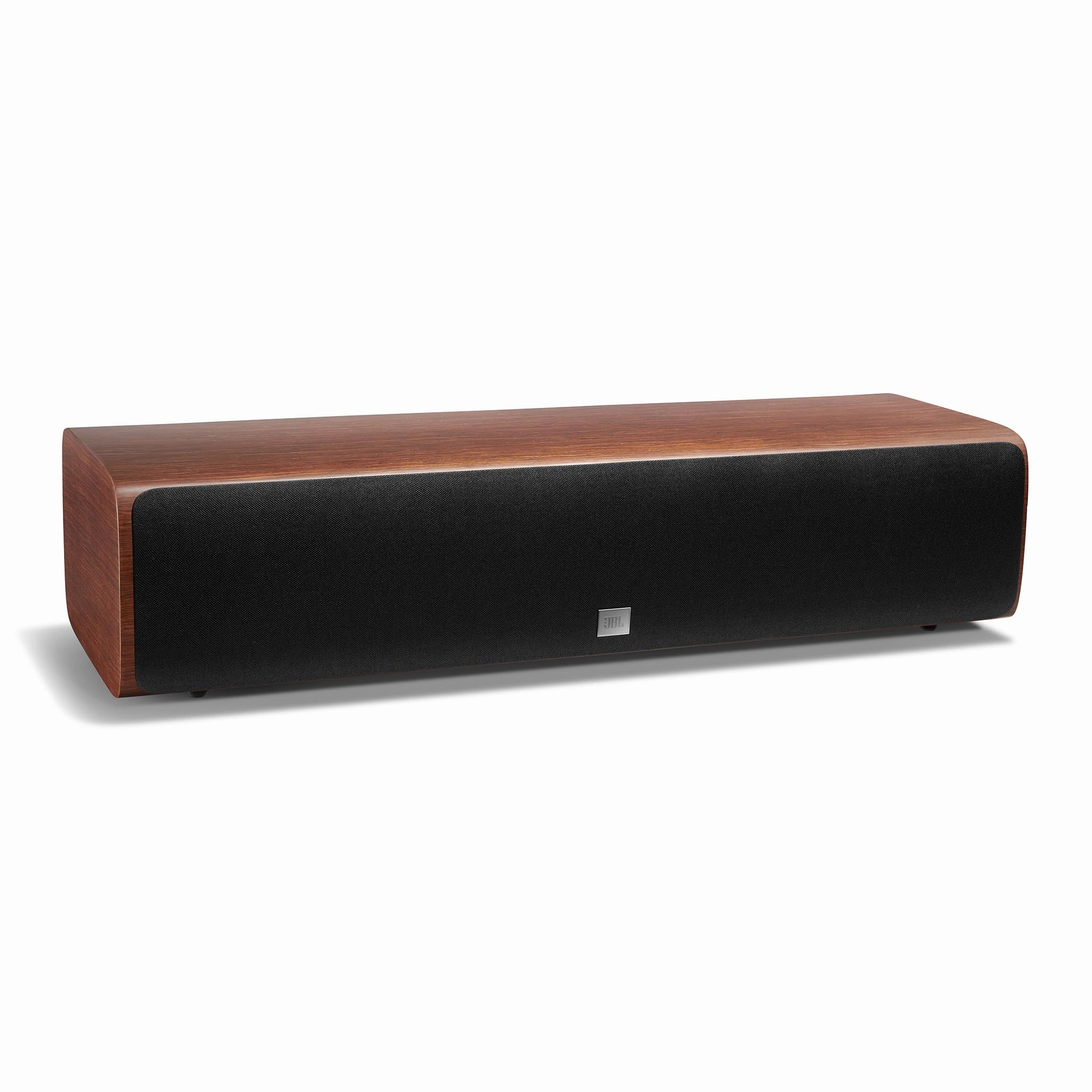

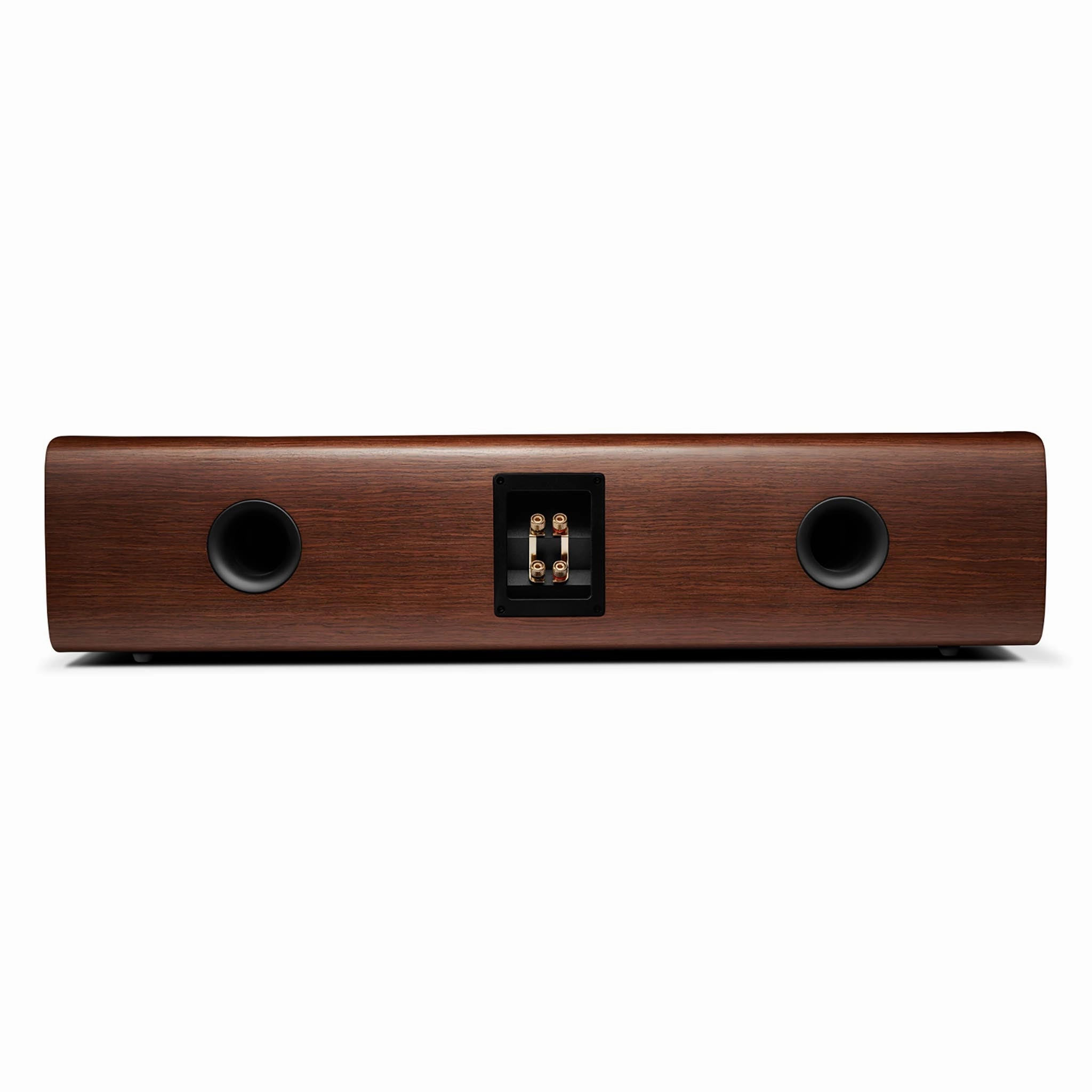

The HDI-4500 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance.
Features
- Patented HDI (High-Definition Imaging) waveguide technology
- Patented 2410H-2 high-frequency compression driver
- Quad 5.25" (130 mm) cast frame, Advanced Aluminum Matrix cone woofers with 1.5" voice coils
- Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer
Specifications
Enclosure:Bass-reflex design with rear-firing port
Sensitivity:90dB
Drivers
HF:1" (25 mm) Teonex compression driver
LF:4 x5.25" (130 mm) black Advanced Aluminum Matrix cone, cast frame woofer
Crossover Frequencies:600 Hz, 2,200 Hz
Nominal Impedance:4 ohm
Frequency Response (-6 dB):50 Hz 30 kHz
Dimensions (HWD): 7.48 x 33.13 x 12.3 (190 x 841.4 x 312.5 mm)
Weight: 44.33 lb. (20.11 kg)
