REL Acoustics S/510 Subwoofer
[Adding] the S/510 is like swapping for a bigger, and in many respects better, loudspeaker.
Its speed, deftness and musicality aren't to be sniffed at, but the S/510 also does blunt force trauma. A pair of these will deliver a balanced and composed low-frequency foundation that can give your favorite movie moments some serious slam and an epic amount of scale.
The REL S/510 is an excellent subwoofer that's beautifully designed and fantastically well made. It's also an impressive performer, delivering exceptional bass in a tight and controlled fashion.
The most dramatic upgrade to any mid-line REL ever.

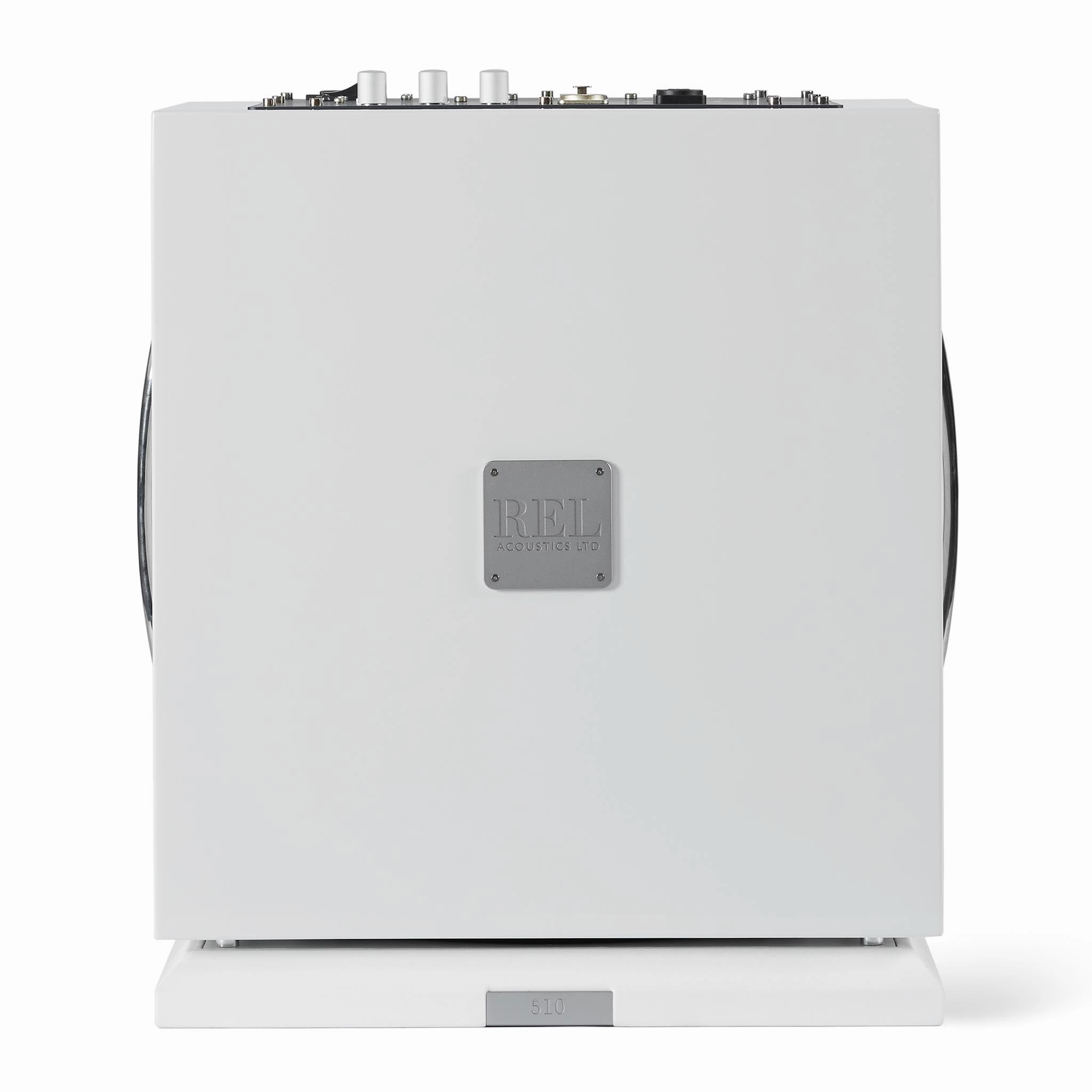

Upscale's best-selling subwoofer models, the beloved REL S/3 SHO and S/5 SHO have been given a complete transformation into the new Serie S.The beautiful new cabinetry is contrasted by subtle gunmetal grey badging, and the feet have beenreplaced by ultra-stable rails, reflecting proportions from REL's reference portfolio.
The S/510 uses theS/5's NextGen2 amp and now features a full 500 W monoblock design. The increased power is needed to handle the special filters first used in the HT/1508 that offer almost twice the output below 40 Hz for .1/LFE applications.
The high- and low-inputs use a new design called PerfectFilter that offers a more musically natural performance with more air and openness. The already ultra-light driver cone from the original Serie S has been upgraded with a rear-mounted carbon fiber bracing that stiffens and deadens the cone almost 60% more than the original. Improved filtering results in greater speed, delicacy, and precision, offering a powerful and extremely flat response.
Finally, these are the first medium-chassis RELs designed to be stackable up to three units high on each side. This opens up the awe-inspiring scale of REL's Reference Line Arrays to a whole new audience.
Specifications

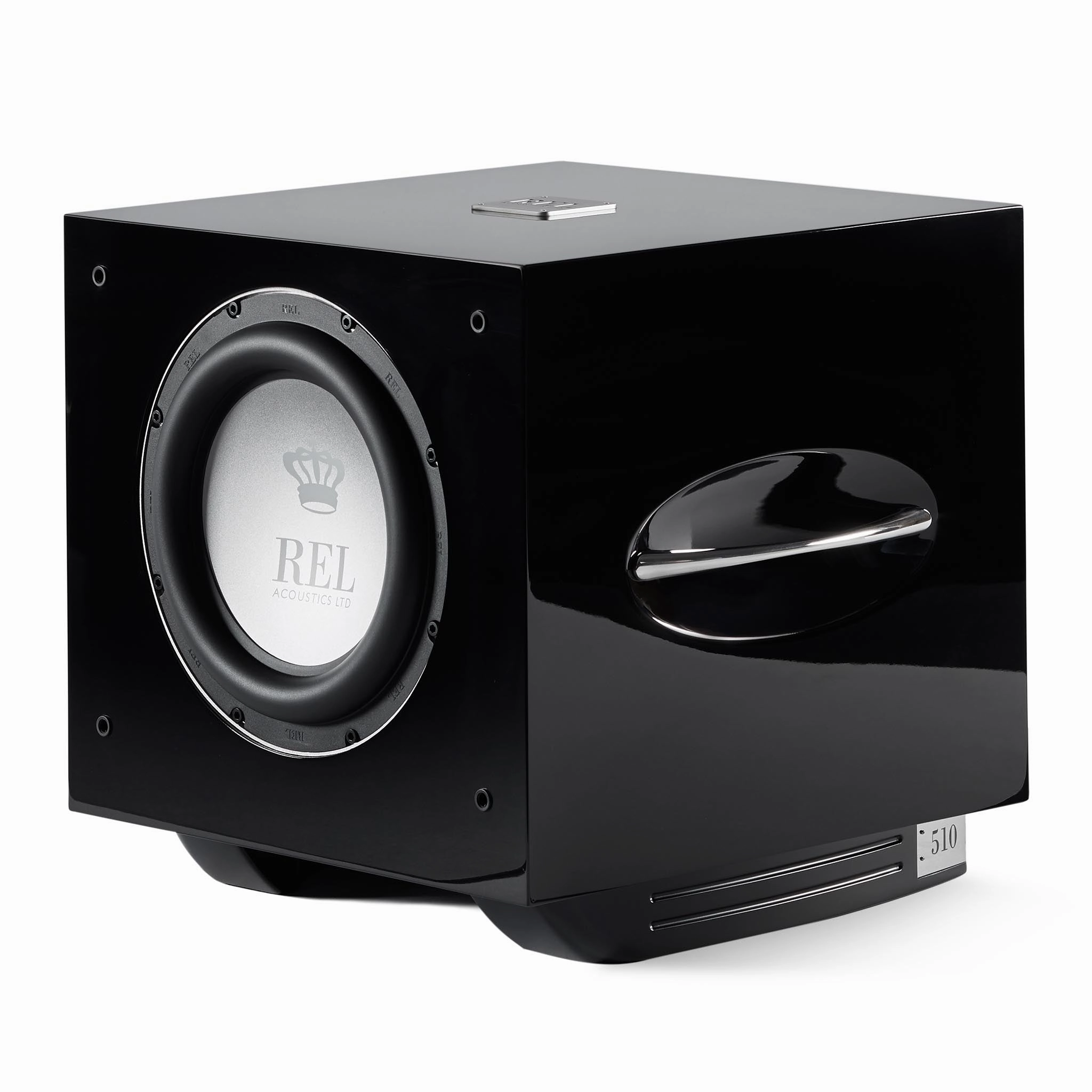

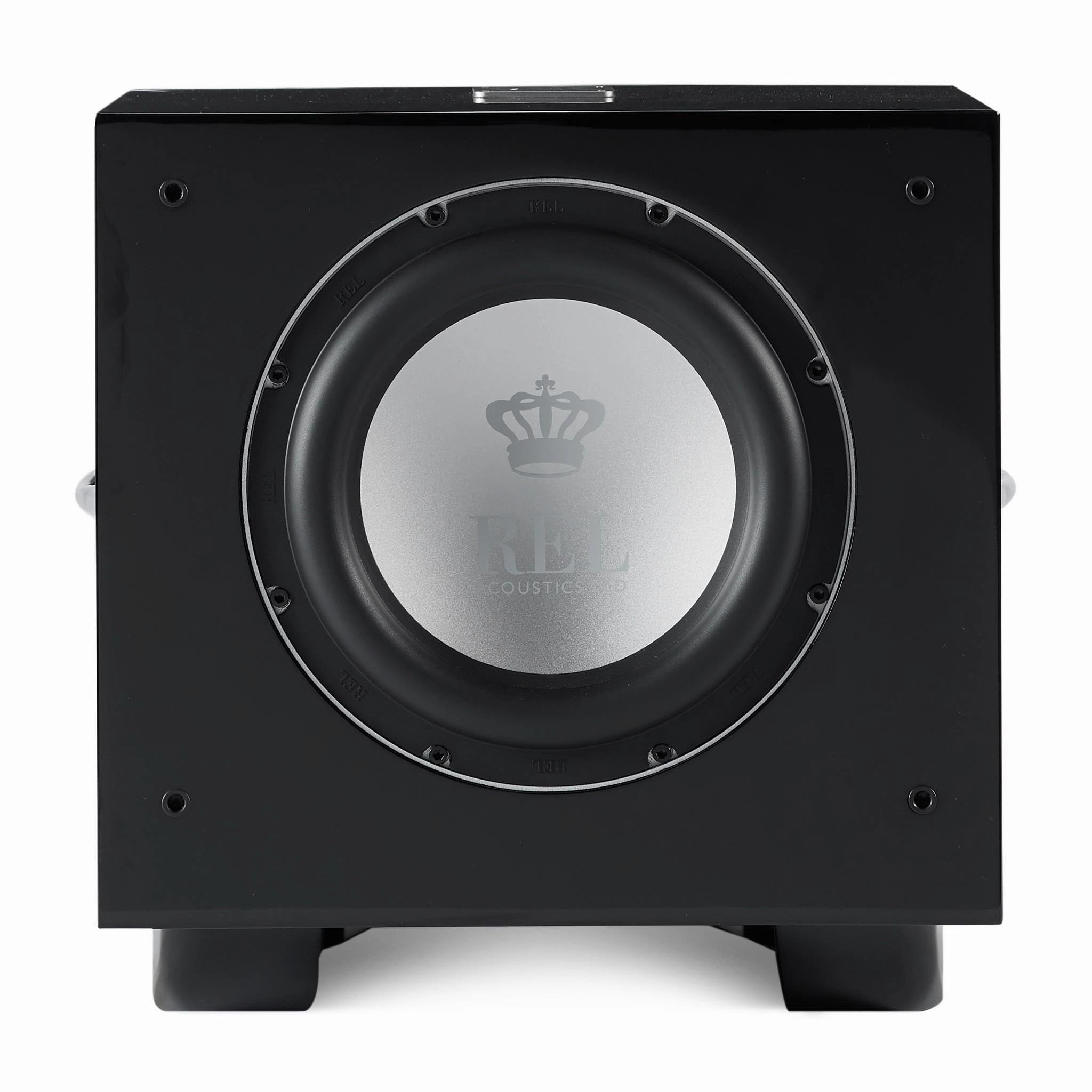

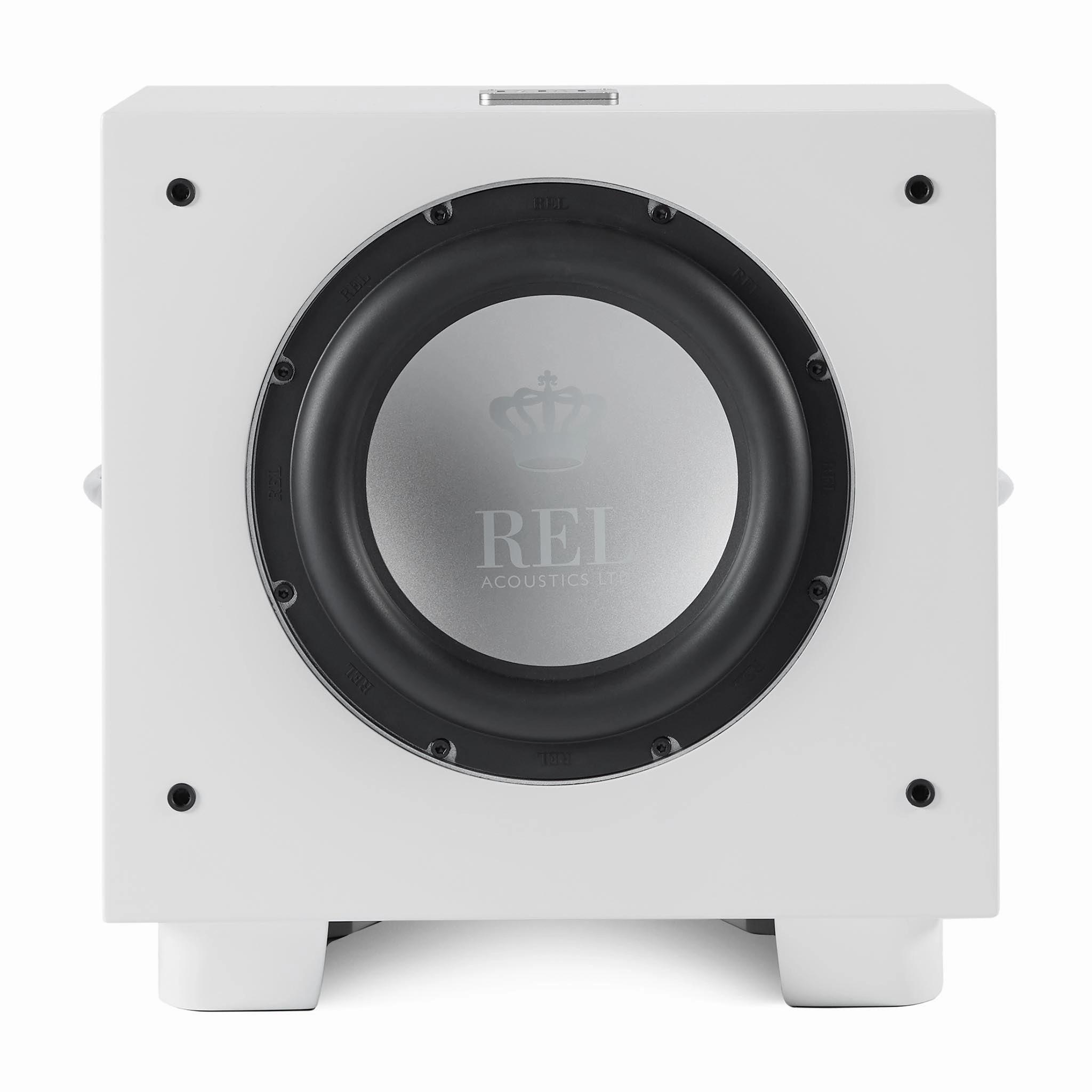

Active drive unit: Front-firing 10" woofer, 9.8" long-throw, die-cast aluminum chassis

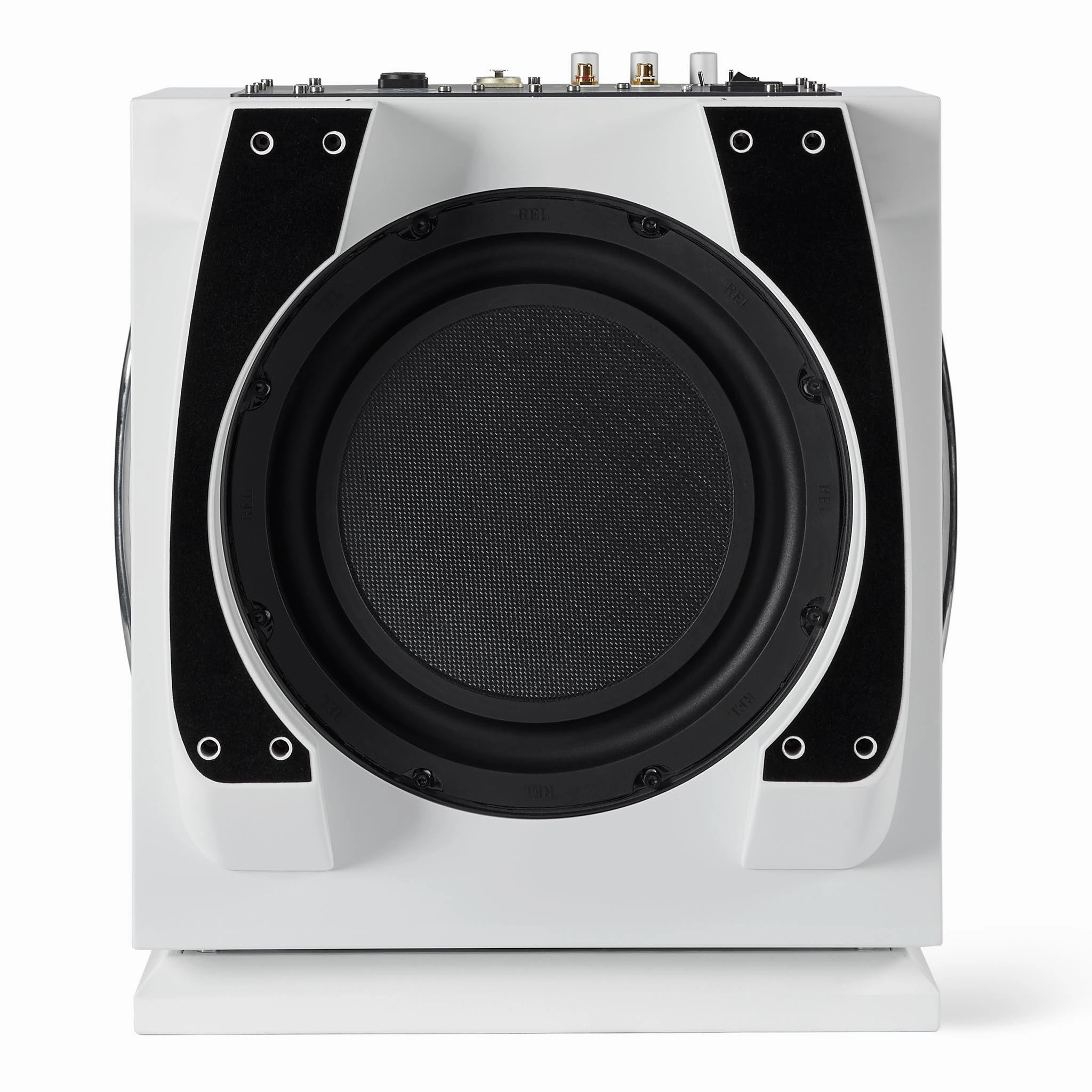

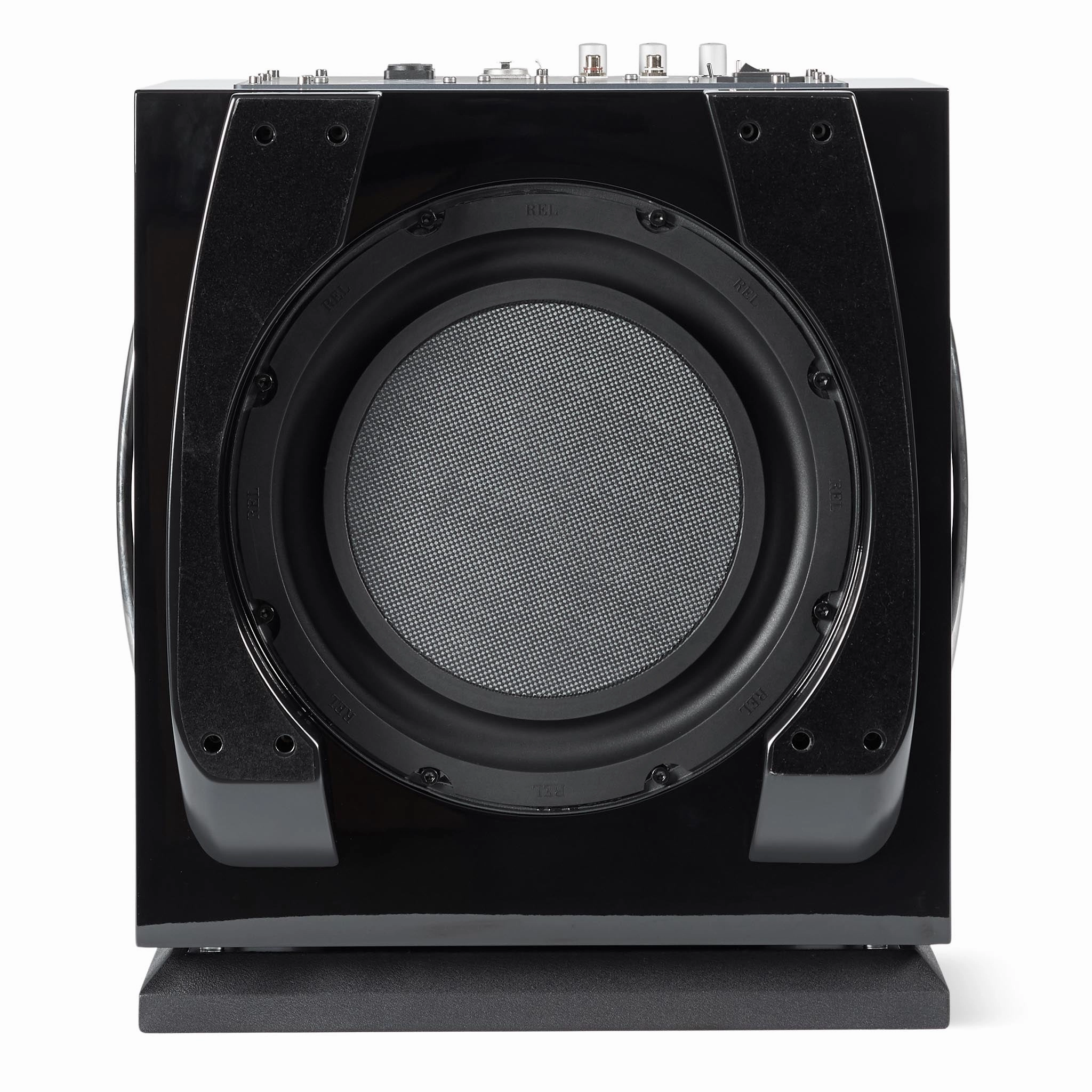

Passive radiator:12" driver, 11.8" throw
Low-frequency response in room: 20 Hz at -6 dB

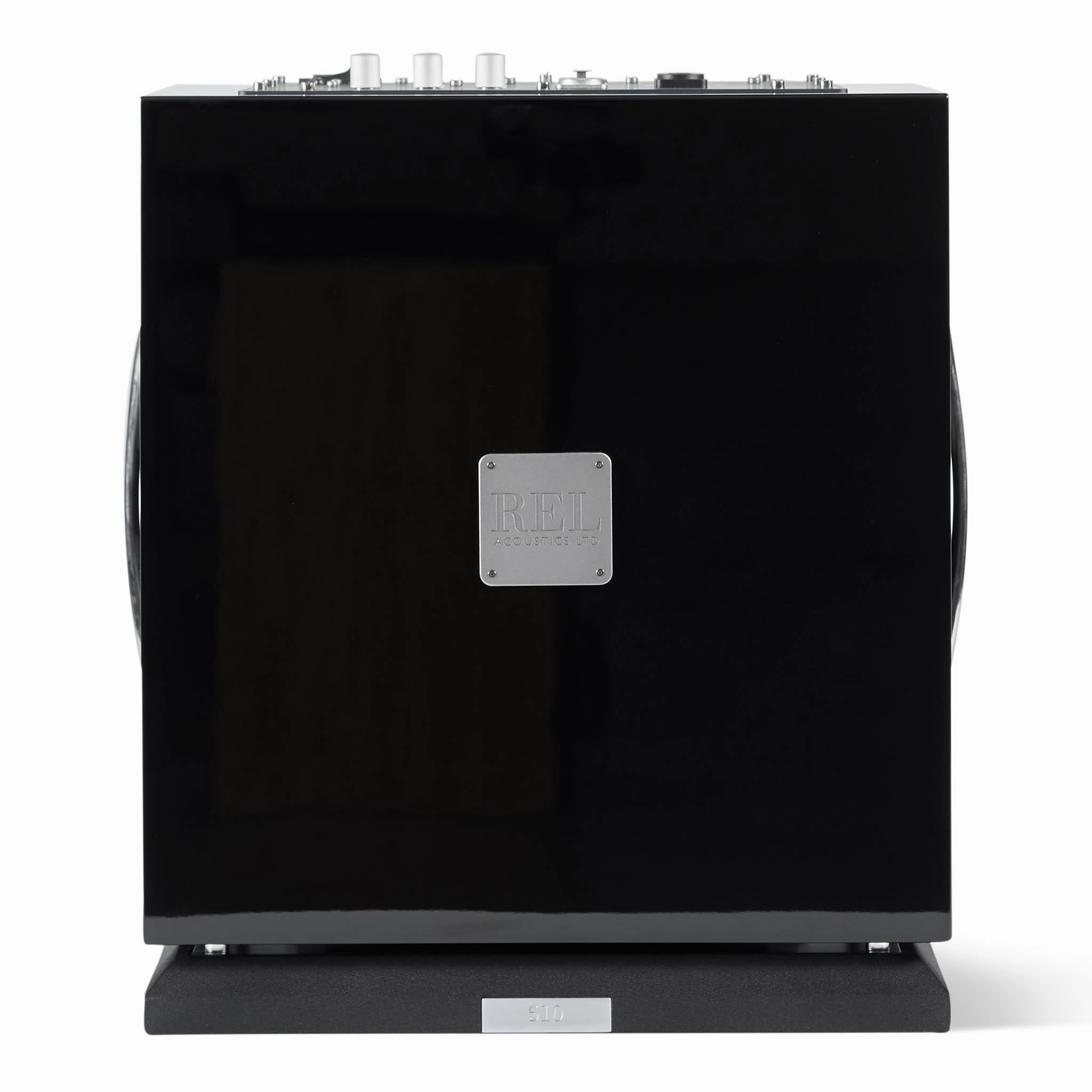

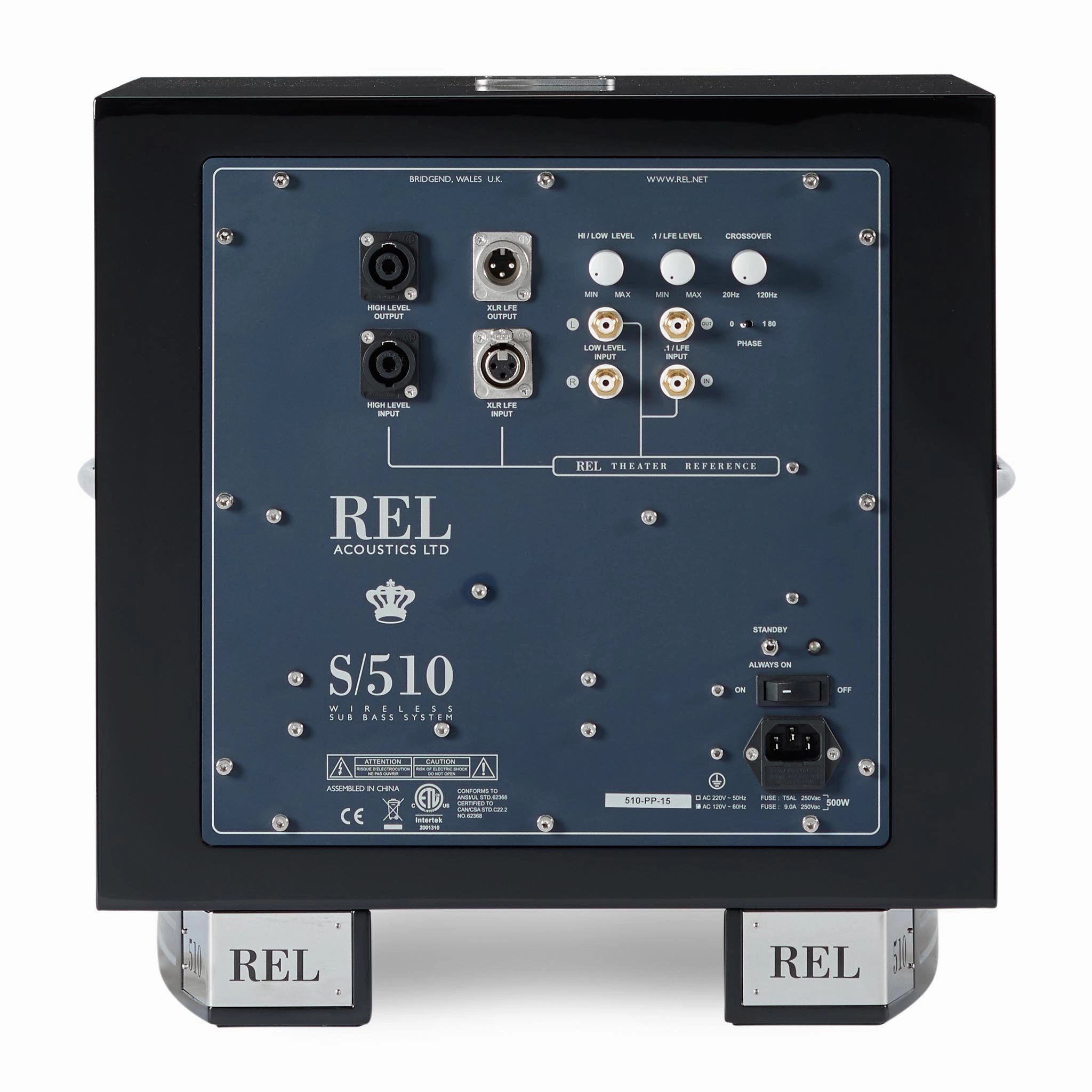

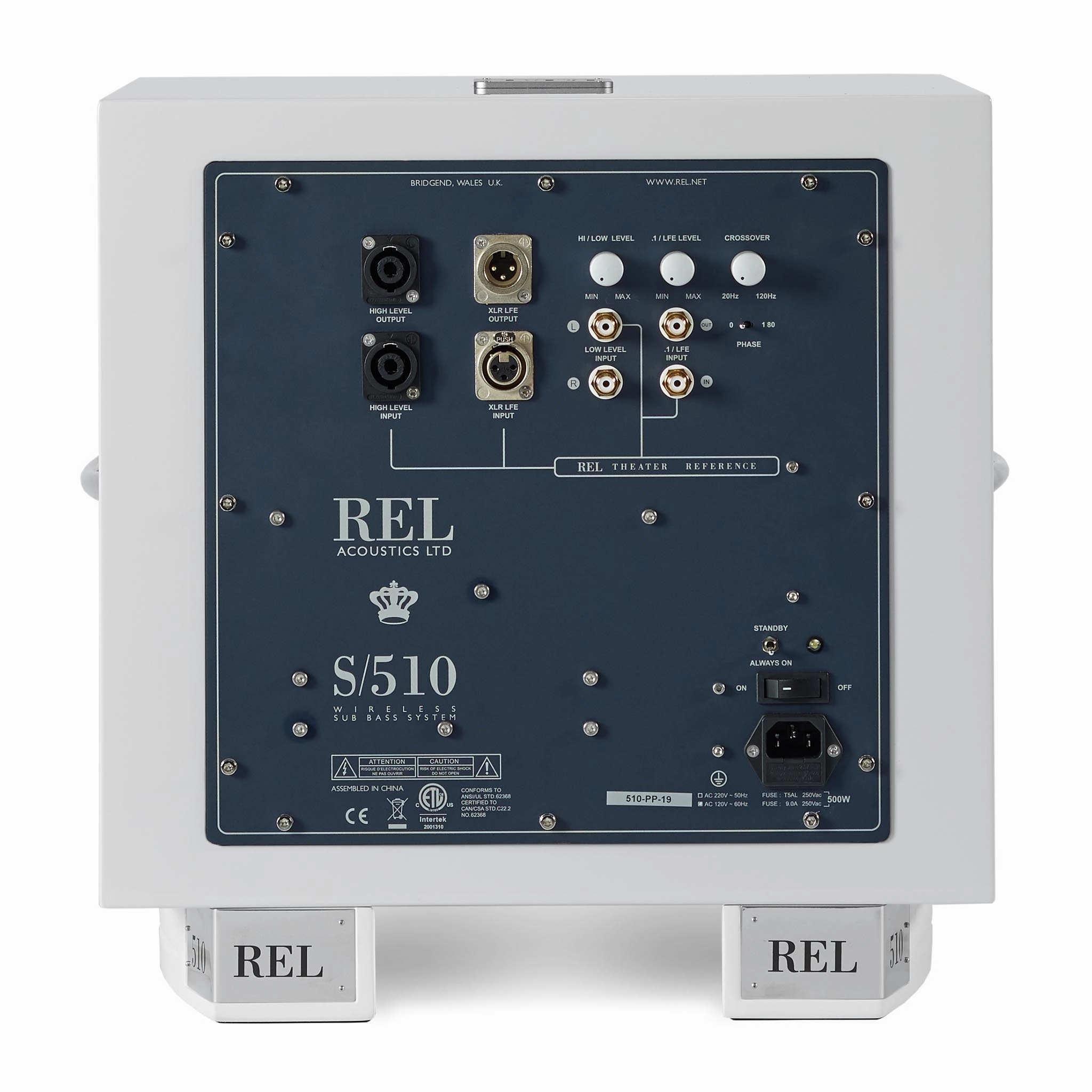

Inputs: High-level Neutrik Speakon,stereo low-level RCA, LFE RCA, LFE XLR
Gain control range: 80 dB
Power output: 500 W RMS
Phase switch: 0 or 180 degrees
Amplifier type: NextGen2 class D
Wireless: REL Airship, sold separately
Protection system: Fully electronic with SET-SAFE, DC fault, output short
Fuse: 9 A semi-delay
Dimensions
WHD, including feet and rear panel controls: 15.7" x 16" x 18.25". Add 1.75" when using high-level connector
Weight: 70 lb
Shipping weight: 80.7 lb

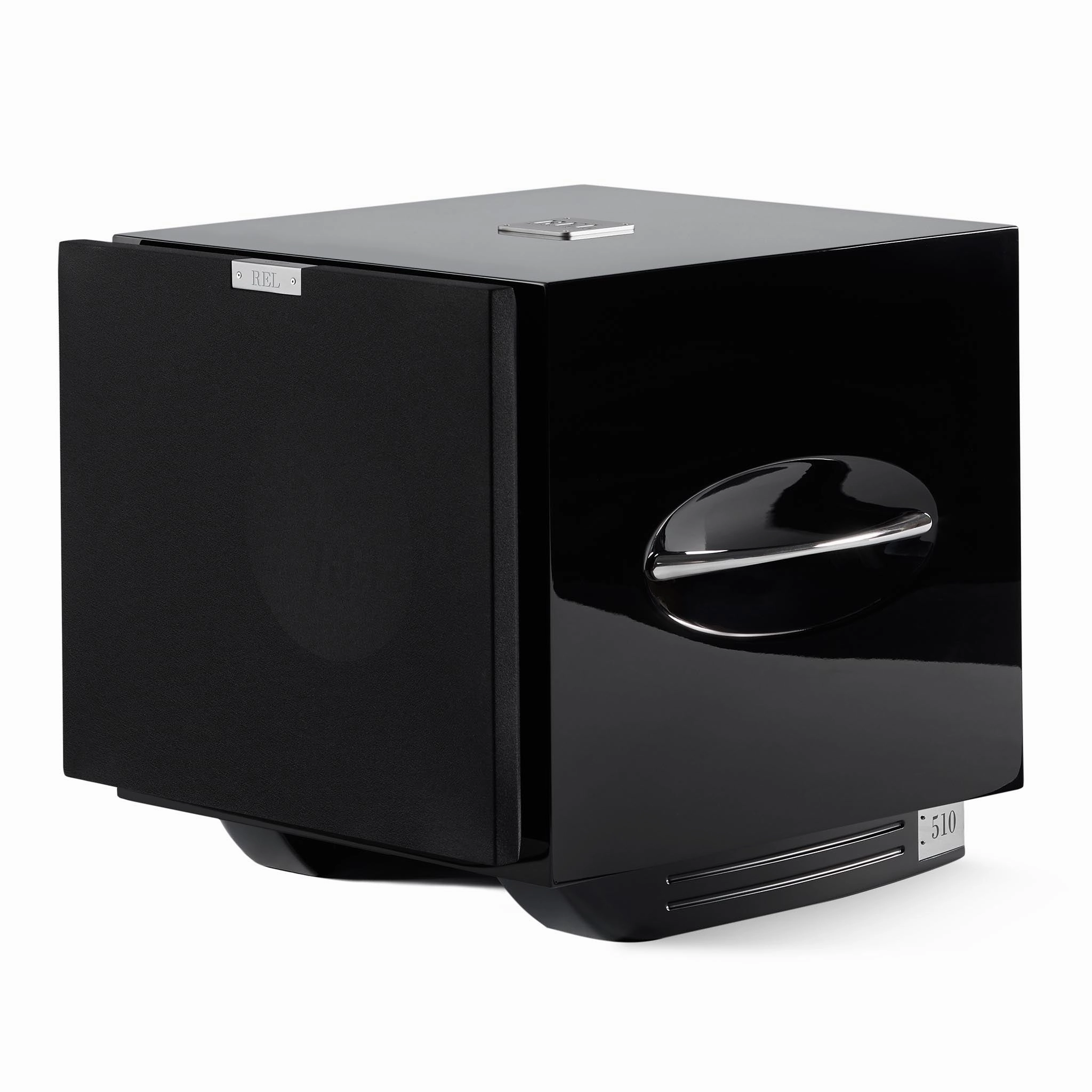

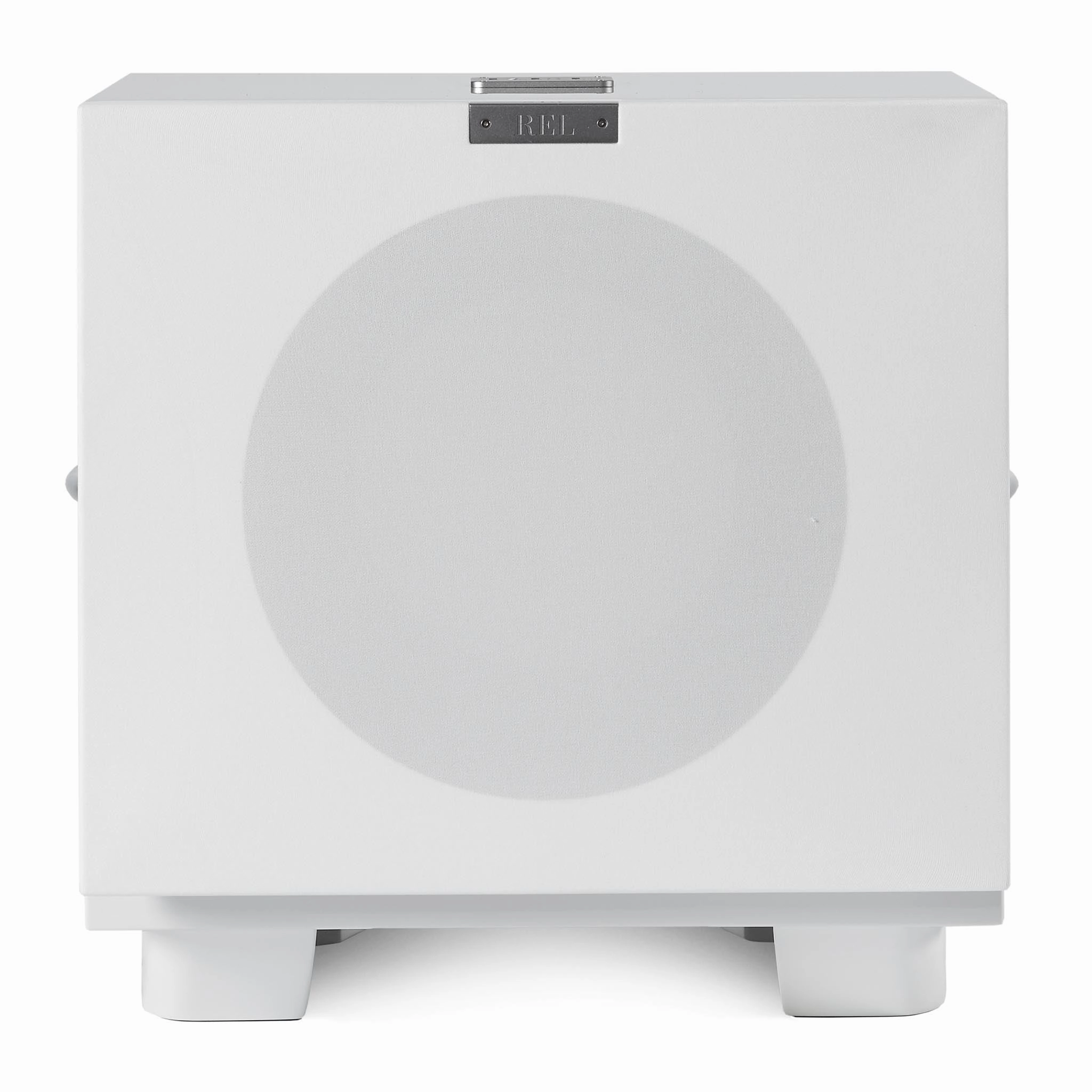

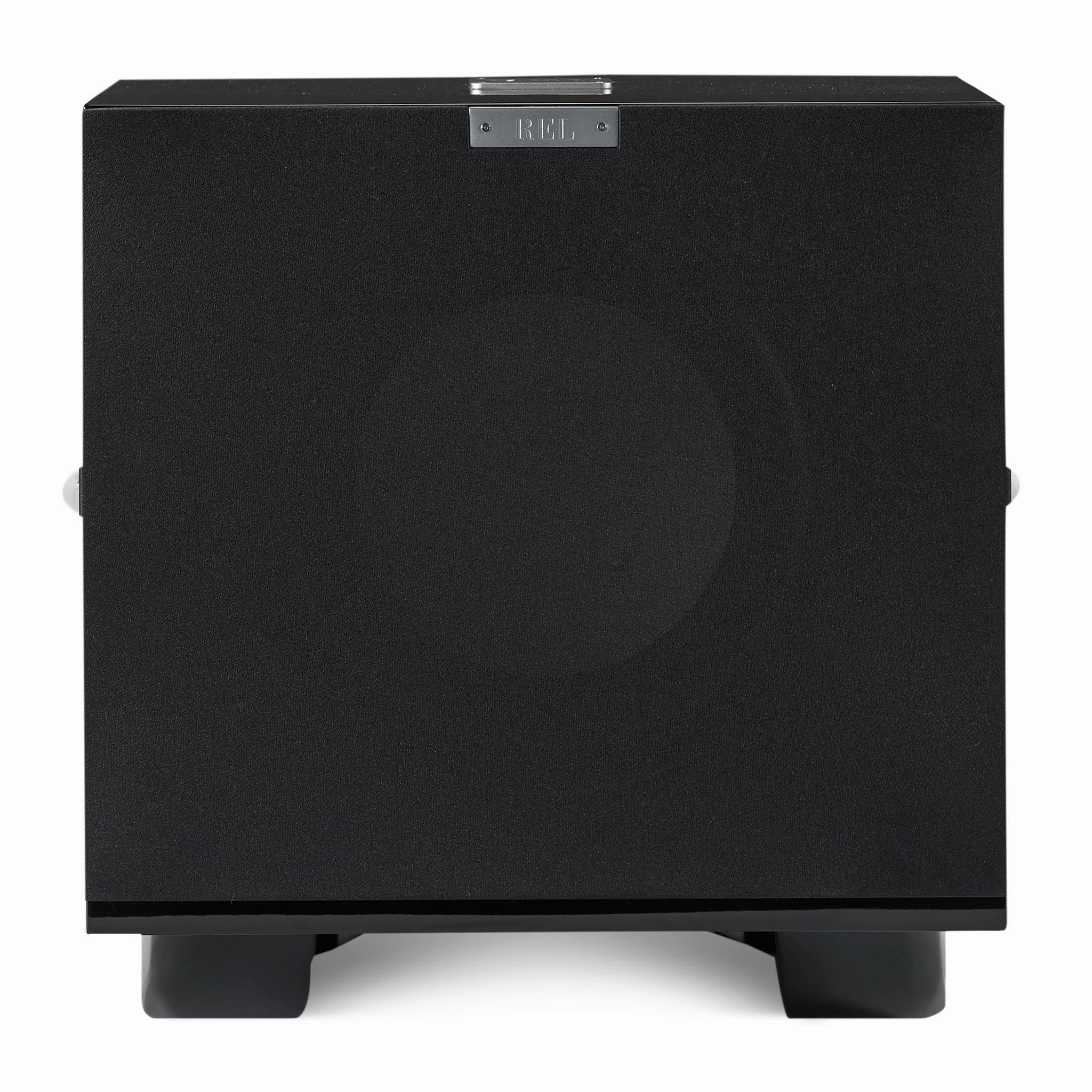

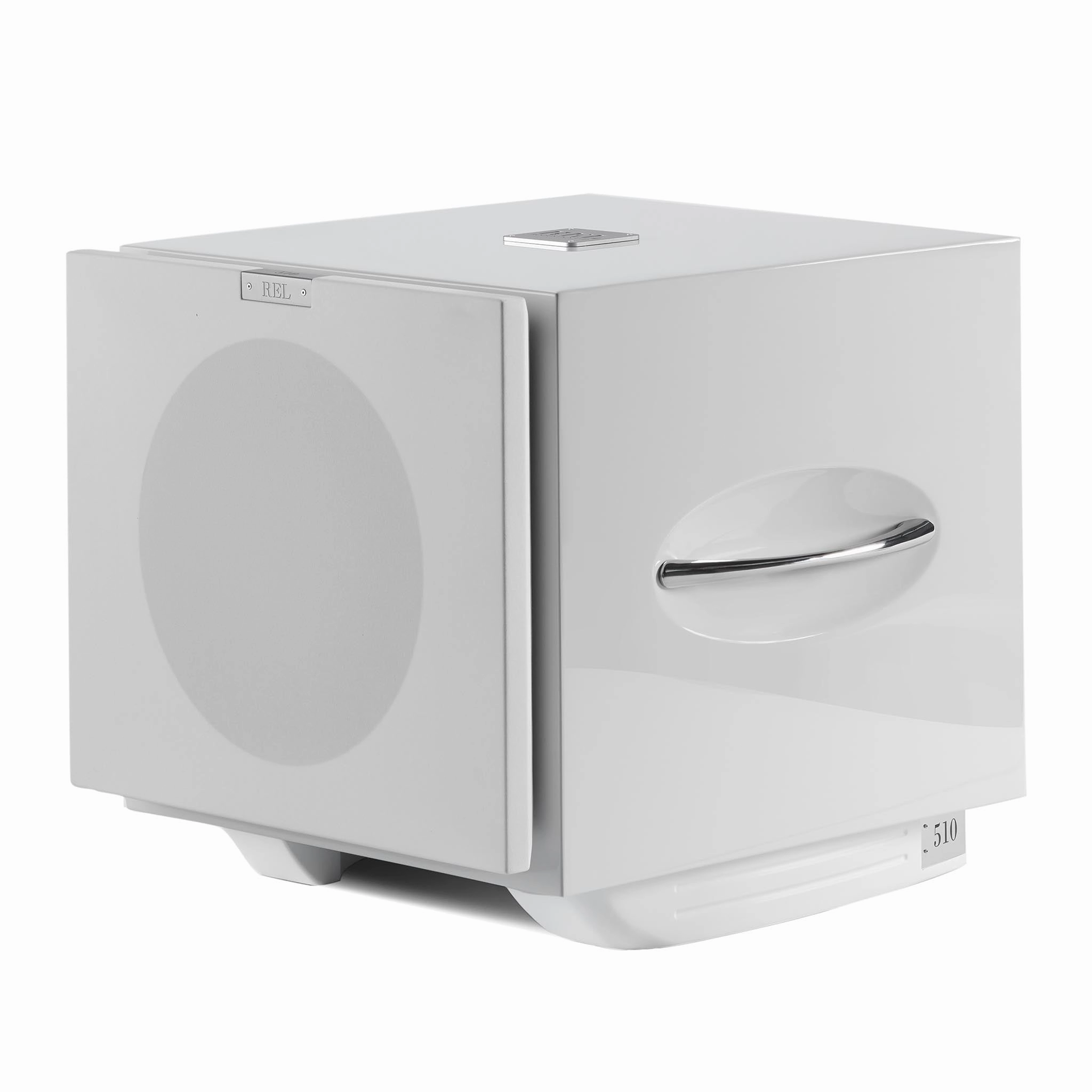

Finish: Gloss Piano Black or Gloss White Lacquer
Supplied accessories:Power cord, 32 ft Neutrik Speakon high-level interconnect, user manual
