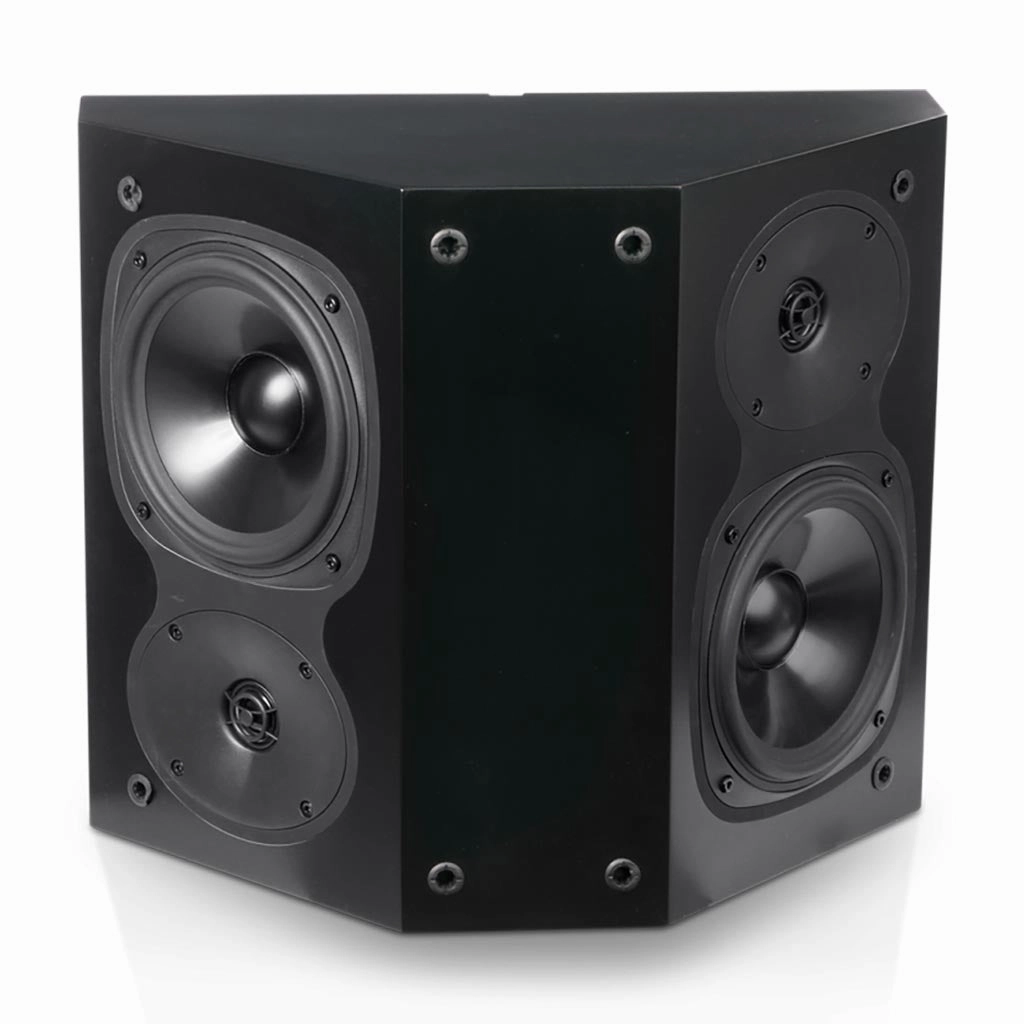

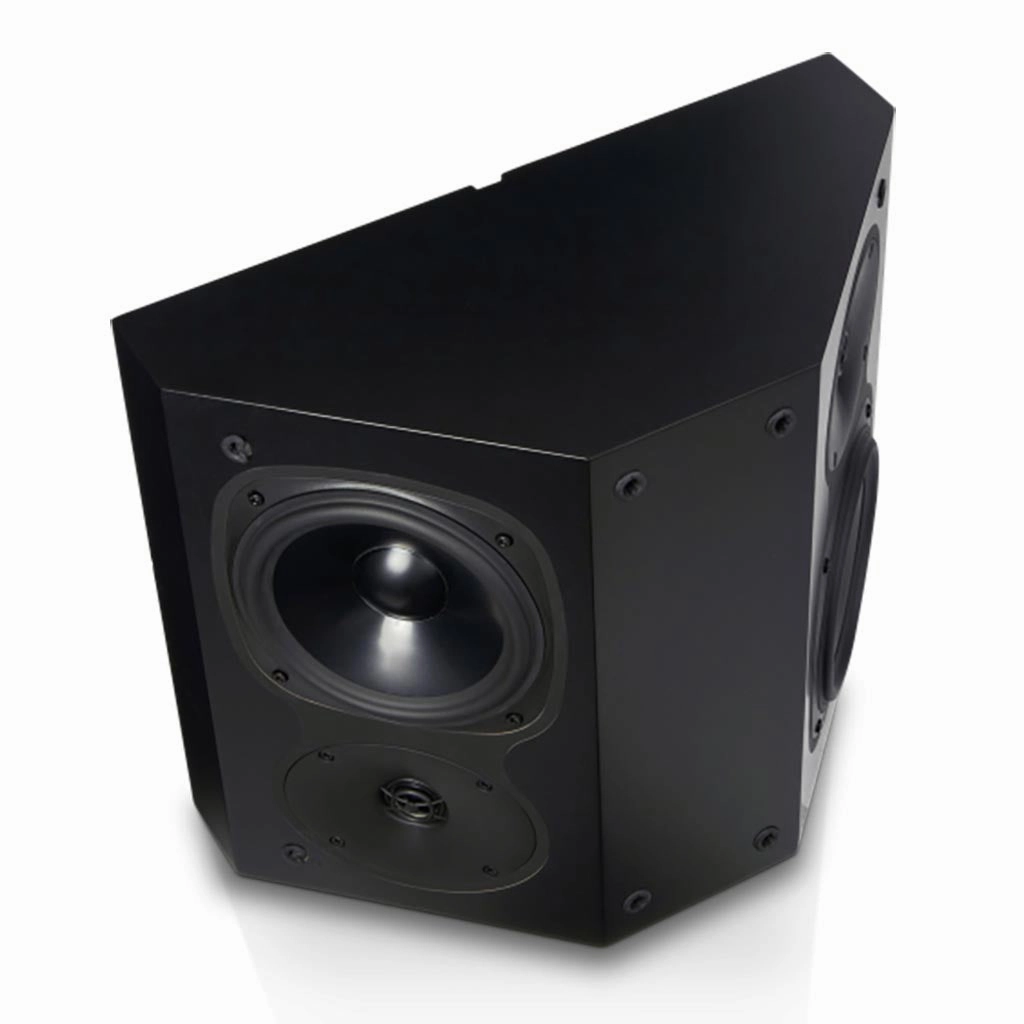

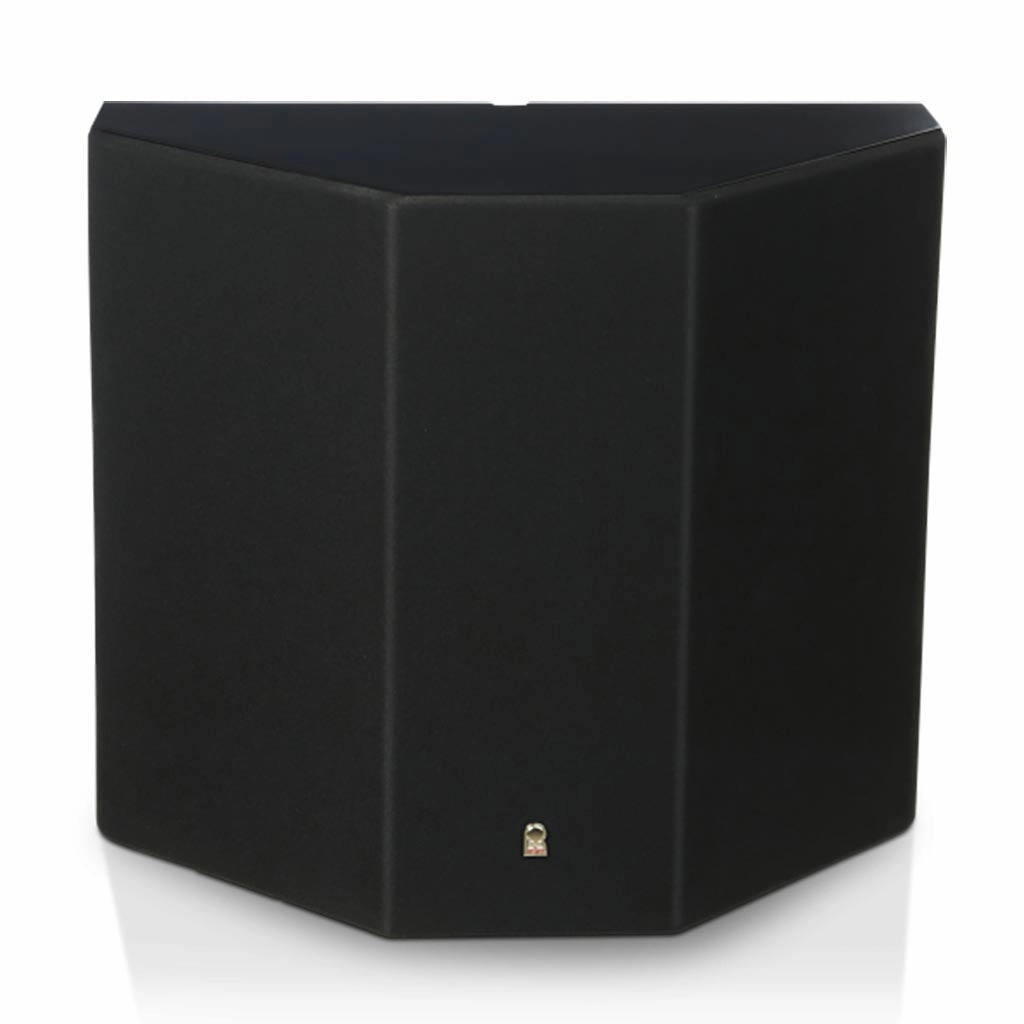

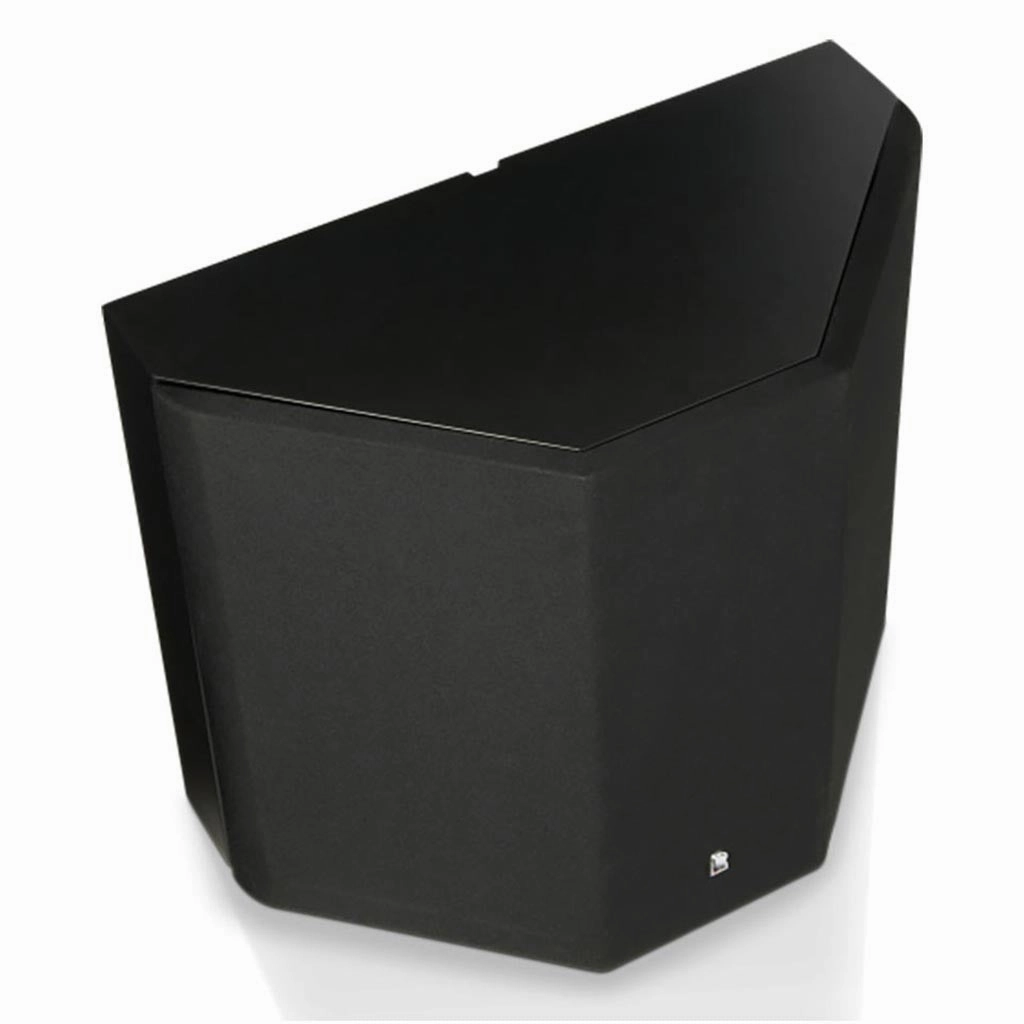

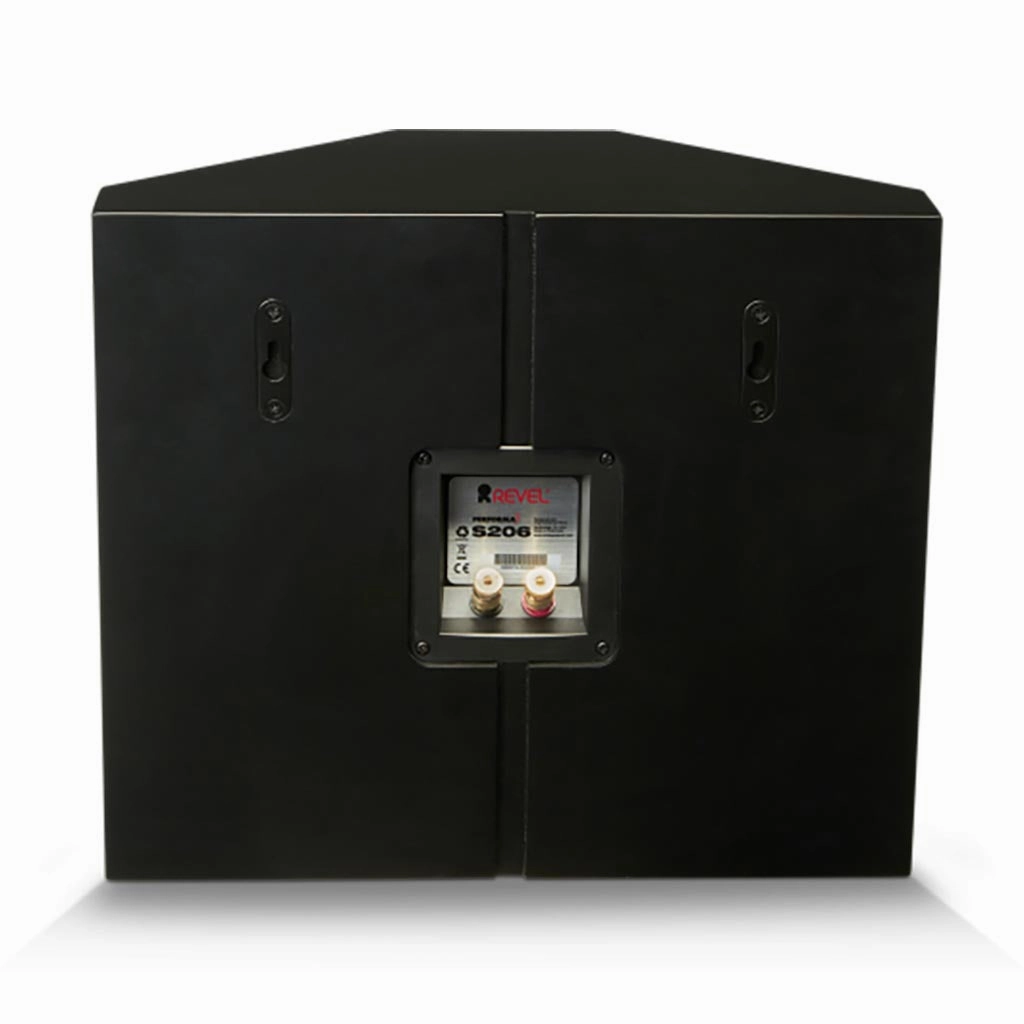

Revel Performa3 S206 Surround Loudspeaker

The speakers two sets of transducers operate in a bi-polar configuration, which maximizes the speakers timbre match with that of other Revel Performa3 speakers and further integrates the entire systems sound into a spacious, enveloping surround-sound environment.

The S206 tweeters feature an integrated acoustic lens waveguide that is based on a breakthrough mathematical approach that accurately matches the tweeters dispersion to that of the low-frequency transducers in the crossover region. This gives the loudspeaker very smooth sound far off-axis an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area.

Features

• Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation
• Ribbed aluminum cones achieve piston like behavior eliminating major sources of resonance
• New waveguides provide consistent sound over a wide listening area
• Enclosures created by Italian luxury cabinetmakers
• Fluid-model port designs keep distortion low
• Advanced crossovers optimize timbre accuracy both on-axis and throughout the room

Specifications

Enclosure type: Sealed
High-frequency driver: 1" aluminum tweeter with Acoustic Lens Waveguide
Low-frequency drivers: 2 x 6.5" aluminum cone, cast frame
Low-frequency extension (-10 dB, -6 dB, -3 dB):52 Hz, 58 Hz, 65 Hz
Crossover frequency:1.4 kHz
Nominal impedance: 8 Ohm
Sensitivity: 89 dB
Dimensions (HWD): 13.5" x 15.8" x 8.5"
