Tannoy Revolution XT C
Tannoy has been steadily refining a notable design for decades and has achieved some remarkable results, especially in terms of the faithful reproduction of instrumental and vocal sonorities.

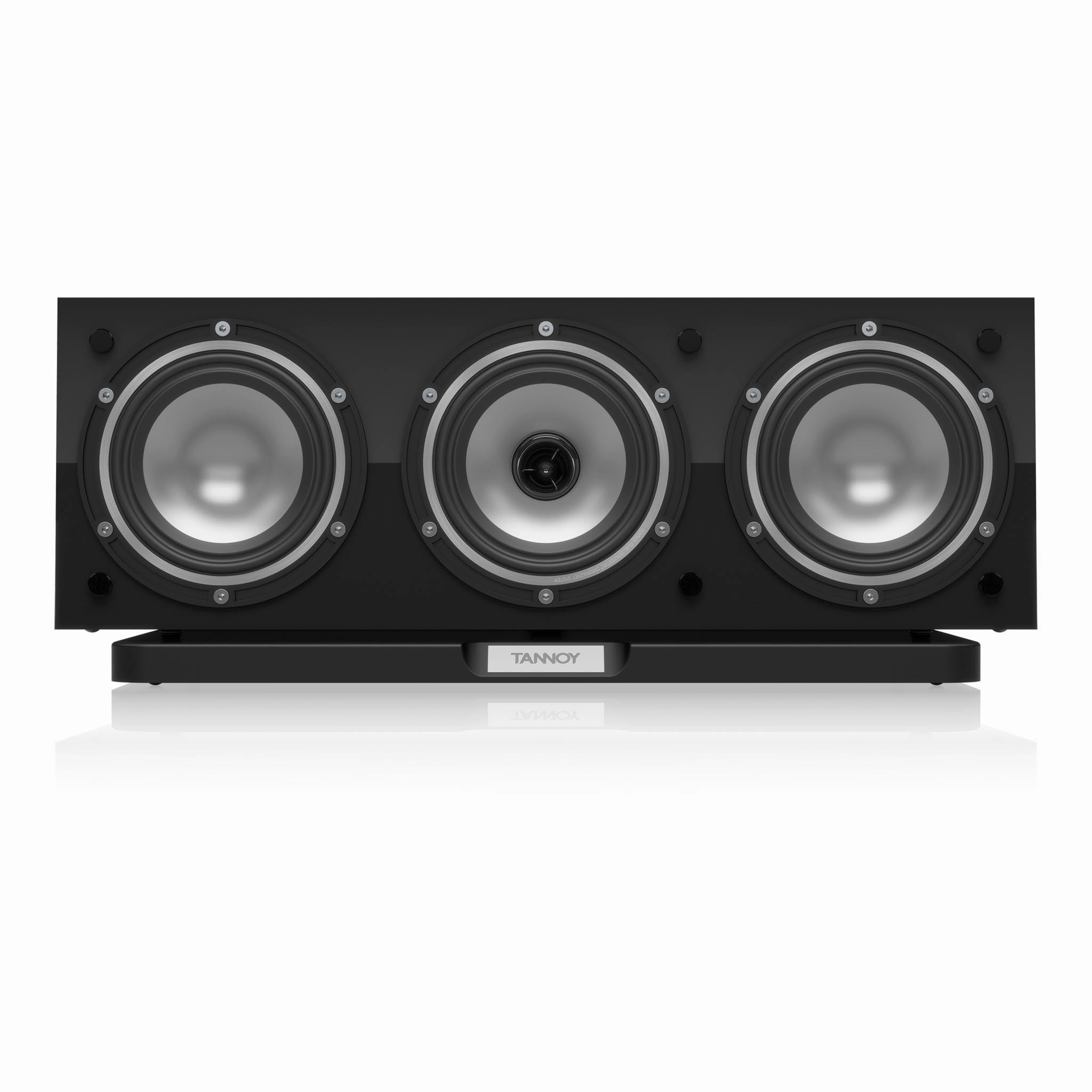

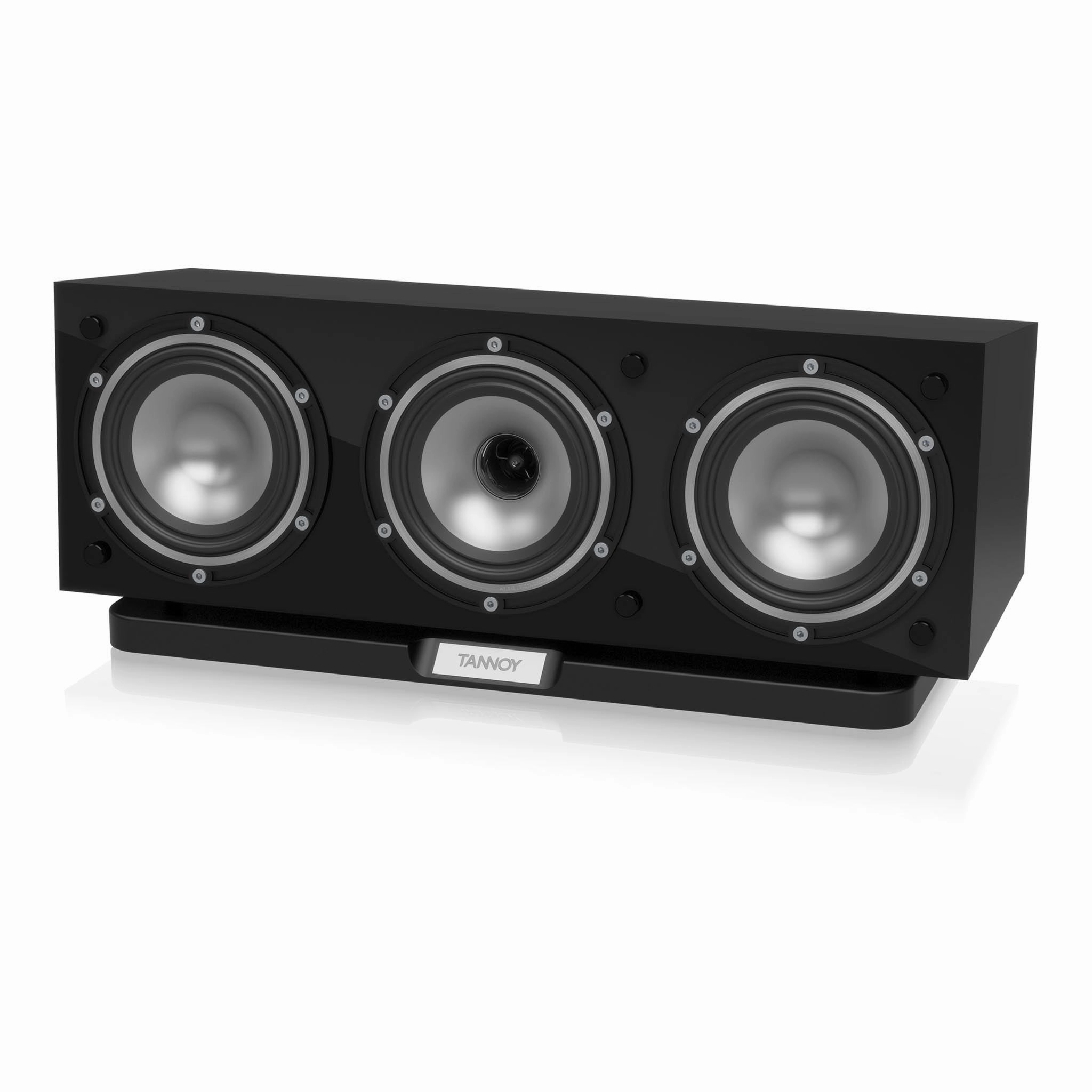

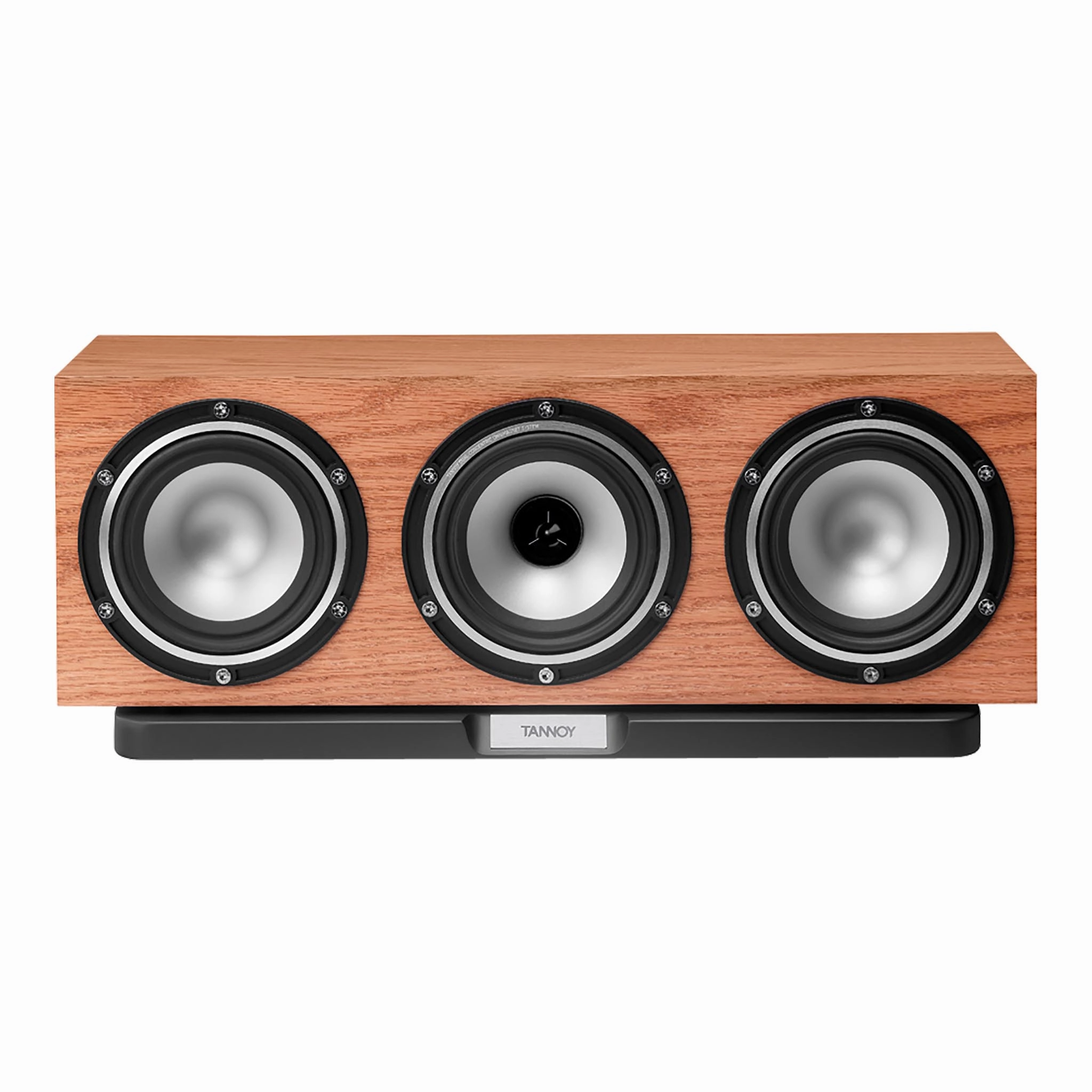

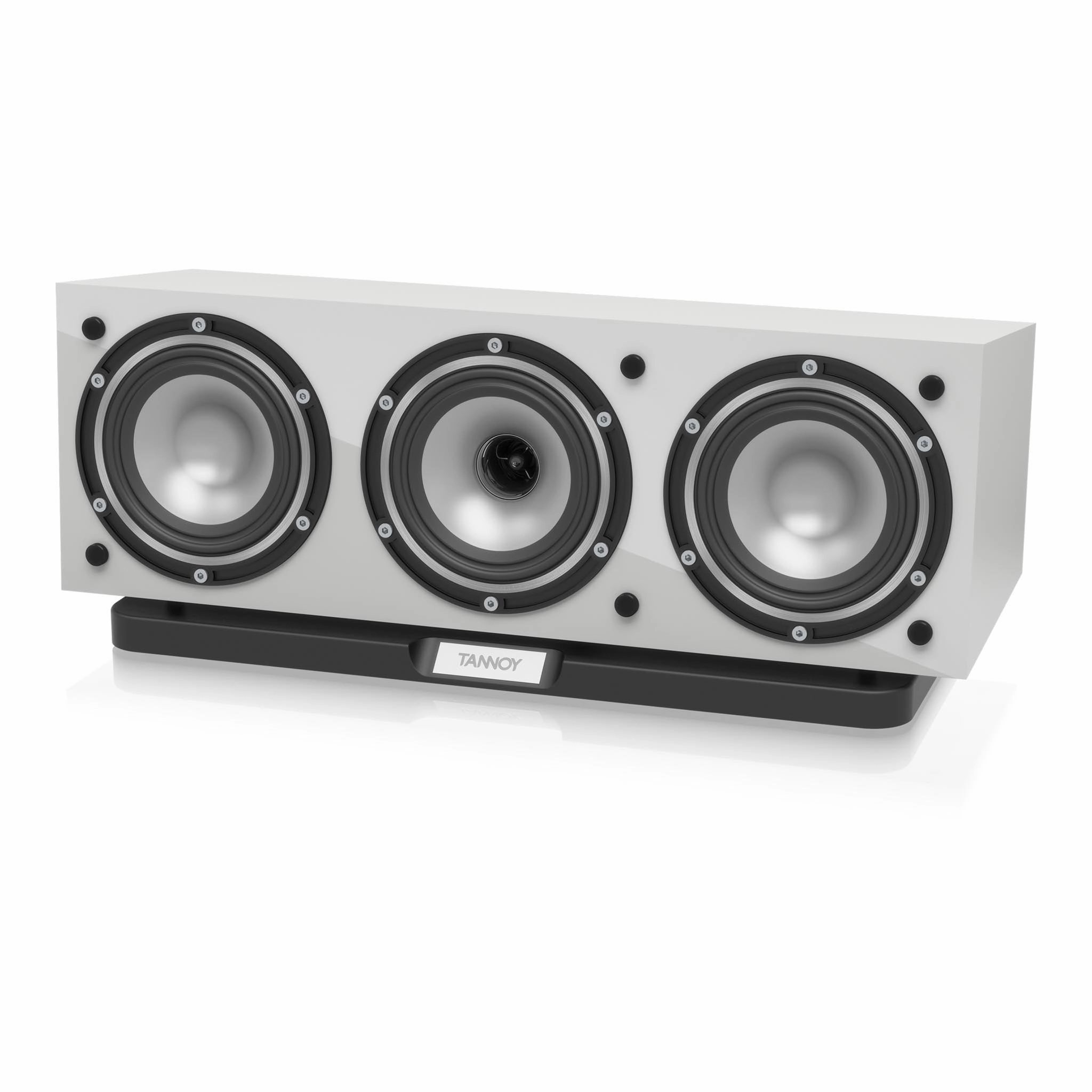

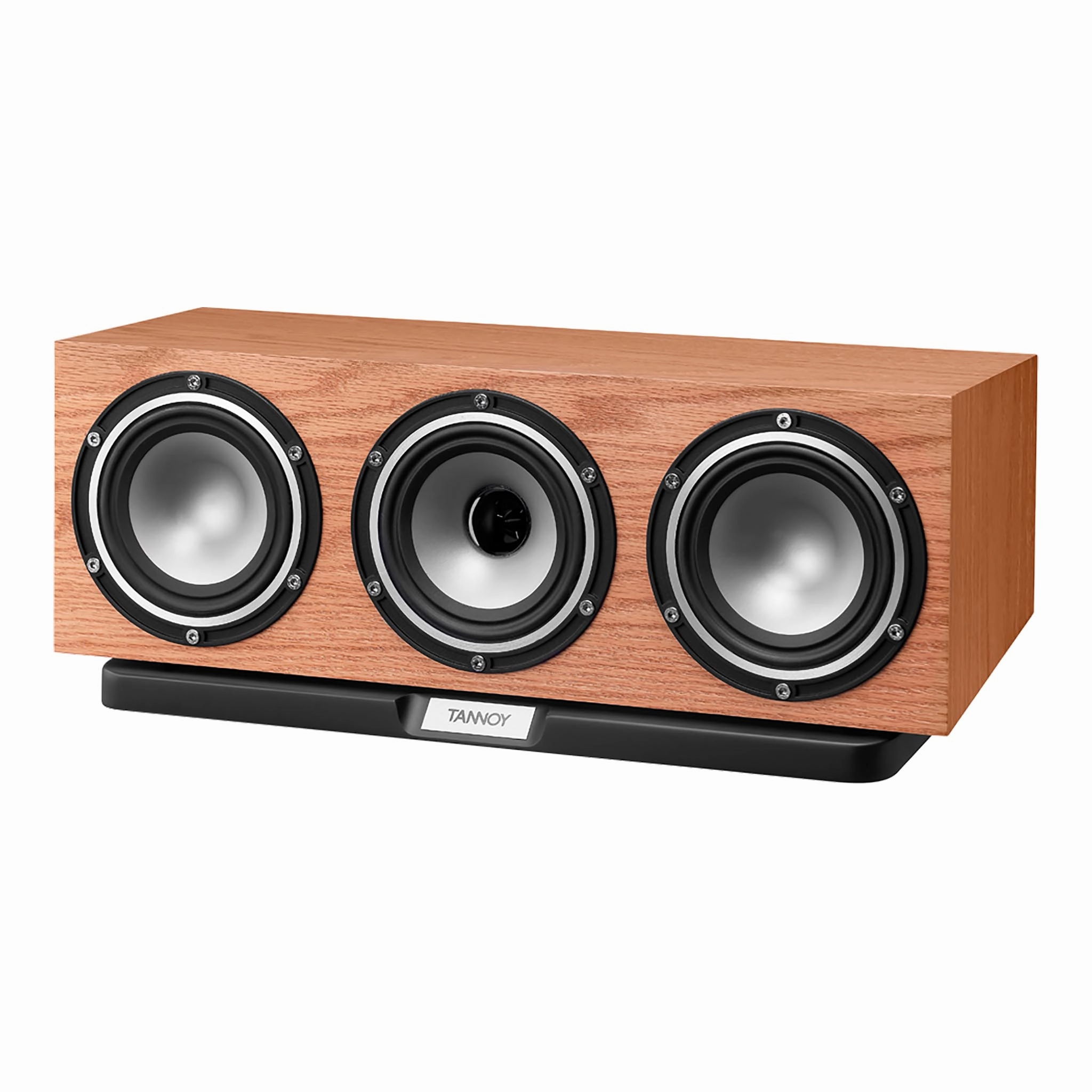

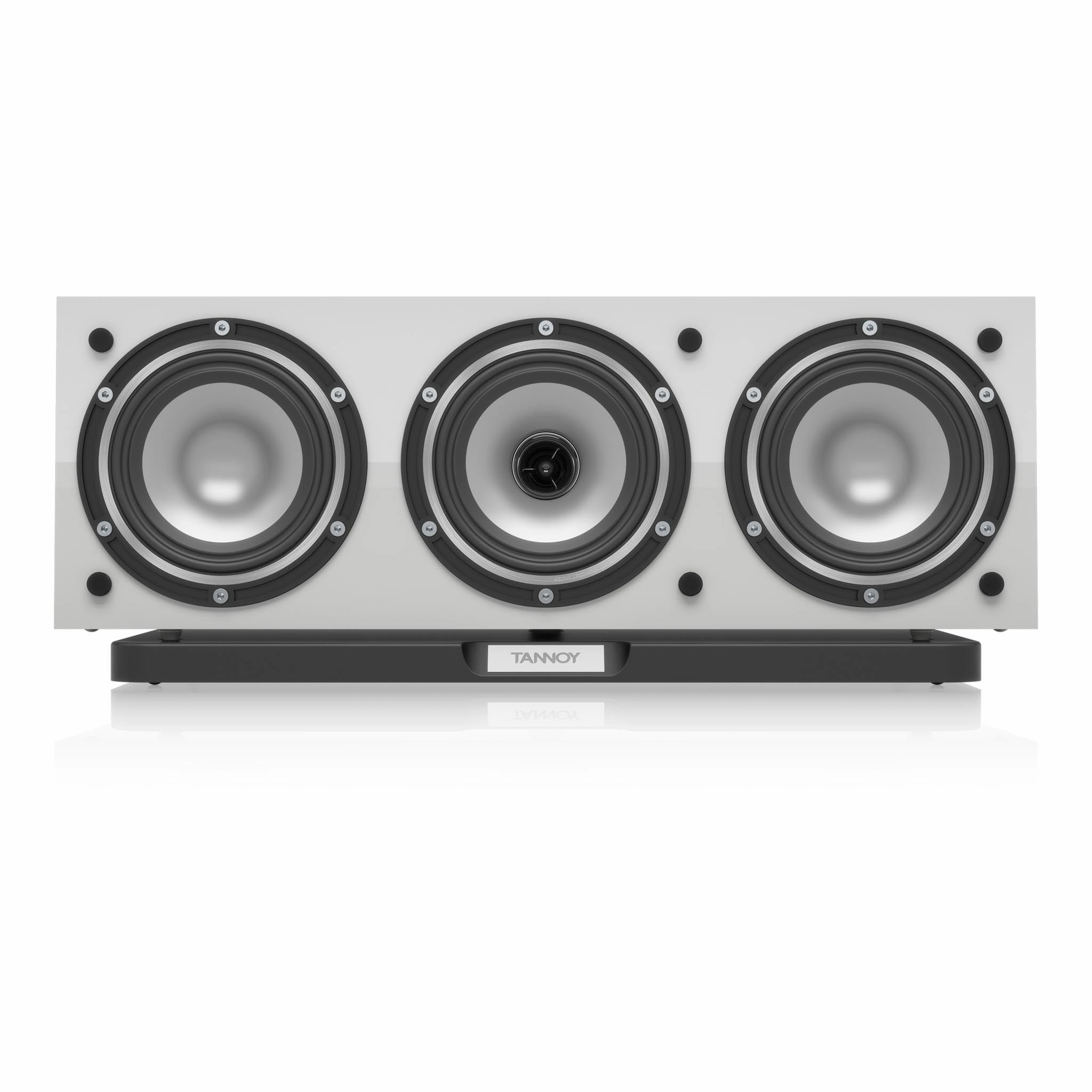

The Omnimagnet dual is augmented with twin 100 mm (4 inch) mid/bass drivers to deliver deep bass reproduction down to 62 Hz, bringing authentic presence to movie dialogue.

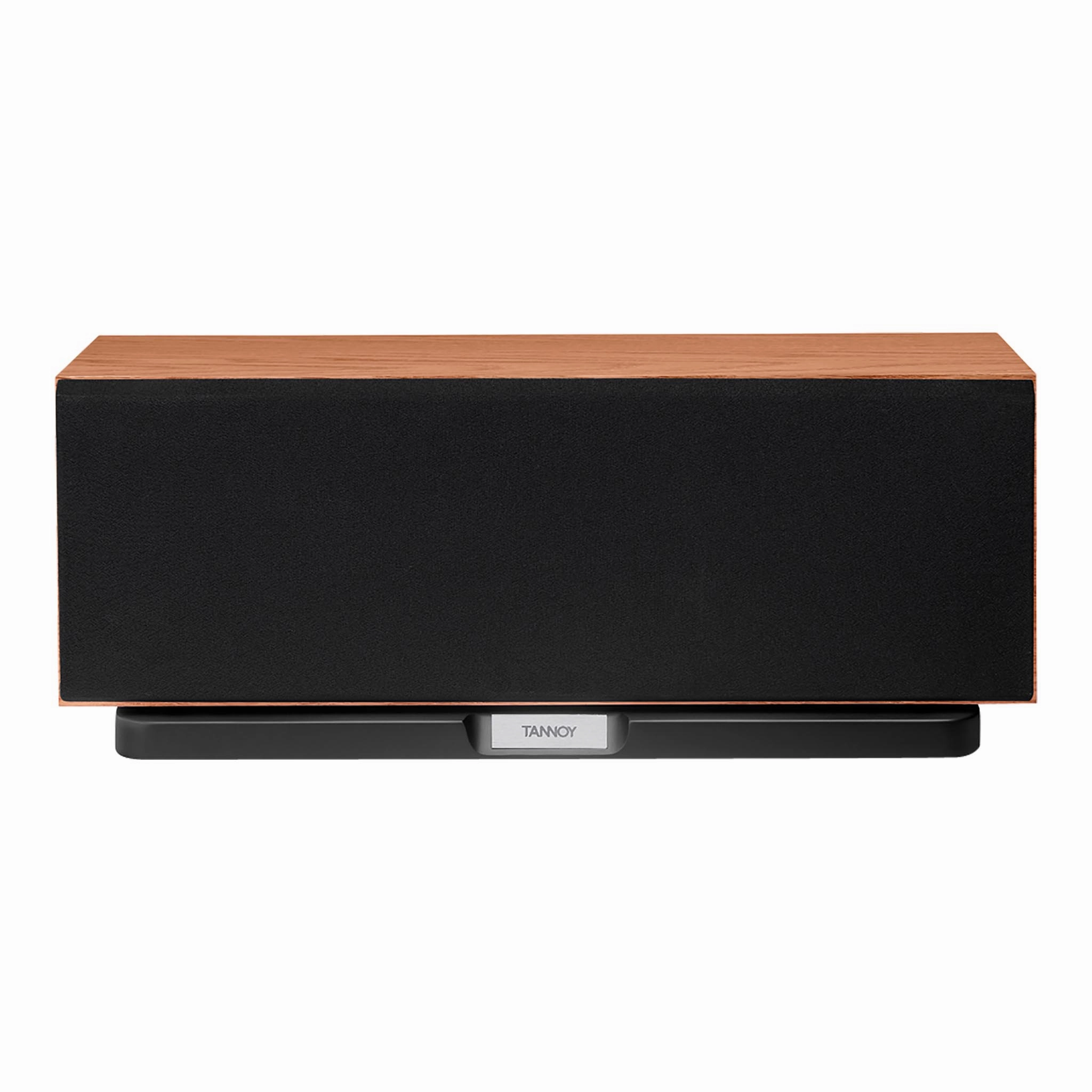

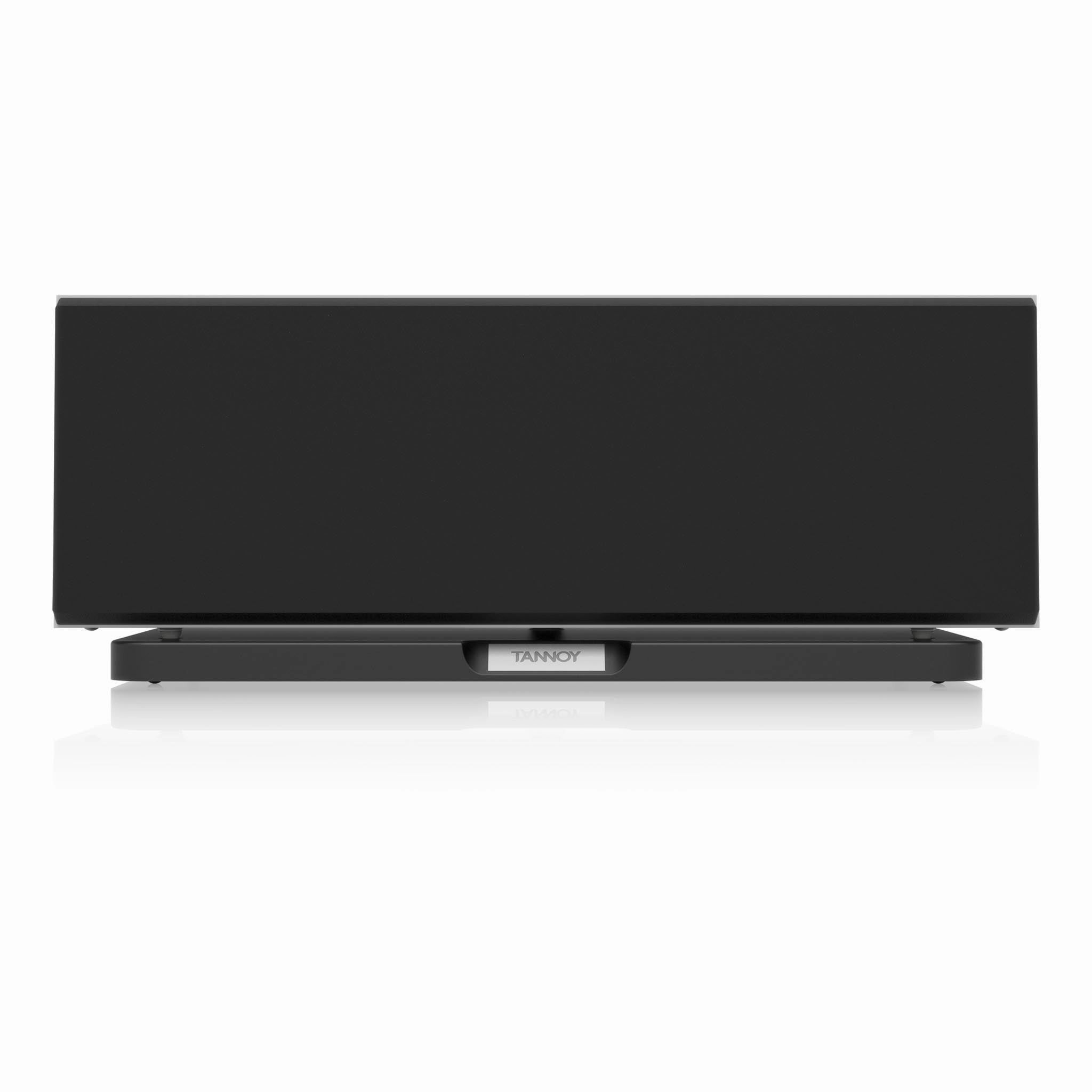

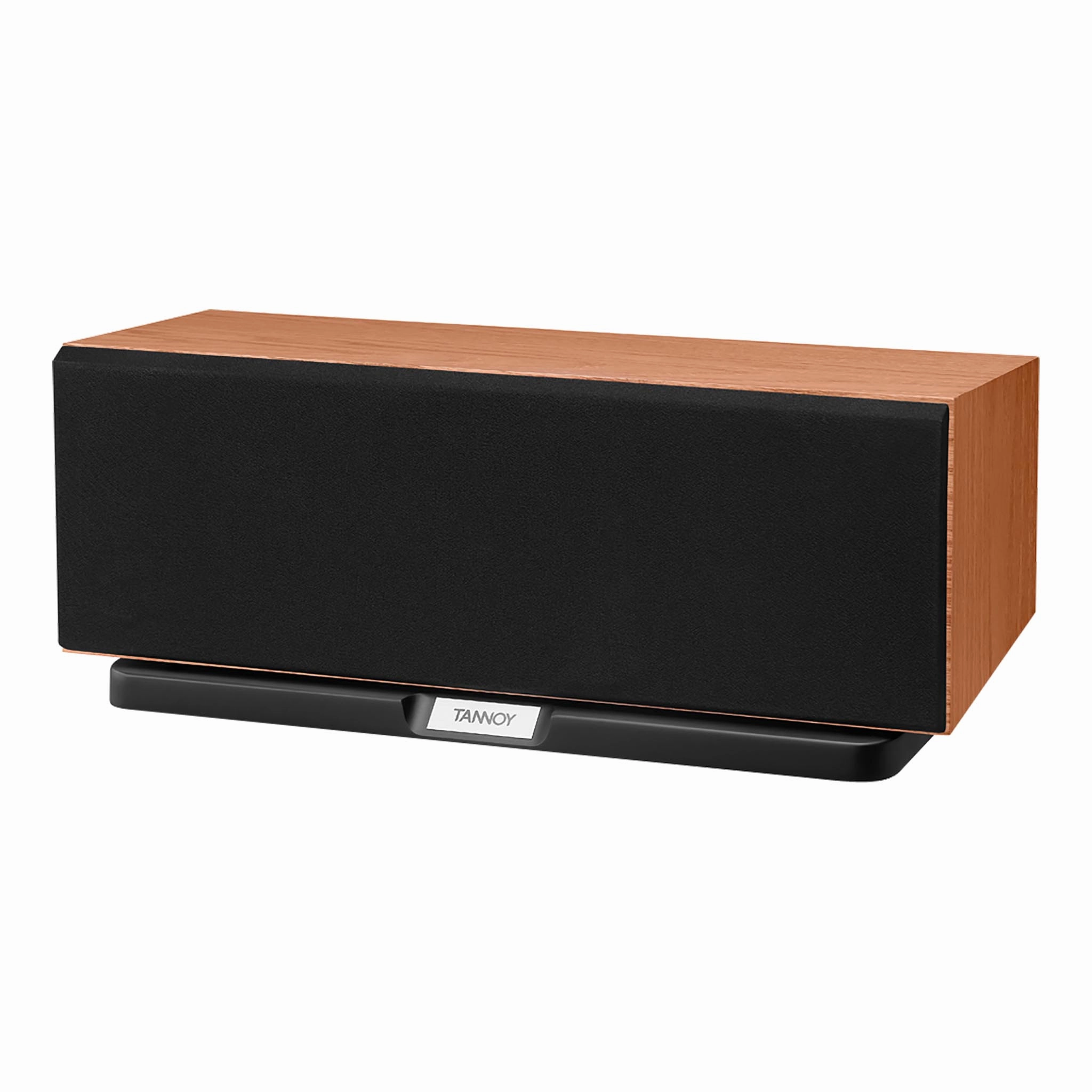

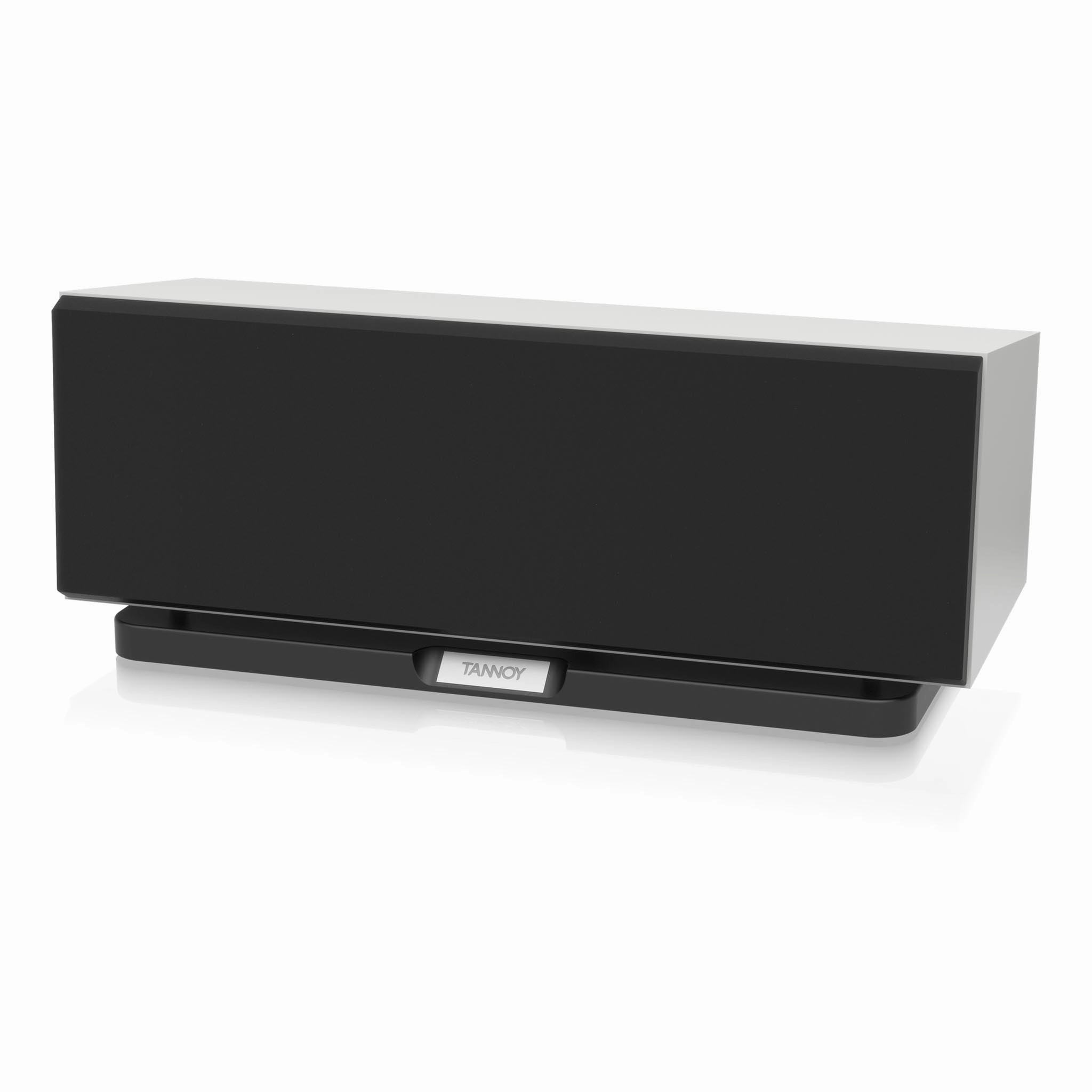

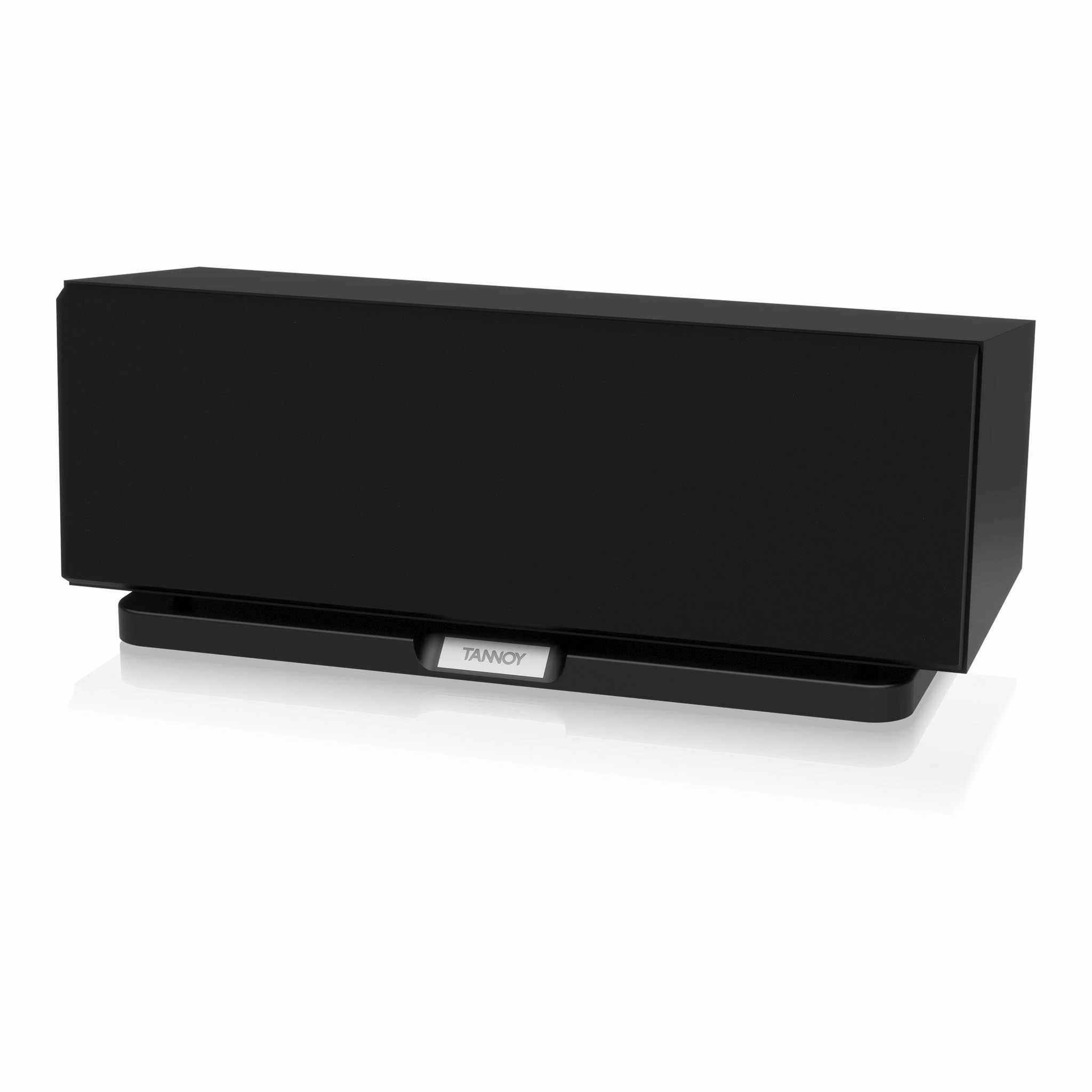

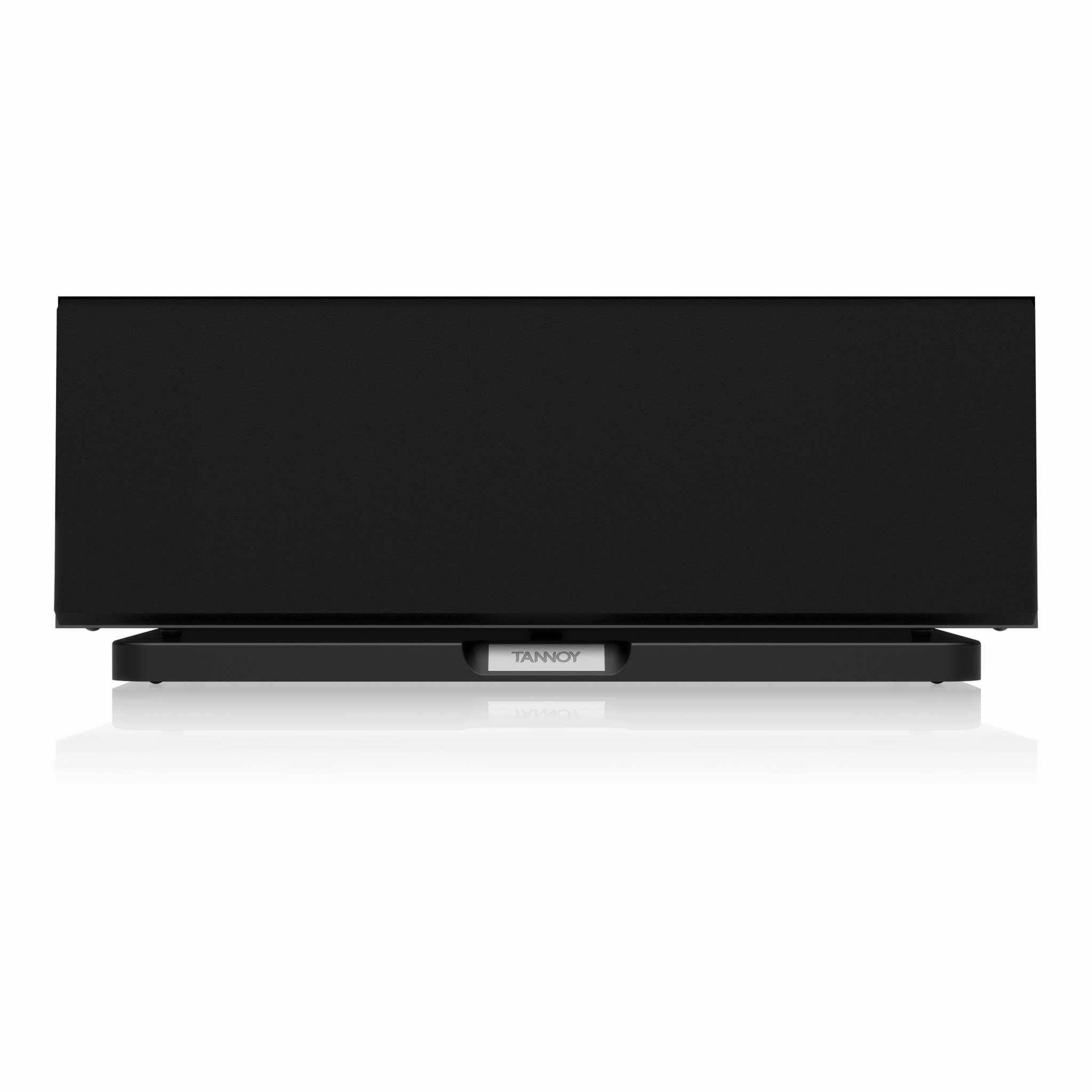

The compact 7.6 litre XT C cabinet utilizes the low colouration trapezoid shape that defines the Revolution range, with extensive bracing to further enhance accuracy across the audio band. A unique variation on the XT-series plinth has been designed specifically for the XT C, allowing the speaker to be angled low, mid or high depending on its placement relative to the listener. The three-point contact with the speaker provides stable support whether the XT C is placed below or above a TV screen or directly behind an acoustically transparent projection screen.
Specifications
Recommended Amplifier Power: 25 - 120 W
ContinuousPower Handling: 60 W
Peak Power Handing: 240 W
Sensitivity (2.83 V @ 1 m): 89 dB
Nominal Impedance: 8 Ohm
Frequency Response (-6 dB): 62 Hz - 52 kHz
Drivers: Dual Concentric High Frequency (20 mm (0.79") Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology), Dual Concentric Low Frequency (100 mm (4) multi-fibre paper 35 mm (1.38) voice coil)
CrossoverFrequency: 2.8 kHz
Crossover Type: Passive low loss 2nd order low pass, 1st order high pass

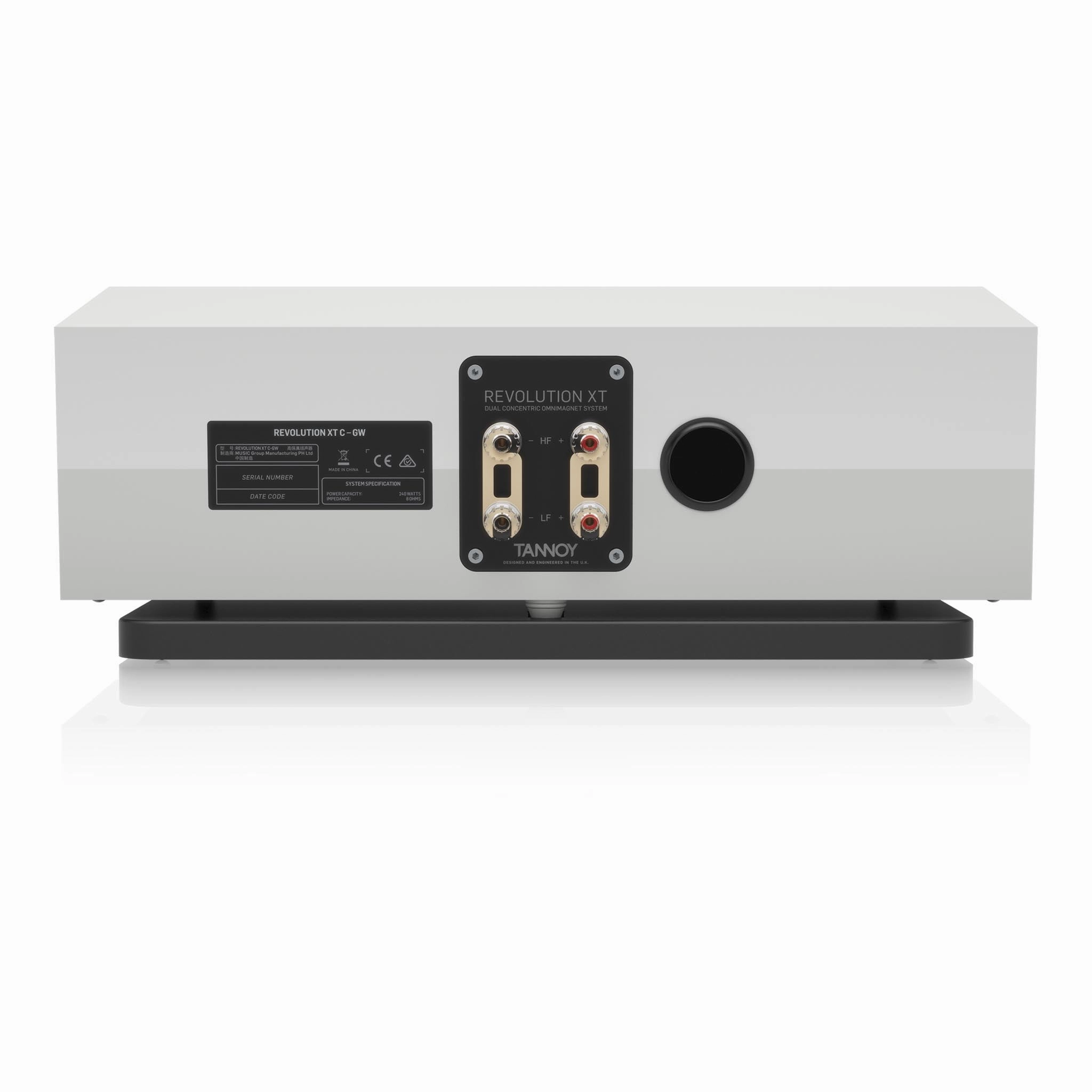

Enclosure Type: Rear ported reflex
Volume: 7.6 l (0.27 cu. ft.)
Dimensions: 6.9" x 17.7" x 8.09" (176.9 x 450 x 205.6 mm)
Weight: 7.9 kg (17.5 lb)
